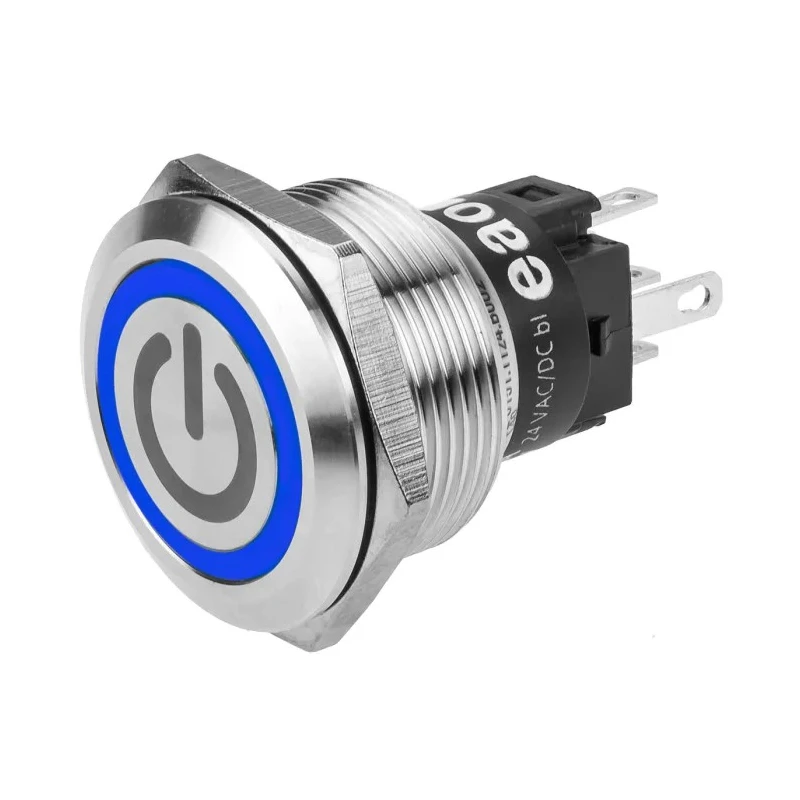

EAO Illuminated Latching Push Button Switch Panel Mount 22.3 mm Cutout SPDT Blue LED IP65 IP67 240 V AC/DC 82-6151.2123.B002

EAO 82-6151.2123.B002 Illuminated Latching Push Button Switch is a high-quality panel mount switch with a 22.3 mm cutout size. It features a single-pole double-throw (SPDT) contact configuration and blue LED illumination for enhanced visibility. Suitable for both AC and DC applications, it is rated for 240 volts and a contact current of up to 3 amperes.

The switch is designed for industrial, commercial, and public use where durability and reliability are paramount. It offers excellent protection against harsh environments with IP65 and IP67 ratings, making it resistant to dust and water ingress. The vandal-resistant, impact-resistant construction ensures suitability for exposed public areas such as ticketing and vending machines.

This model comes with gold-plated silver contacts for superior performance in low voltage and current applications, ensuring excellent tactile feedback and operational reliability. The actuator style is round, and the switch is equipped with a standby symbol legend for clear user understanding.

Operating temperature ranges from -30°C to 70°C, making it suitable for diverse environmental conditions. The switch is available in stainless steel anodized aluminum or brass-colored finishes, providing corrosion and acid resistance suitable for medical equipment, food industry, building management, and machinery control systems.

Reliable latching switch operation with illuminated blue LED for easy status indication. Panel mount type with precise 22.3 mm cutout dimension for secure fitting. Robust IP65 and IP67 ingress protection for use in demanding environments.

Impact resistant and vandal-proof design tailored for public and industrial use. Gold-plated silver contacts enhance performance in low voltage applications. Wide operating temperature range of -30°C to 70°C ensures durability.

Suitable for applications such as elevators, factory machinery, access control, and medical devices. Long service life with over 1 million mechanical operating cycles.

This EAO push button switch is ideal for industrial automation, electrical control panels, and exposed public facilities requiring reliable and illuminated push button controls. Explore more products in the Push Button Switches category at EnvMart for additional solutions.
