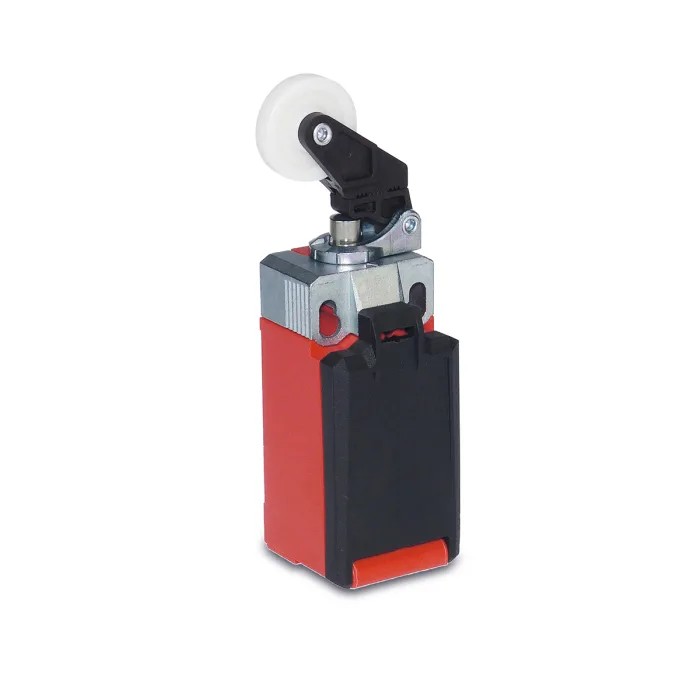

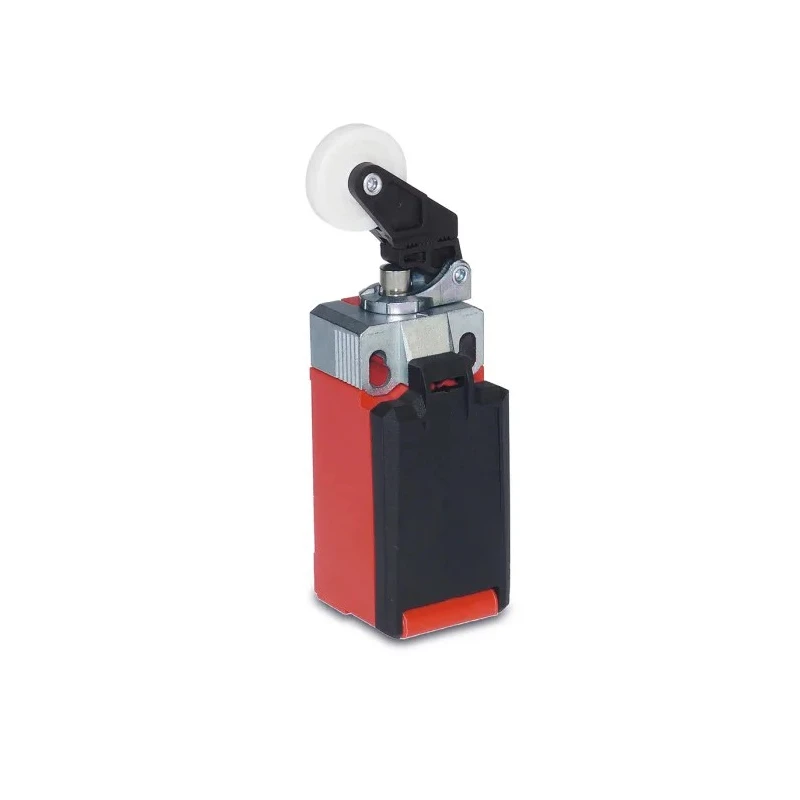

Bernstein AG IN65 Series Roller Lever Limit Switch, 1 NO/1 NC Contact, IP66 IP67 Rated, Fibreglass Reinforced 6083000229

Bernstein AG 6083000229 IN65 Series Roller Lever Limit Switch is an industrial-grade limit switch designed for position monitoring and safety applications in manufacturing, automation, electrical, and industrial environments. Featuring 1 normally open (NO) and 1 normally closed (NC) slow action contact, this switch provides precise and reliable operation with a switching current rating of 5 A.

The switch body is manufactured from fibreglass reinforced thermoplastic, combining the economic advantages of plastic with the mechanical robustness suitable for harsh industrial conditions. Its IP66 and IP67 ingress protection ratings ensure excellent resistance to dust and water ingress, making it ideal for demanding environments.

Engineered with a roller lever actuator type, the switch allows for tool-free adjustments with an adjustable lever mechanism supporting 8 x 45° repositioning increments. The mechanical life rating of up to 10 million switching cycles ensures extended durability and minimal maintenance requirements. The mounting orientation is via screws, featuring a metal actuator locking and mounting clip to enhance robustness.

The switch supports switching voltages up to 240 V AC and 24 V DC, operating efficiently within temperatures from -30°C to 75°C. It includes an M20 conduit entry, screw terminal connections, and complies with RoHS standards, ensuring suitability for safety facilities and position monitoring in a wide range of industrial applications.

Bernstein AG products are manufactured in Germany, adhering to stringent quality and environmental standards. This limit switch is particularly suitable for automation systems, industrial machinery, safety applications, and electrical control panels.

The switch actuator type is a robust roller lever for reliable operation. It supports a switching current of 5 A with slow action contacts. Designed for a wide operating temperature range from -30°C to 75°C. The housing material offers high mechanical stability and resistance to harsh environments.

Equipped with screw terminal connections and M20 conduit entry for secure wiring. Mechanical life up to 10 million cycles ensures long-term reliability. Mounting is done via screws with a compact dimension: length 31 mm, width 105.5 mm, and depth 30.3 mm.

This switch complies with RoHS standards and is made in Germany for quality assurance. Explore Bernstein AG and similar industrial Limit Switches on EnvMart for reliable automation and safety component solutions.
