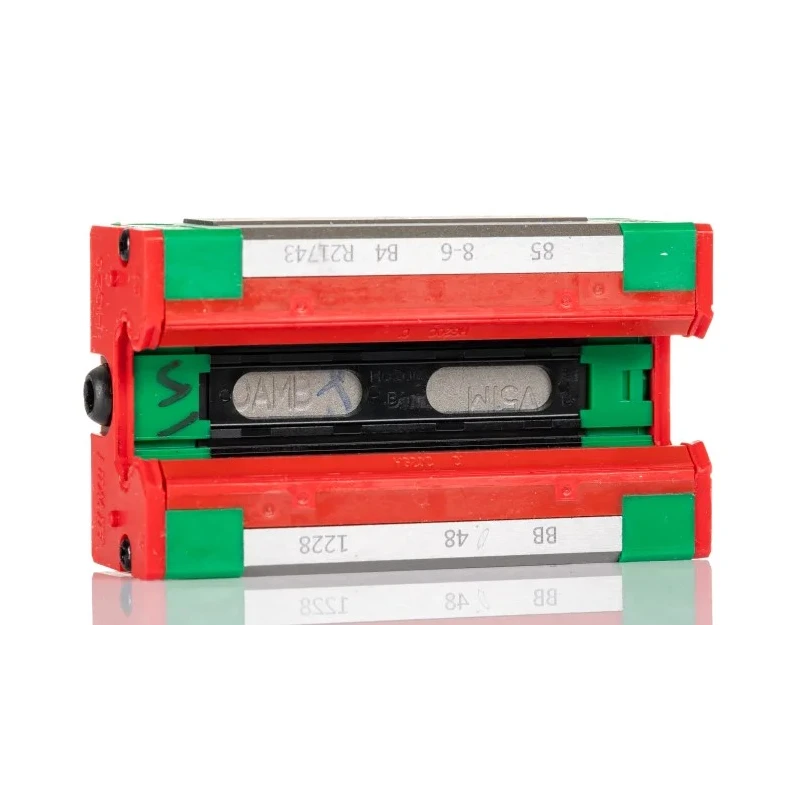

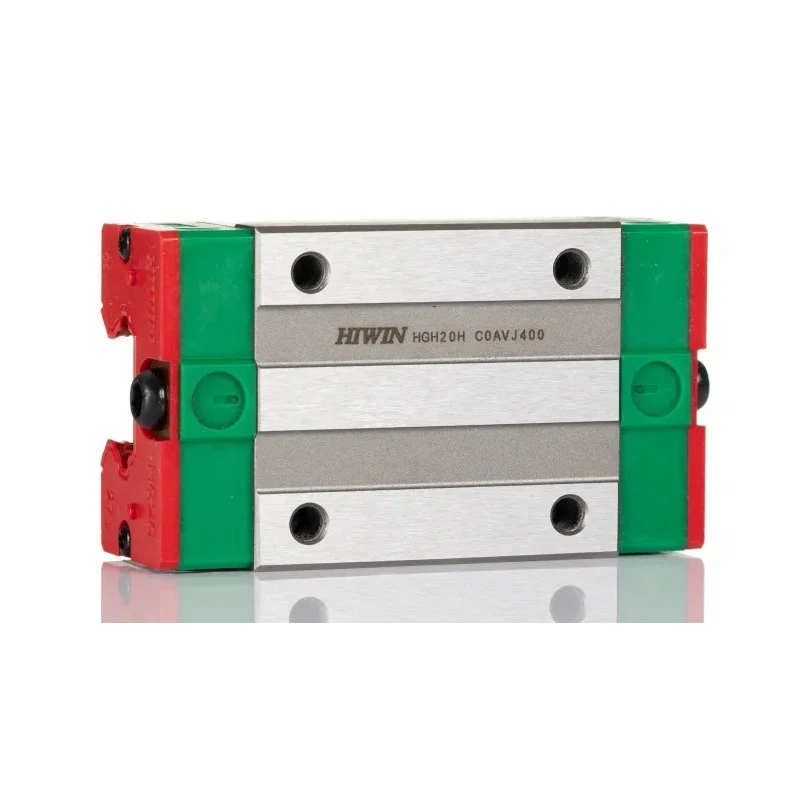

RS PRO Heavy Duty Linear Guide Block HGH Series 17750 N Dynamic Load 176-6690

RS PRO 176-6690 is a high-performance linear guide block from the HGH Series, tailored for industrial applications requiring high rigidity and load capacity. This guide block features a heavy-duty linear block design with a dynamic load rating of 17750 N, making it suitable for heavy mechanical equipment and manufacturing setups.

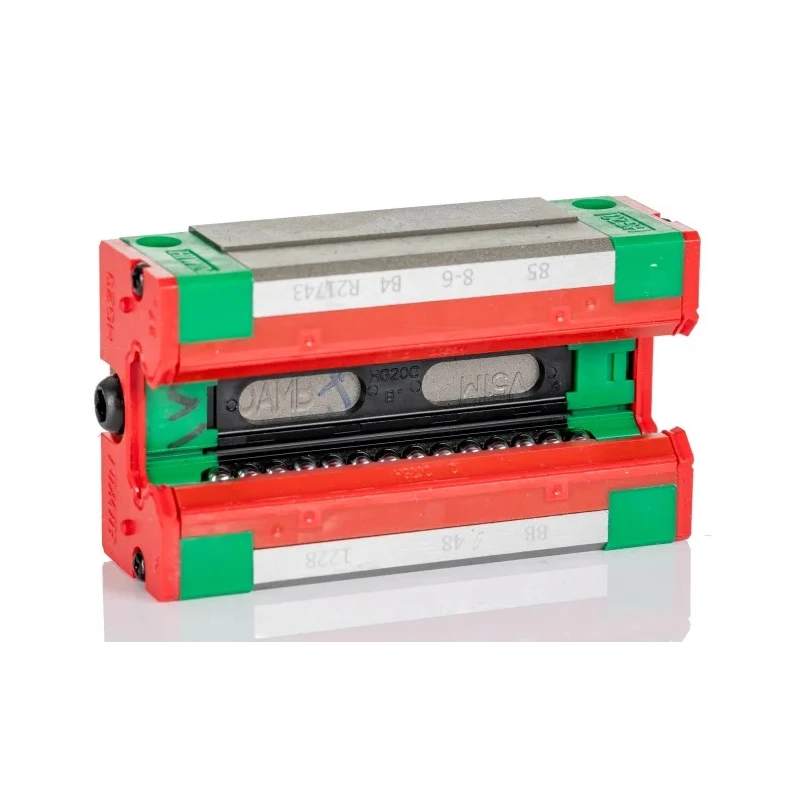

The guide block incorporates a ball circulation system utilizing four ball bearing paths. Specialized retainers ensure the ball bearings remain securely in place, preventing them from falling out, especially during installation when the block may be pulled off the rail. This design guarantees light running and smooth motion, enhancing operational efficiency.

With precise dimensions including a carriage length of 77.5 mm and a carriage width of 44 mm, it fits rails with an acceptable width of 20 mm. The static load rating of 27760 N underlines its capability to withstand significant loads, making it optimal for demanding industrial environments.

This linear guide block is engineered for use in mechanical, fluid power, and tooling applications where precision linear motion is critical. It is commonly employed in heavy machinery, manufacturing lines, and automation systems requiring robust and reliable guide components.

Ball circulation system ensures light running and smooth operation. Four ball bearing paths with retainers for secure bearing placement. Supports high loads with dynamic and static load ratings of 17750 N and 27760 N respectively.

Compatible with rails of 20 mm width for standard linear motion setups. Compact carriage dimensions enhance precision in guided motion. Manufactured in Taiwan, Province Of China, assuring quality standards. Designed for industrial mechanical, fluid power, and tooling applications.

Reliable linear guide block suited for heavy-duty use in automation and manufacturing.

Explore the RS PRO range for premium mechanical components and linear motion solutions suitable for industrial, laboratory, construction, and manufacturing operations. RS PRO products ensure durability and consistent performance in critical applications.
