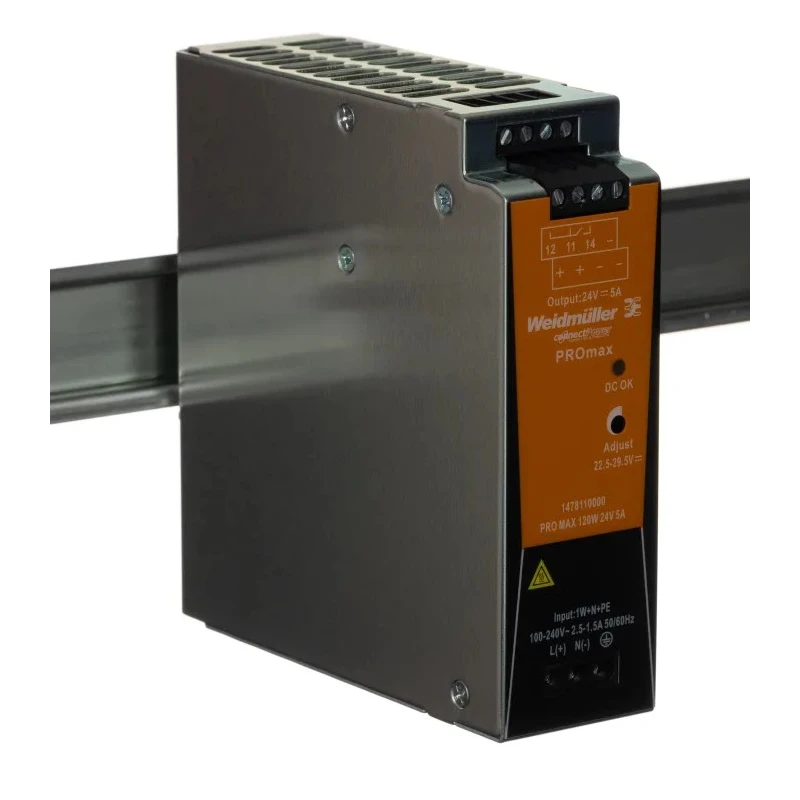

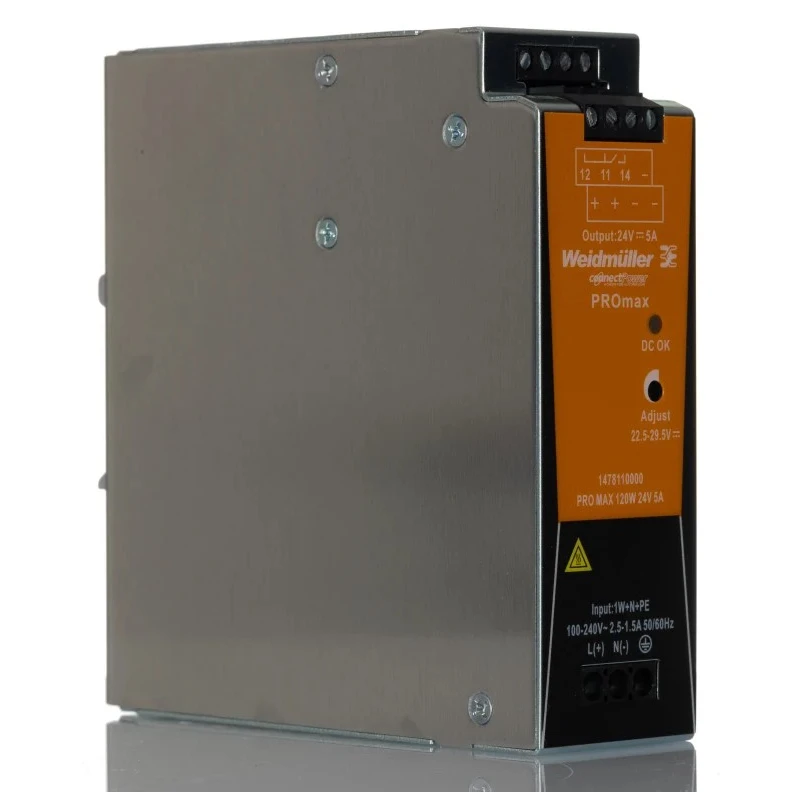

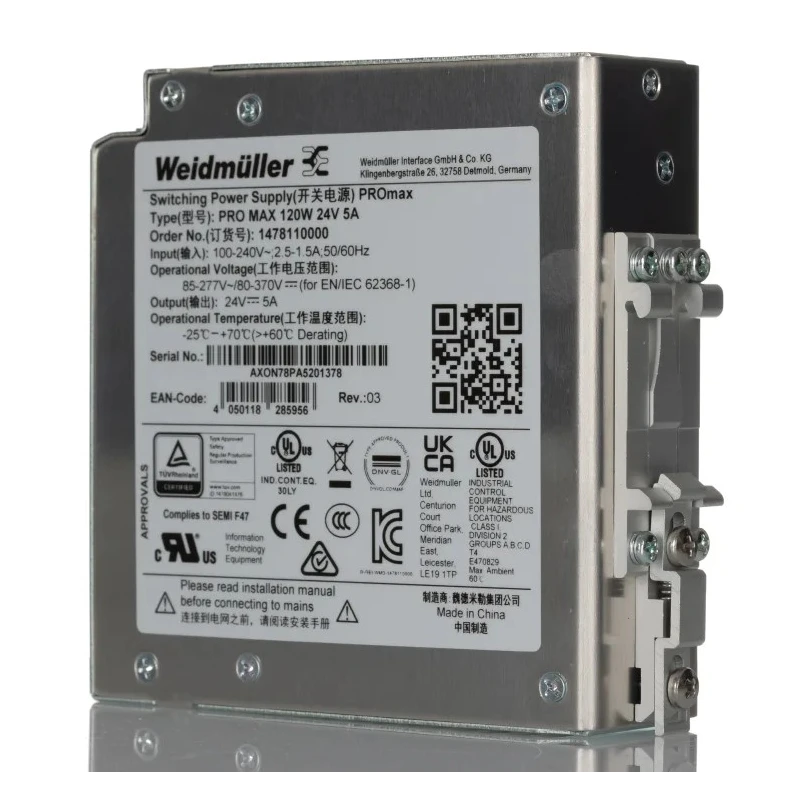

Weidmüller PRO Max Switched Mode DIN Rail Power Supply 264V AC/DC Input 28V DC, 5 A Output, 120 W 1478110000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Weidmüller |
| Power | 120W |
| Efficiency | 89% |
| Height | 130mm |
| Depth | 125mm |
| IP Rating | IP20 |
| Width | 40mm |
| Series | PRO Max |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Offers wide input voltage range from 85V AC to 264V AC and 80V DC to 370V DC for versatile use.
- Compact metal housing with corrosion resistance ensures durability in harsh environments.
- High efficiency of 89% minimizes energy loss and heat generation.
- Designed for industrial automation, automotive manufacturing, wind power, and mechanical engineering applications.
- Wide operational temperature from -25°C to +70°C for reliable performance under variable conditions.
- Includes comprehensive overload and short circuit protections for enhanced safety.
- LED indicator simplifies status monitoring during operation.
- Single output channel delivering stable and ripple-free 28V DC power with less than 50mV noise.
Product Description
Weidmüller 1478110000 PRO Max series switched mode DIN rail power supply delivers reliable power conversion with a maximum output voltage of 28V DC and output current capacity of 5 A, rated at 120 W. Designed for single-phase electrical systems, this power supply supports AC/DC input voltages ranging from 85V AC to 264V AC and 80V DC to 370V DC, making it highly adaptable to different industrial power sources.
The device features a robust metal housing that resists corrosion and is rated IP20 for basic protection against foreign objects. With operating temperatures between -25°C and +70°C, it is suitable for demanding industrial environments including industrial automation, automotive manufacturing, wind power generation, and mechanical engineering.
Efficiency is rated at 89%, minimizing power wastage and heat generation, thereby enhancing overall energy savings and operational reliability. The power supply is equipped with advanced overload and short circuit protections to safeguard connected equipment. A built-in LED indicator provides real-time status monitoring to ensure safe and efficient operation.
The unit’s low ripple and noise (.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this power supply is 28V DC.
This model has an output current capacity of 5 A.
It supports an input voltage range from 85V AC to 264V AC and 80V DC to 370V DC.
The efficiency of this unit is rated at 89%.
The dimensions of this model are 130mm in height, 125mm in depth, and 40mm in width.
It operates within a temperature range of -25°C to +70°C.
It includes overload and short circuit protections for enhanced safety.
The IP rating of this unit is IP20, providing basic protection against foreign objects.
This model has a single output channel.
It is designed for use in industrial automation, automotive manufacturing, wind power generation, and mechanical engineering.
The country of origin for this model is India.
This unit operates on a single-phase electrical system.
