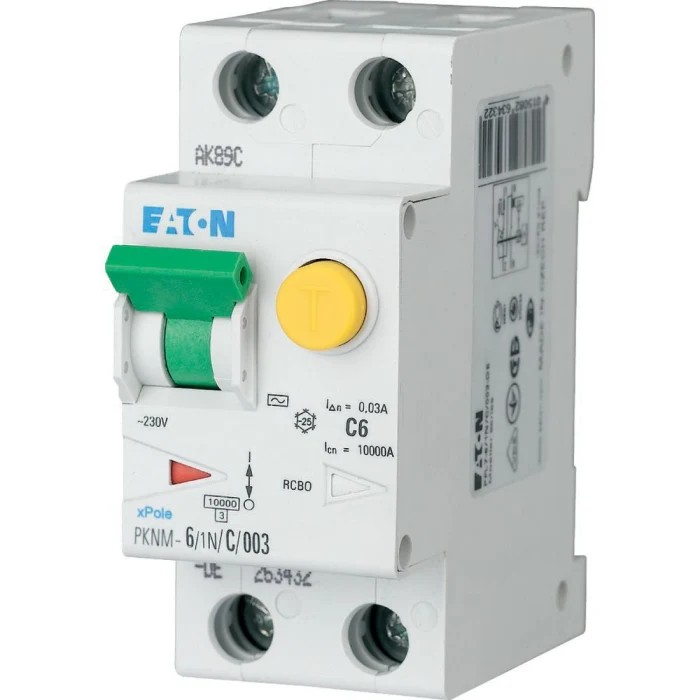

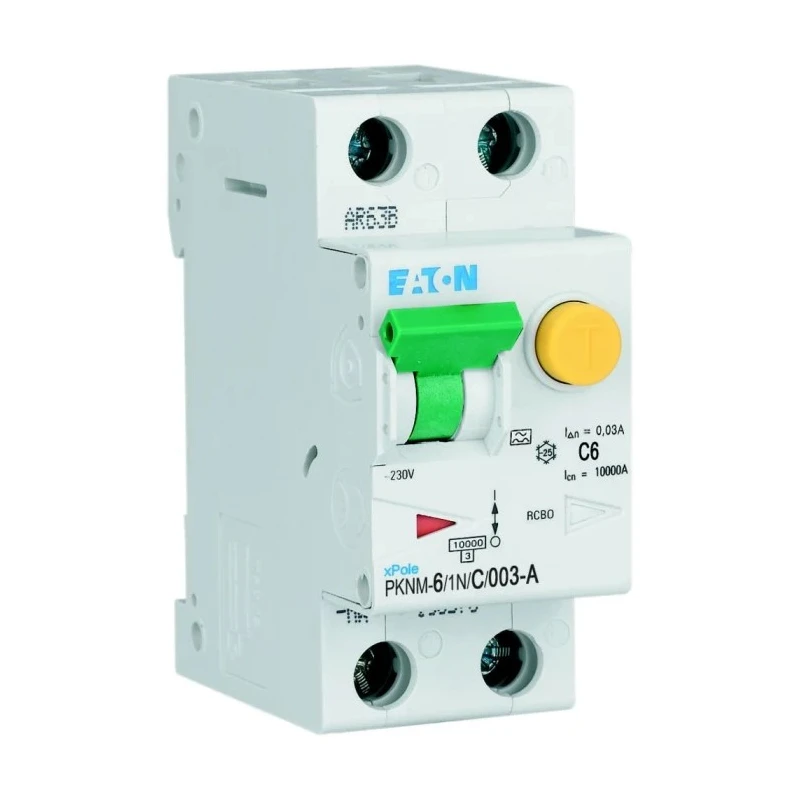

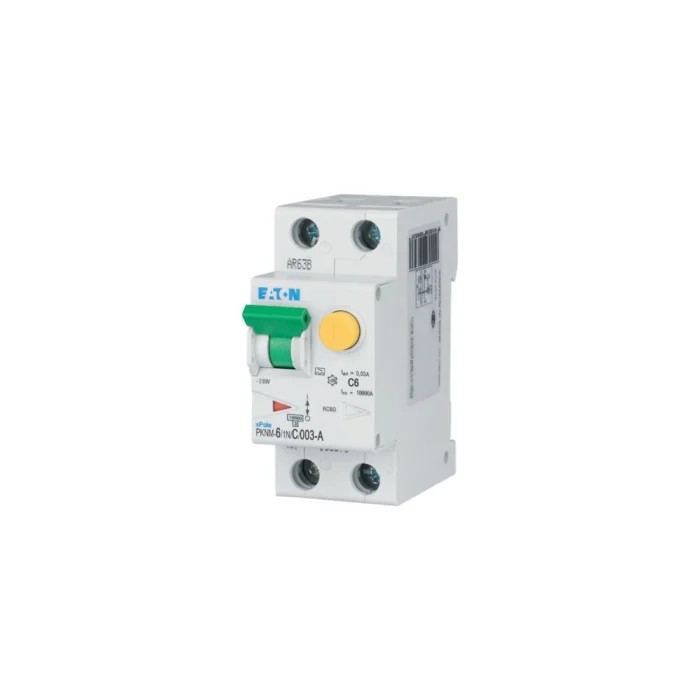

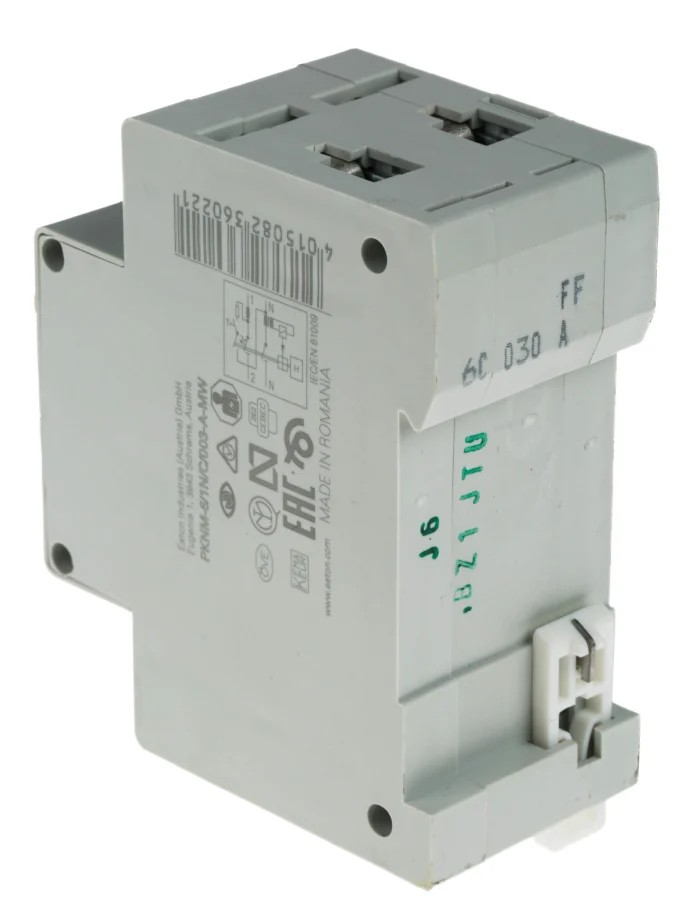

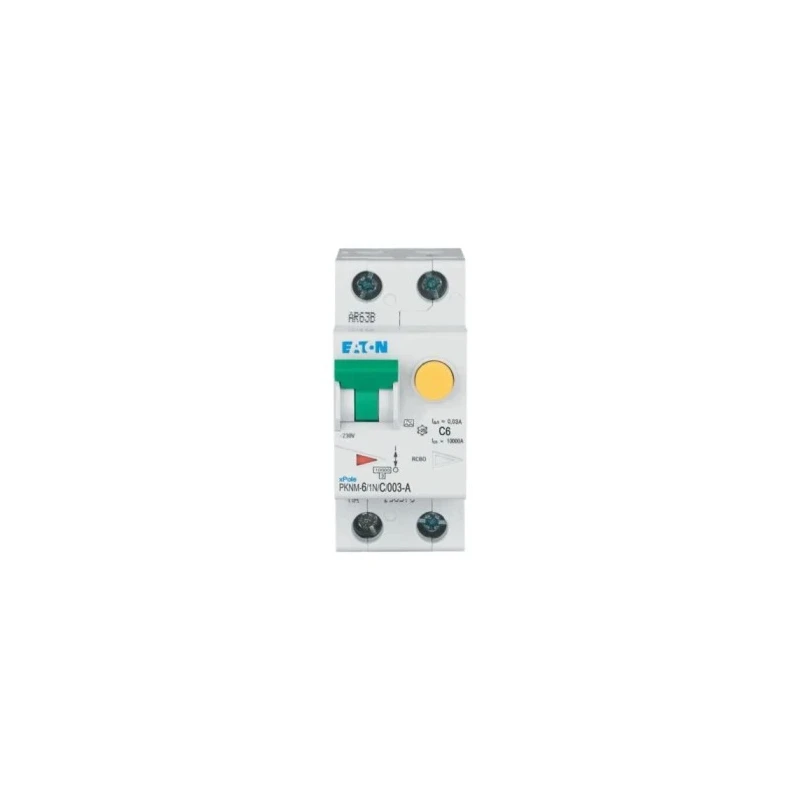

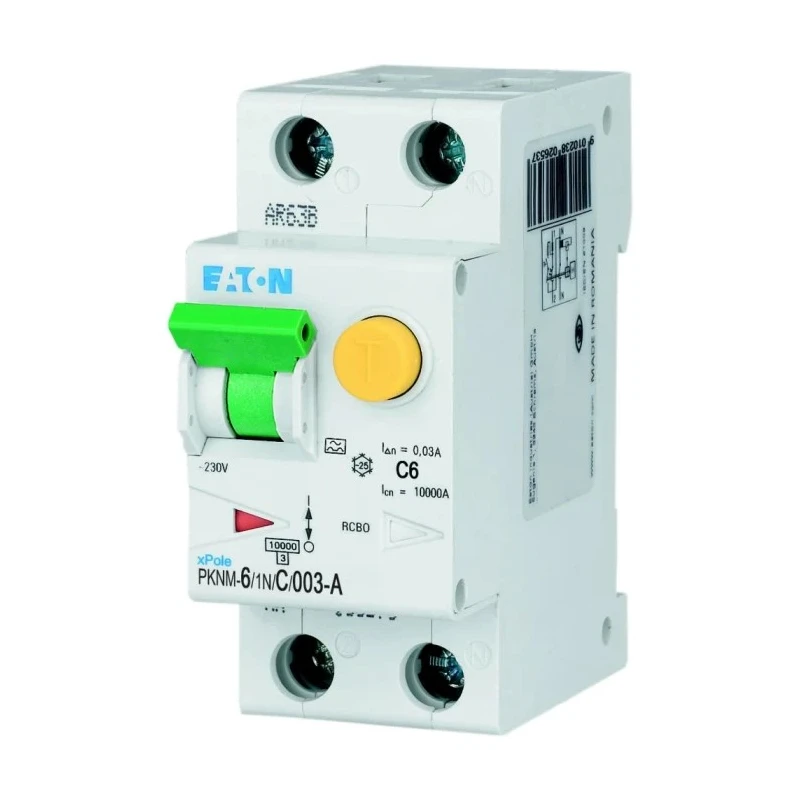

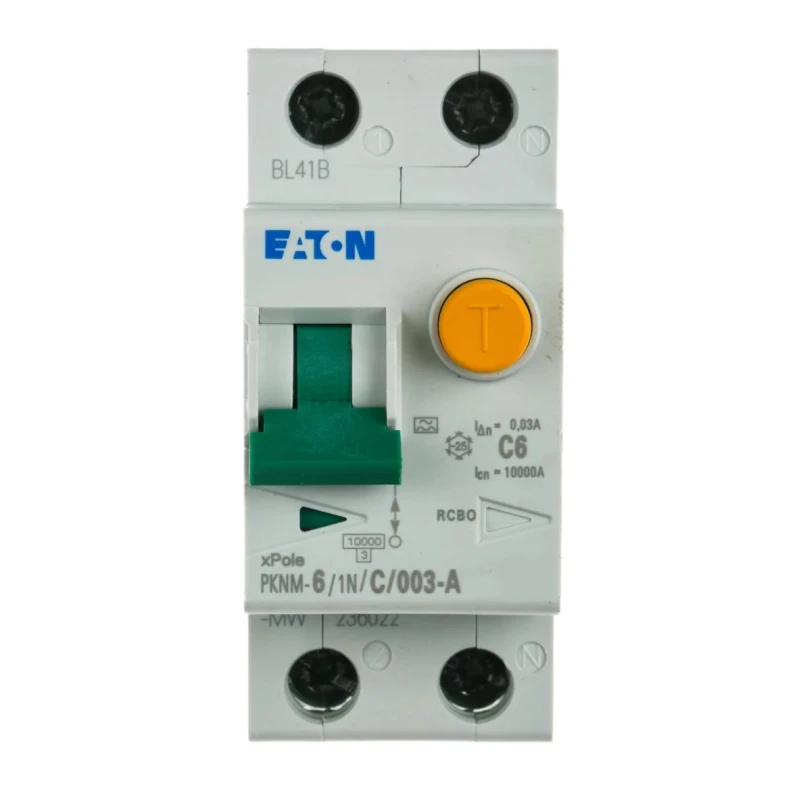

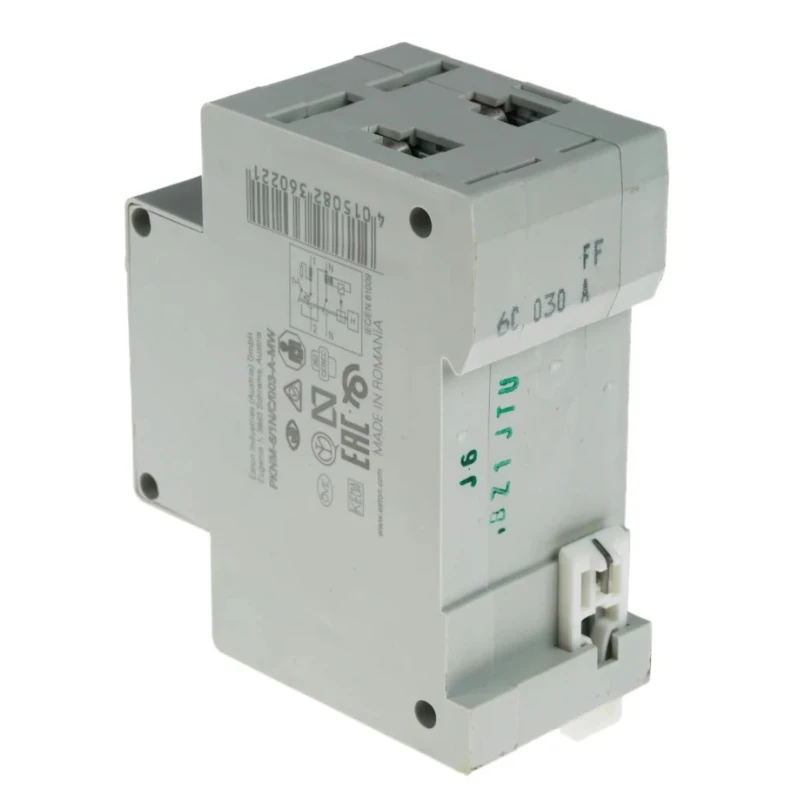

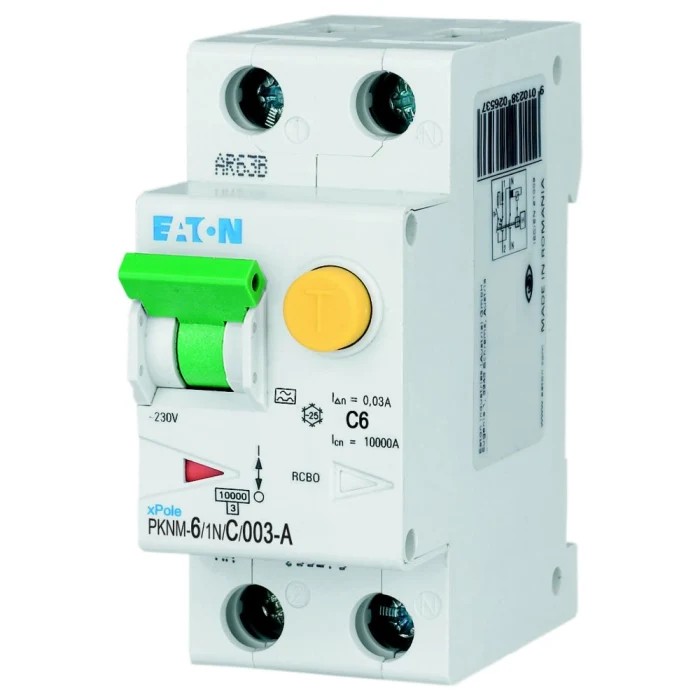

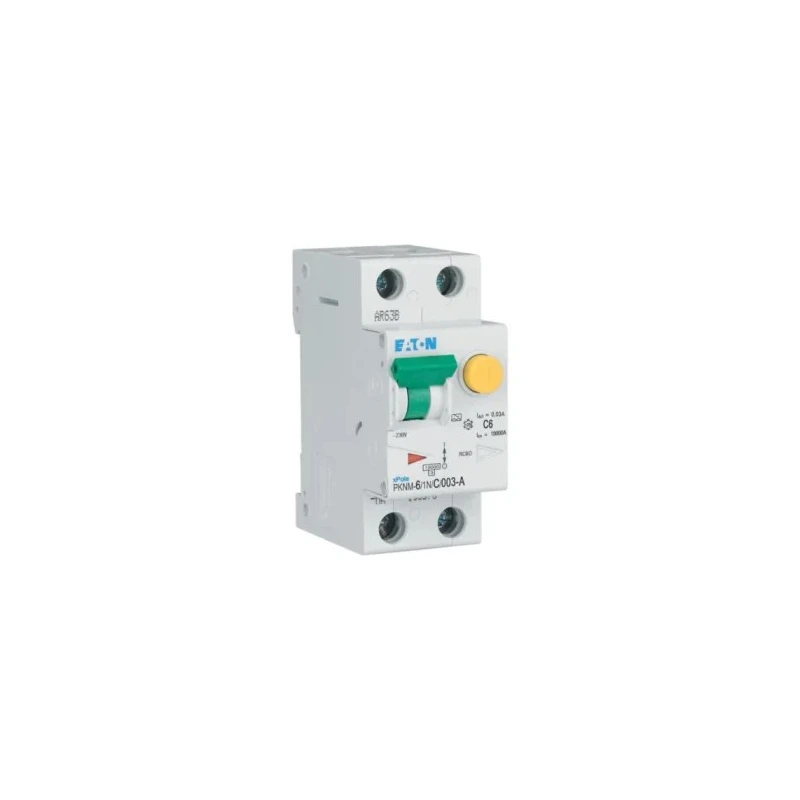

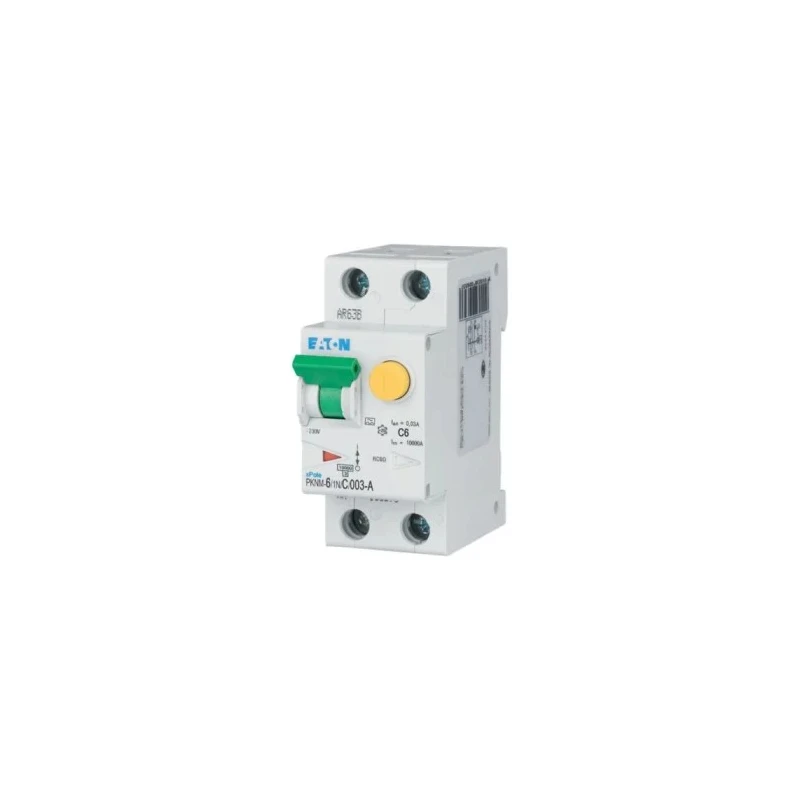

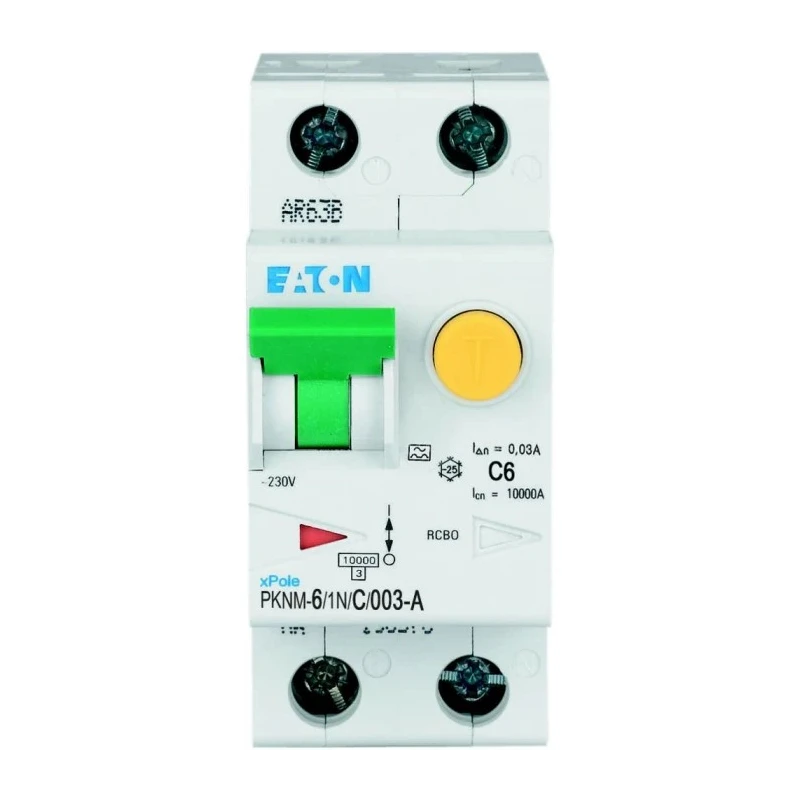

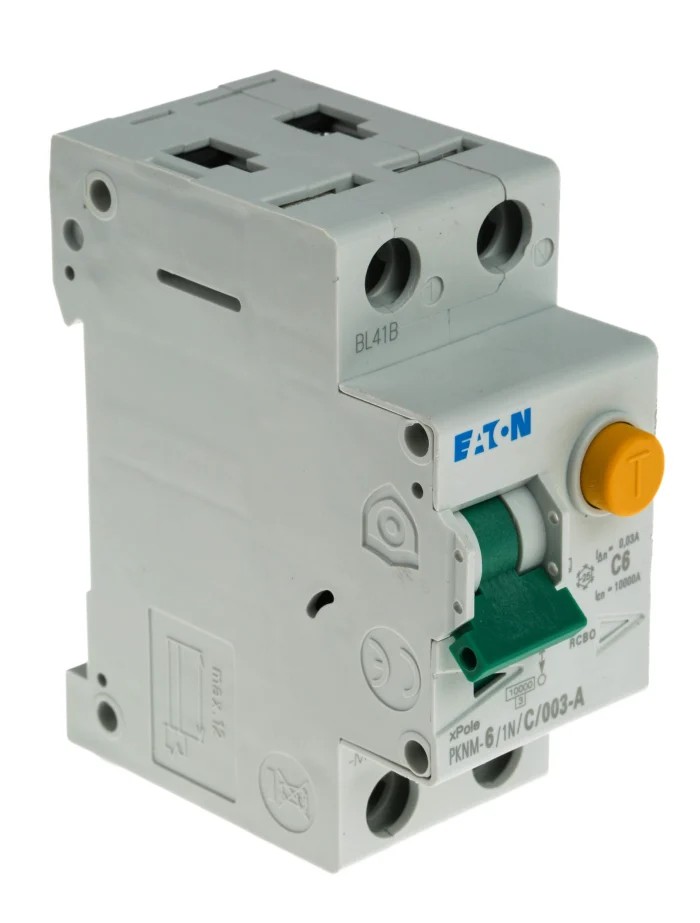

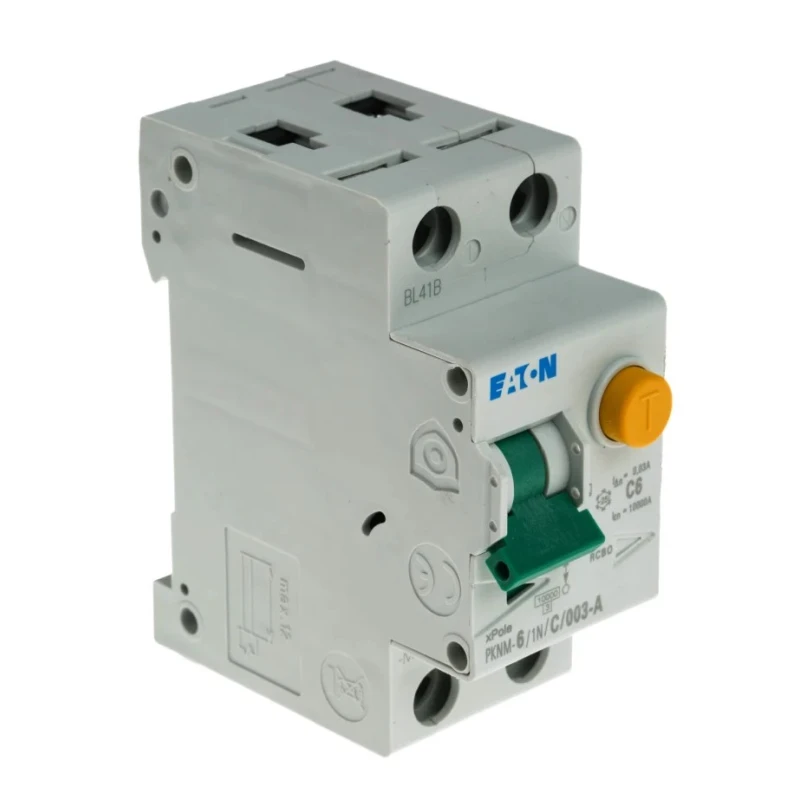

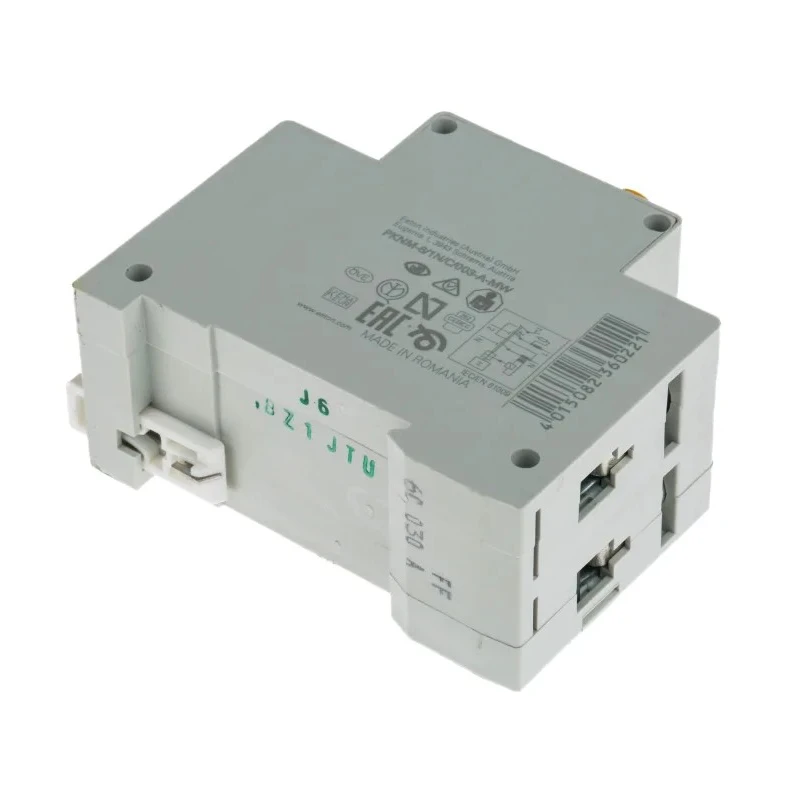

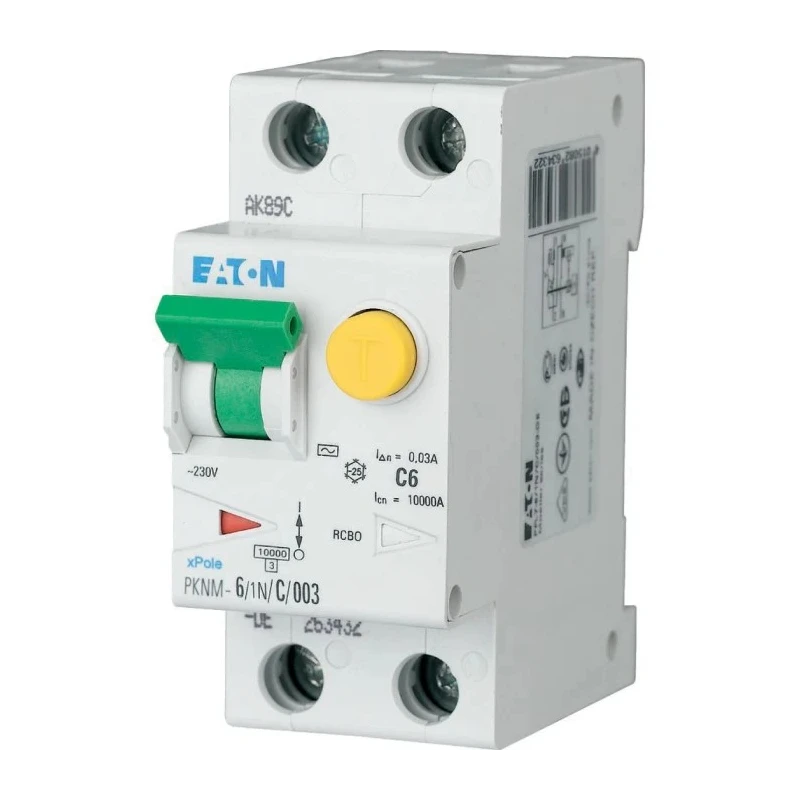

Eaton Residual Current Device PKNM Series 6A 2-Pole 30 mA Type C 10 kA 230V AC 236022 PKNM-6/1N/C/003-A-MW

Eaton 236022 PKNM-6/1N/C/003-A-MW Residual Current Device (RCCB) from the PKNM Series offers high-performance protection with a 6A current rating and 2-pole design. It features a trip sensitivity of 30 mA and Type C tripping characteristics, making it suitable for medium-powered residential and commercial electrical systems.

This device is designed for DIN rail mounting and uses screw-type terminals accommodating a wide range of solid-core cable sizes. It provides a breaking capacity of 10 kA, ensuring robust interruption of surges and fault currents. The instantaneous electromagnetic tripping mechanism is responsive to overcurrents and short circuits, enhancing system safety.

The PKNM series residual current device complies with IEC/EN 61008 standards and is rated for 230V AC operation. It incorporates Type A earth leakage protection, detecting AC residual currents and providing reliable protection against electric shocks. Its compact size with dimensions of 70.5mm depth, 80mm height, and 70mm width is optimized for space-constrained electrical enclosures.

The device withstands impulse voltages up to 4kV, protecting circuits from power spikes. Its maximum rated insulation voltage is 440V, ensuring electrical insulation safety. Operating reliably in ambient temperatures from -25°C to +40°C, it supports a wide range of environmental conditions.

The reset actuator in the form of a toggle switch allows for convenient manual resetting after a trip event. This makes it ideal for use in IT and lighting systems as well as general residential and commercial electrical protection.

Reliable instantaneous electromagnetic tripping mechanism. DIN rail mount with screw terminals for versatile wiring. High breaking capacity of 10kA for fault current interruption. Type C tripping suitable for devices with high inrush currents.

Operating voltage rating of 230V AC for common applications. Earth leakage protection with 30 mA sensitivity. Compact dimensions aid in efficient electrical panel design. Impulse withstand voltage rating ensures protection against surges.

Wide ambient temperature operating range from -25°C to +40°C. User-friendly toggle switch reset actuator.

Manufactured in Romania, this Eaton RCBO is ideal for industrial, commercial, and residential electrical safety applications. It aligns with international standards and leverages Eaton's expertise in electrical protection devices.
