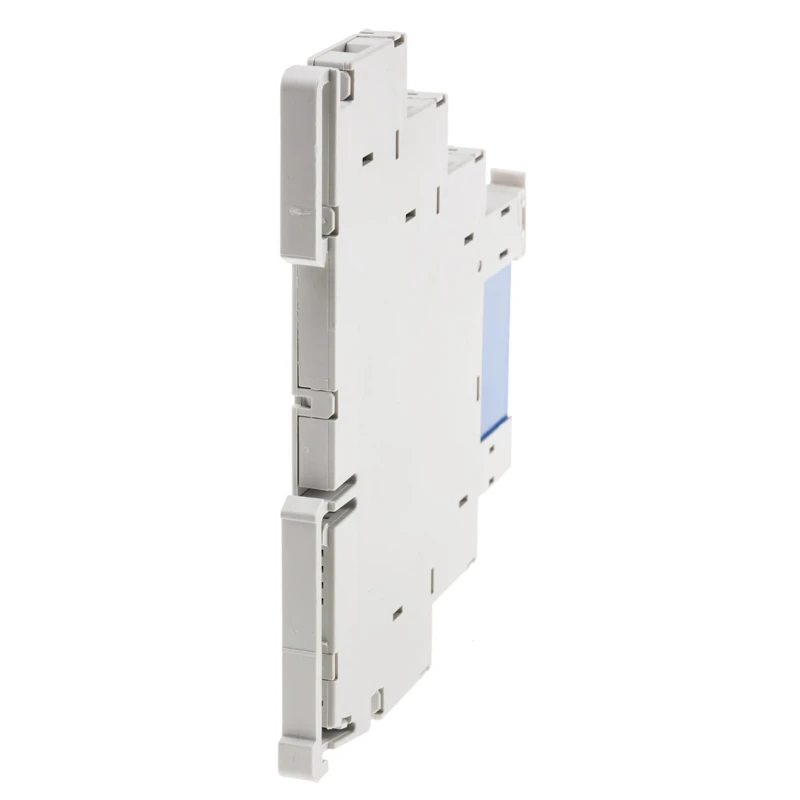

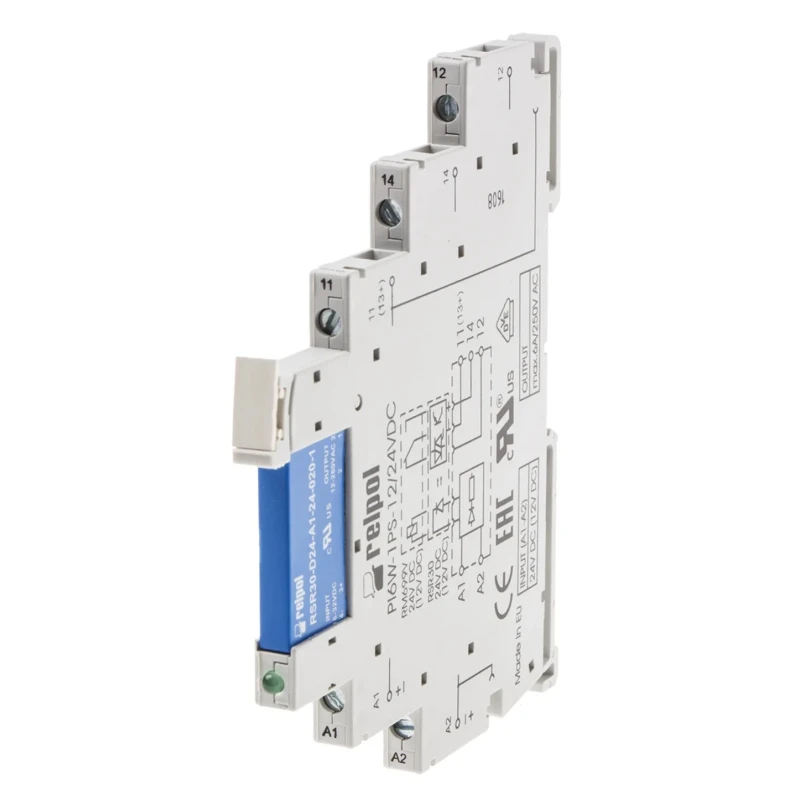

Relpol Interface Relay with PIR6W Series 24V ac/dc Coil, SPDT Contact, DIN Rail Mount, 1.2A Current
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | Relpol |
| Height | 85.5mm |
| Length | 98.5mm |
| Model | PIR6W |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | PIR6W |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Switching Current | 1.2A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Resistance | 100mΩ |
| Coil Voltage | 24V ac/dc |
| Coil Current | 1.2A |
| Switching DC Voltage | 20V dc |
| Switching AC Voltage | 400V ac |
Key Features
- The relay supports DIN Rail mounting for easy installation.
- It features a screw terminal type for secure electrical connections.
- Coil resistance is 100mΩ ensuring reliable coil operation.
- Contact material is high quality silver alloy, offering durability and conductivity.
- Operating temperature range is from -20°C to 55°C for versatile environmental use.
- Supports switching voltages up to 400V AC and 20V DC.
- LED indicator and relay ejector improve usability and maintenance.
- The relay is IP20 protected for safety against solid objects.
Product Description
Relpol PIR6W-1PS-24VAC/DC-T Interface Relay provides reliable switching with a 24V ac/dc coil and SPDT contact configuration. It is engineered for industrial, electrical automation, and control applications requiring DIN Rail mounted interface relays. This relay supports a switching current of 1.2A, suitable for signal conditioning and control circuits.
The device features a low coil resistance of 100mΩ and uses silver alloy contacts for enhanced conductivity and longevity. The relay is designed to operate within a temperature range from -20°C minimum to 55°C maximum, ensuring consistent performance in various industrial environments.
The relay supports switching voltages up to 400V AC and 20V DC. It utilizes screw-type terminals for secure connections and includes an LED indicator along with a relay ejector for operational feedback and easy maintenance. The enclosure is IP20 rated, protecting internal components against solid intrusions.
This product is RoHS compliant and is manufactured in Poland, reflecting high-quality standards suitable for industrial automation, control systems, and electrical panels. Applications include industrial machinery control, signal interfacing, automation systems, and other environments requiring reliable interface relays with DIN Rail mounting.
The relay’s compact dimensions (98.5mm length, 85.5mm height, and 6.2mm width) support space-efficient panel integration. Its professional design includes features such as LED indication and relay ejector for ease of use and maintenance.
Robust contact material enhances operational life and reliability under load conditions. Complies with electrical standards ensuring safe and consistent operation in demanding applications.
Environmentally conscious users will appreciate the RoHS certification for hazardous substance control. Browse EnvMart for more Interface Relays and electrical components by Relpol and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V ac/dc.
This model supports a switching current of 1.2A.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay has dimensions of 98.5mm in length, 85.5mm in height, and 6.2mm in width.
It supports switching voltages up to 400V AC and 20V DC.
The coil resistance is 100mΩ, ensuring reliable coil operation.
It is designed for DIN Rail mounting, facilitating easy installation.
The contacts are made from high-quality silver alloy, which enhances conductivity and durability.
The operating temperature range is from -20°C to 55°C.
Yes, it includes an LED indicator for operational feedback and maintenance.
Yes, this relay is RoHS compliant, reflecting its adherence to hazardous substance control standards.
