SMC Pneumatic Solenoid Valve 4/3 NC 24V DC 5-Port Die Cast Aluminium SV1000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 4/3 NC 24V DC 5-Port Die Cast Aluminium SV1000



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	France
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	92.2mm
Length	135.5mm
Model	SV1000
Width	68.2mm
Mount Type	Plug-in
Series	SV1000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	4
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Standards/Approvals	CE, cULus
Minimum Pilot Pressure	0.15MPa
Valve Function	4/3 NC
Electrical Connection Type	D-Sub Connector
Solenoid Type	Double
Port Gender	Female
Solenoid Power Consumption	0.6W

Key Features

The valve operates at 24V DC with low power consumption of 0.6W.
Constructed from durable die-cast aluminium providing robust performance.
Suitable for operating pressure range of 0.15 MPa to 0.7 MPa.
Designed for temperature range from -10°C to 50°C to accommodate diverse environments.
Featuring a plug-in mount and D-Sub connector for easy installation and reliable electrical connection.
Includes 4 positions and 5 female ports facilitating versatile flow control.
Certified with CE and cULus standards ensuring quality and safety compliance.
Compact dimensions (135.5mm length, 68.2mm width, 92.2mm height) for space-efficient integration.

Product Description

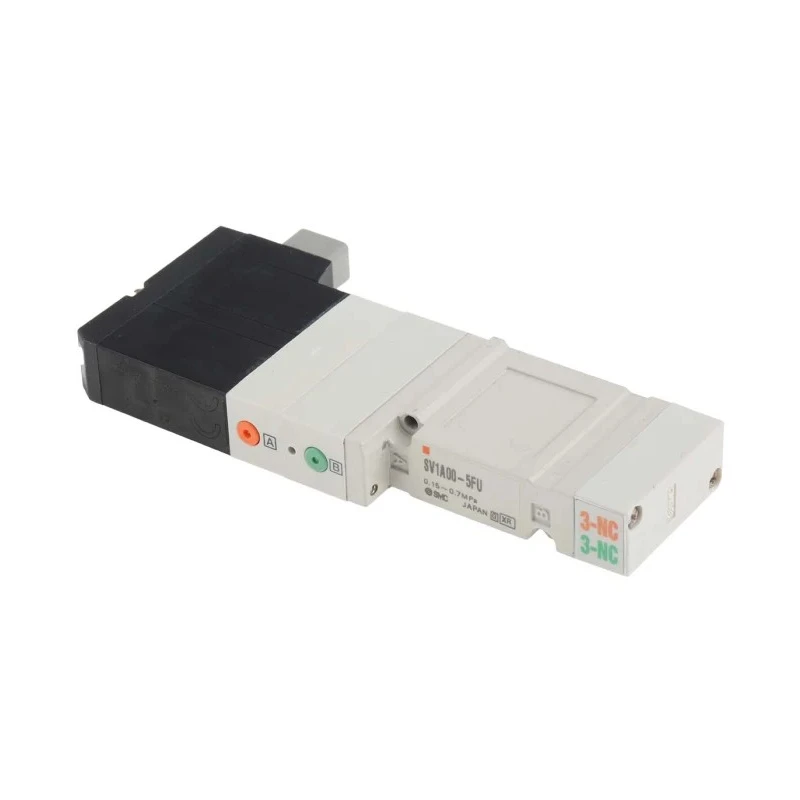

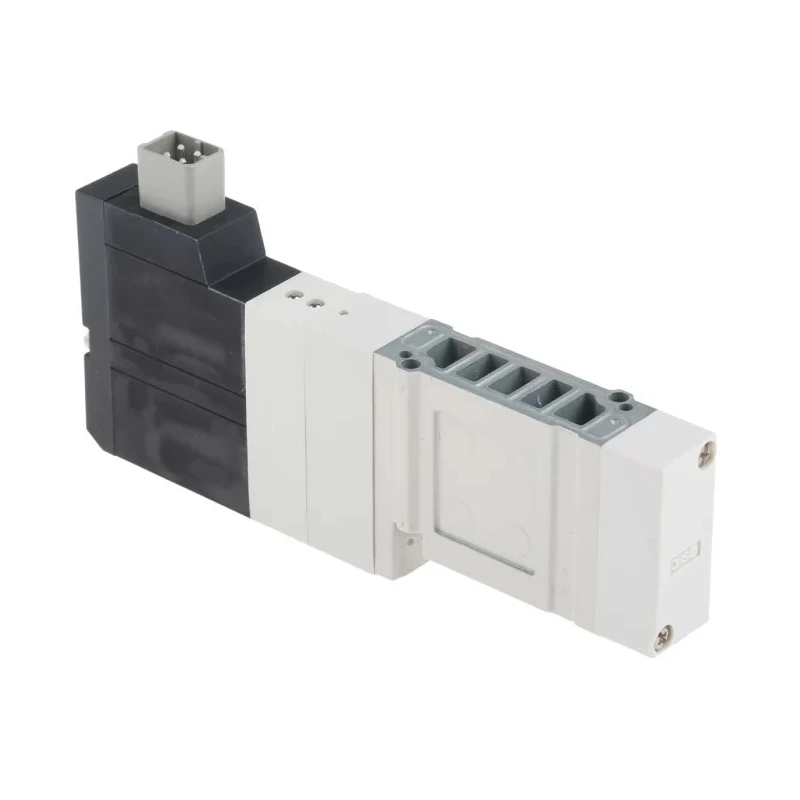

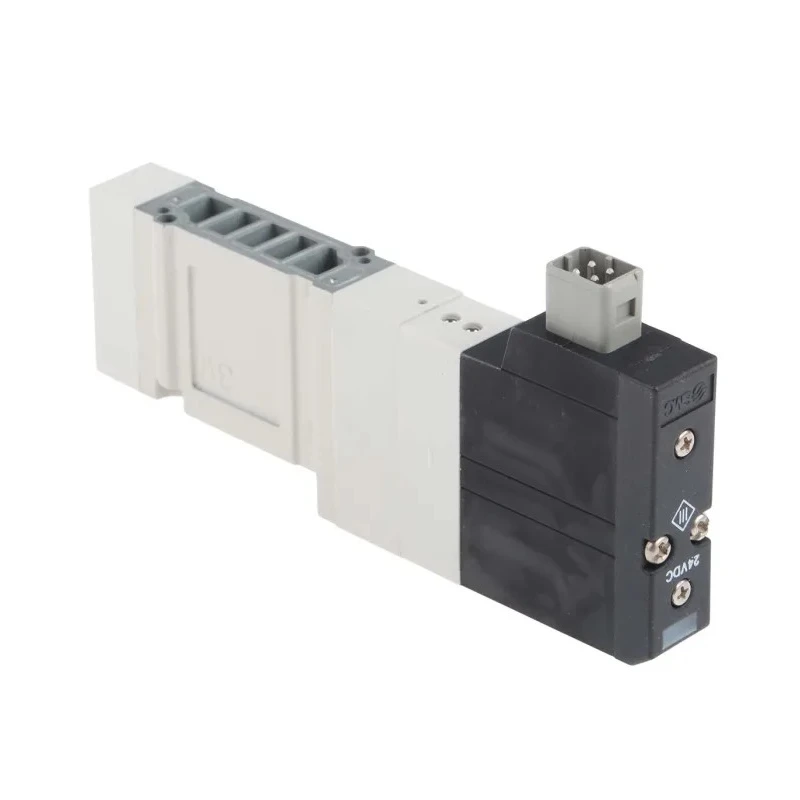

SMC SV1000 Pneumatic Solenoid Valve SV1A00-5FU is a high-quality 4/3 NC solenoid valve powered by 24V DC, expertly engineered for efficient control of pneumatic systems in industrial automation.

This valve features a double solenoid actuation type with 5 female ports configured to deliver precise control over airflow with 4 operating positions. The robust die-cast aluminium body ensures durability and suitability for diverse industrial environments with operating pressures from 0.15 MPa to 0.7 MPa and temperature tolerance between -10°C and 50°C.

The low solenoid power consumption of 0.6 watts and plug-in mount design facilitate energy efficiency and easy installation. Electrical connection utilizes a D-Sub connector ensuring secure and reliable operation. It complies with CE and cULus standards, making it suitable for use in demanding industrial, manufacturing, and automation settings.

This pneumatic solenoid valve is ideal for integration into pneumatic valves and hydraulic tool systems requiring reliable, space-saving solenoid control to maintain consistent airflow management and high system performance.

The valve operates efficiently at 24V DC and a power consumption of 0.6W. Its die-cast aluminium construction provides strength and corrosion resistance. It supports operating pressures up to 0.7 MPa and pilot pressures between 0.15 MPa and 0.7 MPa.

Designed to operate reliably in temperatures ranging from -10°C to 50°C. The plug-in mounting and D-Sub connector simplify installation and connectivity. Five female ports and four positions enable flexible pneumatic control configurations.

Certified with CE and cULus standards to meet safety and quality requirements. Compact physical dimensions allow for installation in space-limited settings.

Discover a dependable Pneumatic Solenoid Valve solution engineered for performance and reliability in industrial pneumatic control applications. Explore the full SMC pneumatic valve range in our catalog for comprehensive fluid power system solutions.
