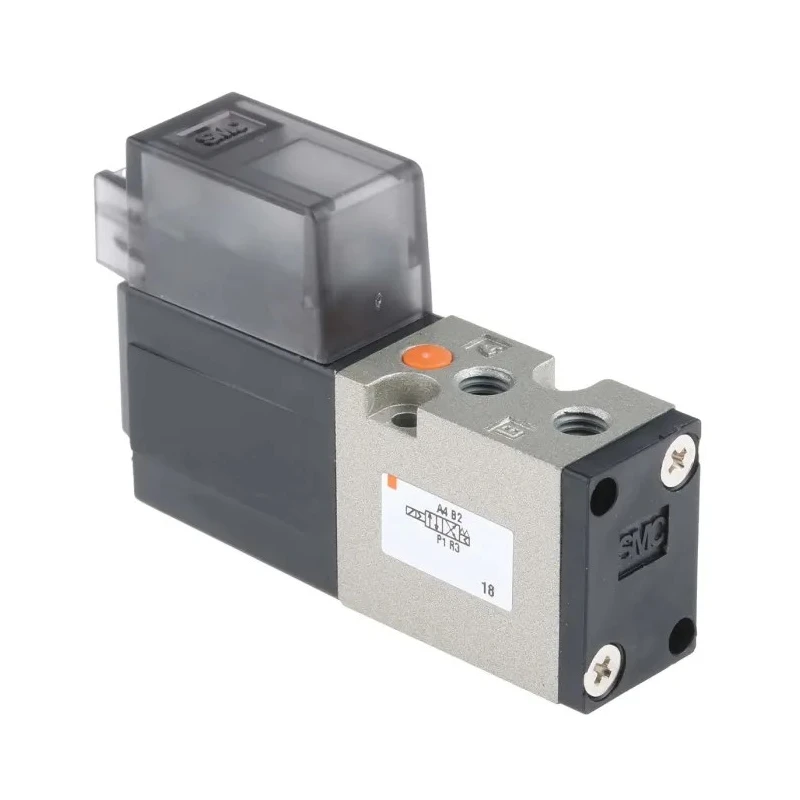

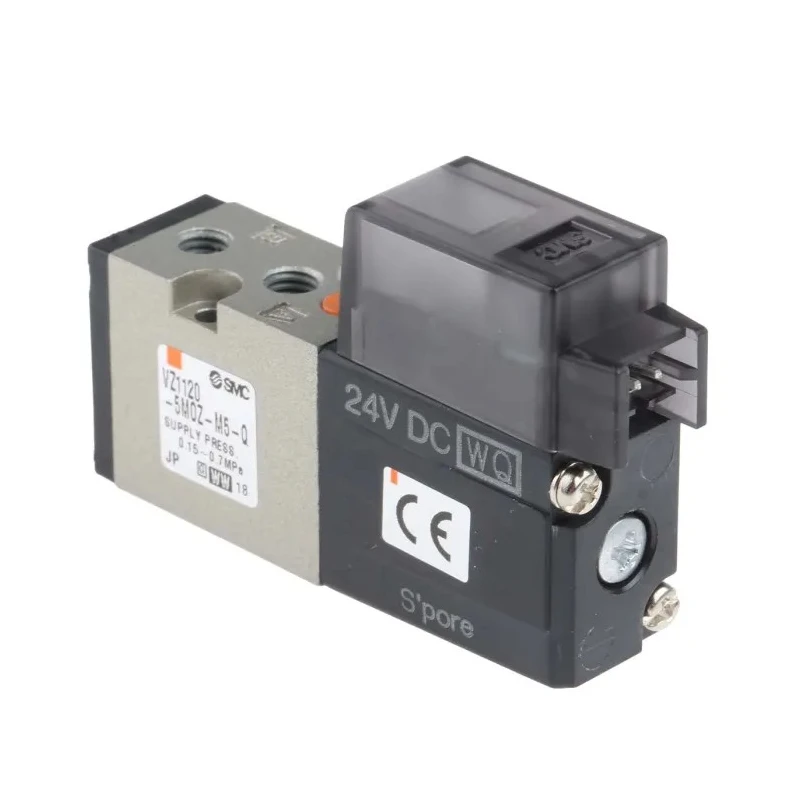

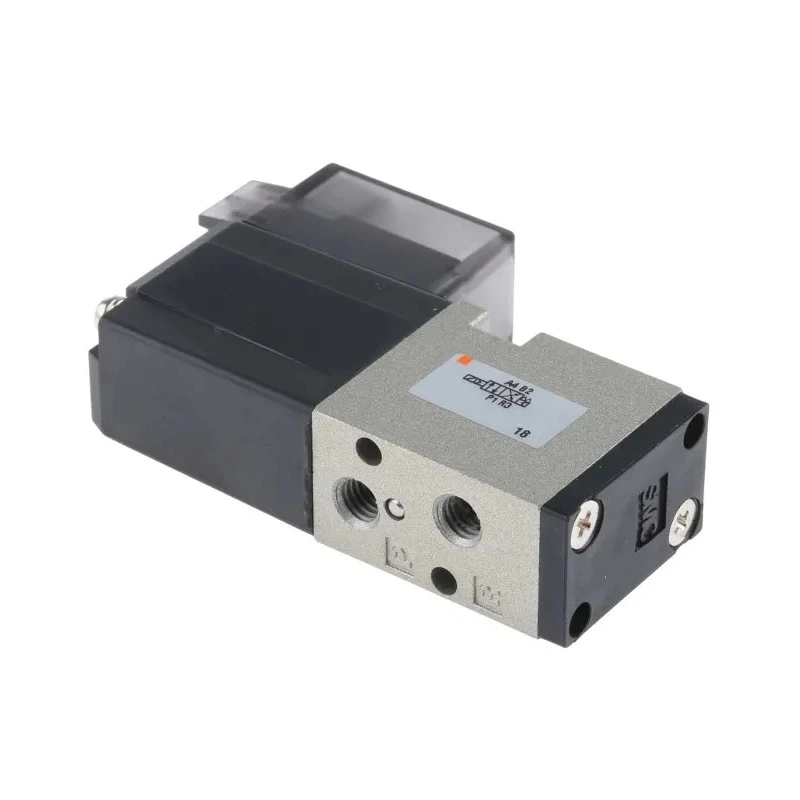

SMC Pneumatic Solenoid Valve Pilot Metric 24V DC 0.7 Mpa 81NL/min Die Cast Zinc VZ1000

SMC VZ1120-5MOZ-M5-Q pneumatic solenoid valve pilot metric series is engineered for precise pneumatic fluid control in industrial, manufacturing, and automation applications. Operating at 24V DC with a maximum operating pressure of 0.7 Mpa, it delivers a maximum flow rate of 81NL/min, making it suitable for devices such as cylinders up to 16mm bore size.

The valve features a die cast zinc body ensuring robust mechanical strength and resistance to corrosion, combined with hydrogenated nitrile rubber seals for enhanced sealing performance under a wide range of operating temperatures from -10°C to 50°C. Its body ported, base mount design allows for compact and flexible installations.

This solenoid valve supports both normally closed (NC) and normally open (NO) valve functions and includes a non-locking push type manual override for manual operation without impairing normal function. The valve’s quick response time of less than 15 milliseconds and low power consumption of 1.8W support efficient automation control systems.

With a pilot actuation type and metric M5 thread size, this valve conforms to metric connection standards widely used in pneumatic systems. It does not carry specific approvals but complies with standard operational requirements, making it suitable for pneumatic fluid power applications in industrial, laboratory, HVAC, and manufacturing environments.

Compact and fast response with less than 15 milliseconds response time. Operates reliably with maximum pressure up to 0.7 Mpa and flow rate up to 81NL/min. Features hydrogenated nitrile rubber seals ensuring durability and chemical resistance.

Die cast zinc body material provides strength and corrosion resistance. Suitable for use with cylinders up to 16mm bore size. Non-locking manual override for easy manual control in emergencies. Designed with 4 ports and base body ported mounting type.

Wide operating temperature range from -10°C to 50°C for diverse environments. Low energy consumption of just 1.8W for energy-efficient operation. Can be mounted in any orientation for flexible installation.

This Pneumatic Solenoid Valve is ideal for use in industrial automation, manufacturing plants, pneumatic control systems, laboratory pneumatic equipment, and HVAC systems requiring reliable and precise fluid control. Its robust design ensures long operational life and energy-efficient performance, supporting a range of applications where pilot valve actuation and compact size are critical.
