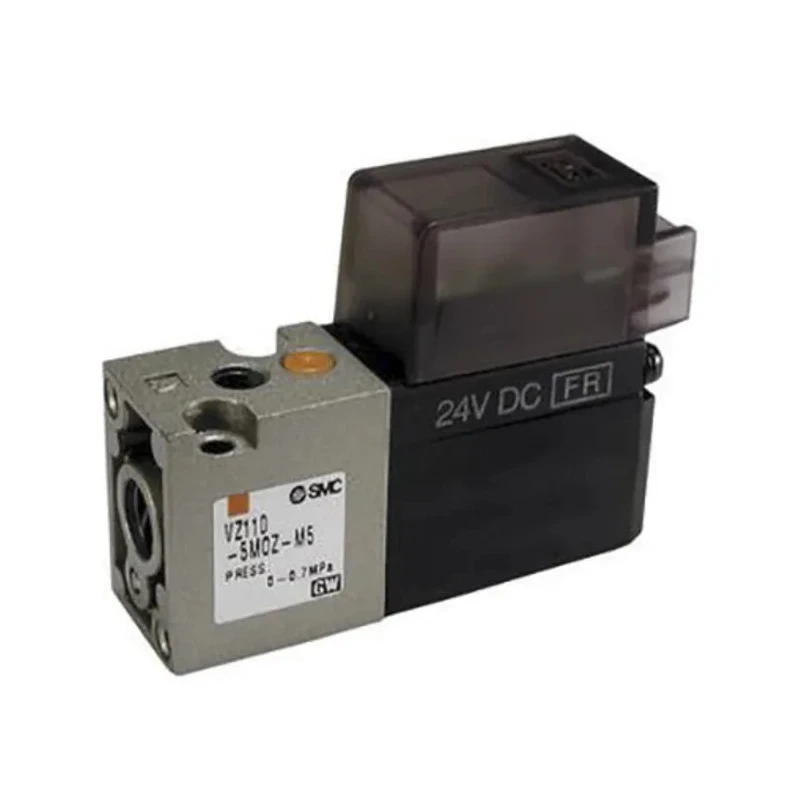

SMC Pneumatic 3/2 Solenoid/Spring Valve with Metric M5 x 0.8 Port Size, Body Ported, 24V dc, Die Cast Zinc Body VZ100

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic 3/2 Solenoid/Spring Valve with Metric M5 x 0.8 Port Size, Body Ported, 24V dc, Die Cast Zinc Body VZ100



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 Mpa
Height	57mm
Length	68.5mm
Model	VZ100
Width	42mm
Mount Type	Body Ported
Series	VZ100
Number Of Ports	3
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5 x 0.8
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid/Spring
Standards/Approvals	RoHS
Connection Thread Standard	Metric
Minimum Pilot Pressure	0MPa
Valve Function	3/2
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

Features a durable die cast zinc body for robust industrial performance.
Equipped with rubber seals ensuring dust proof and reliable sealing.
Operates at a maximum pressure of 0.7 MPa with a maximum temperature of 50°C.
Low power consumption of 0.35W enables efficient direct PLC control.
Compact dimensions with 68.5 mm length, 42 mm width, and 57 mm height allow easy mounting.
Three-port design with 3/2 valve function supports versatile pneumatic control needs.
Body ported mount type with female port gender and DIN electrical connector for easy installation.
Includes a non-locking manual override for operational flexibility.

Product Description

SMC VZ110-5MOZ-M5-Q pneumatic solenoid valve is a 3/2 type valve designed for efficient pneumatic control in industrial settings. It operates at 24V dc, suitable for automation systems requiring low power consumption and quick response.

The valve features a robust die cast zinc body and rubber seals that provide dust proofing and durability. The compact size allows for space-saving installations with dimensions of 68.5 mm length, 42 mm width, and 57 mm height. The valve function of 3/2 ports supports multiple pneumatic flow configurations.

This single solenoid/spring actuation valve has a maximum operating pressure of 0.7 MPa and is rated to work within a temperature range of -10°C to 50°C. The low solenoid power consumption of 0.35W enables direct control by PLCs, enhancing industrial automation capabilities.

The mount type is body ported with an M5 x 0.8 metric port size and female port gender. It comes with a DIN electrical connector and includes a non-locking manual override for ease of use and maintenance. The valve complies with RoHS standards and is built to Japanese quality, making it ideal for pneumatic systems in manufacturing, fluid power tools, HVAC, laboratory automation, and other industrial applications.

SMC pneumatic solenoid valves are known for reliability and precision control, and this VZ series valve is suitable for individual mounting or manifold installation depending on system requirements.

Durable die cast zinc body for enhanced mechanical strength. Rubber seals ensure effective dust proofing and sealing performance. Supports 3/2 valve function for versatile pneumatic control. Operates at a nominal voltage of 24V dc with low power consumption.

Compact size eases integration into automated systems. Non-locking manual override allows manual operation during maintenance. Meets RoHS compliance for environmental safety standards. Ideal for use in manufacturing, industrial automation, and fluid power control.

The set comes as a single Pneumatic Solenoid Valve unit ready for integration into pneumatic control circuits. Explore other SMC pneumatic valves and solenoid control devices to find comprehensive solutions for your industrial automation needs at EnvMart.
