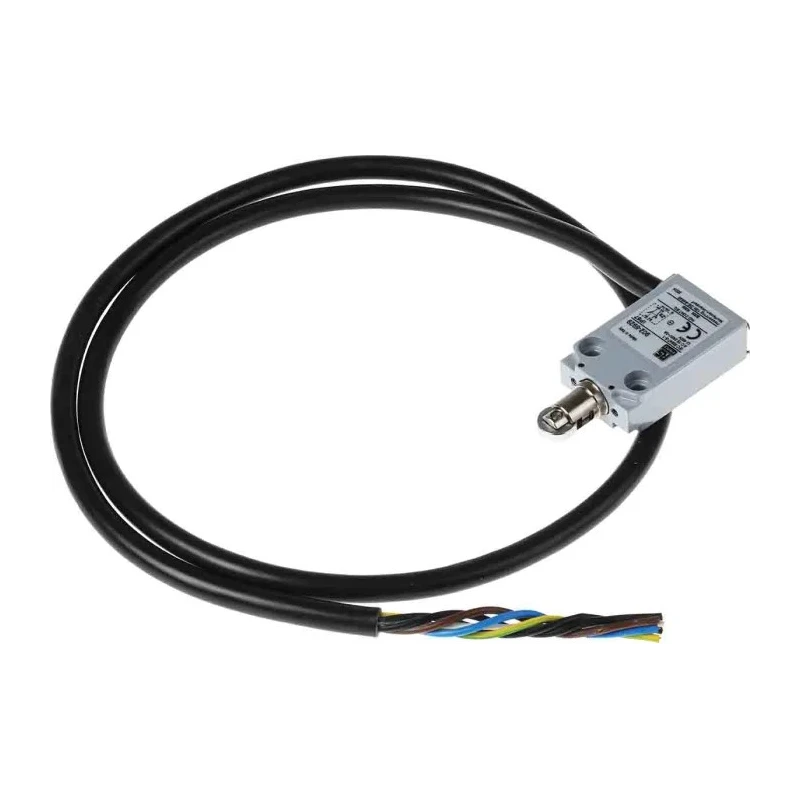

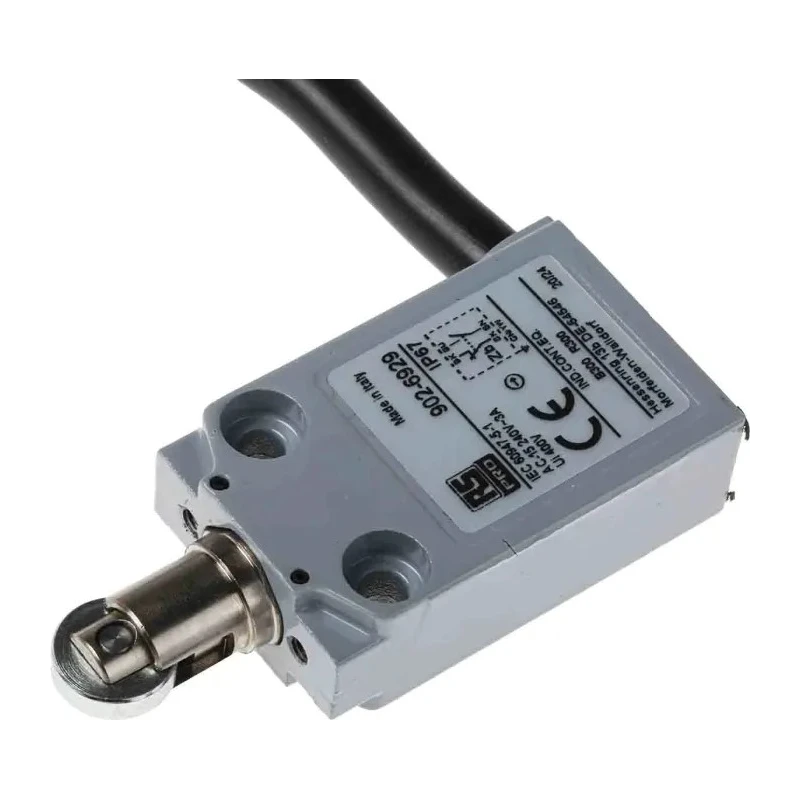

RS PRO Roller Plunger Limit Switch 1 NO/1 NC Die Cast Zinc Housing IP67 240V AC 5A IP67

RS PRO IP67 Roller Plunger Limit Switch model IP67 offers a reliable and durable solution for precise position and travel limit detection in industrial and automation systems. It features a robust die cast zinc alloy housing combined with thermoplastic materials, ensuring excellent resistance to mechanical stress and environmental factors. This electromechanical switch is designed to operate at an AC voltage rating of 240V and DC voltage rating of 250V, making it suitable for a wide range of control circuits.

Equipped with a roller plunger actuator, it uses snap action contacts configured as 1 Normally Open (NO) and 1 Normally Closed (NC) contact. The switch supports a switching current of up to 5 Amperes, and its electrical insulation rating reaches 400 Volts, providing safety and reliability in demanding applications.

The IP67 rated housing ensures complete protection against dust ingress and immersion in water, allowing operation in harsh industrial environments. The device performs reliably within a temperature range of -25°C to +70°C and provides a mechanical life of up to 10 million operations, making it suitable for continuous heavy-duty use.

Typical applications for this limit switch include industrial automation, injection molding machines, electronic assembly equipment, and material handling systems. The vertical mounting orientation and 10N operating force provide precise and repeatable switching performance.

The contact configuration comprises 1 NO and 1 NC circuits for versatile control options. IP67 protection rating against solids and liquids supports harsh environments. Mechanical life of 10 million operations ensures durability and long service life.

Die cast zinc alloy housing offers robust protection and corrosion resistance. Operating temperature range from -25°C to +70°C adapts to various industrial conditions. Snap action contact type allows for rapid, reliable switching.

Roller plunger actuator facilitates smooth mechanical operation. Compact dimensions: 31.5 mm length, 70 mm width, 16 mm depth. Operating force of 10N enables responsive actuation. Certified per CSA, EN, IEC, IMQ, RoHS, RU, UL, and CE standards.

RS PRO products are engineered to meet stringent quality and safety standards, making them trusted components in automation and control systems worldwide. Explore more RS PRO Limit Switches and industrial components at EnvMart for reliable, high-performance solutions.
