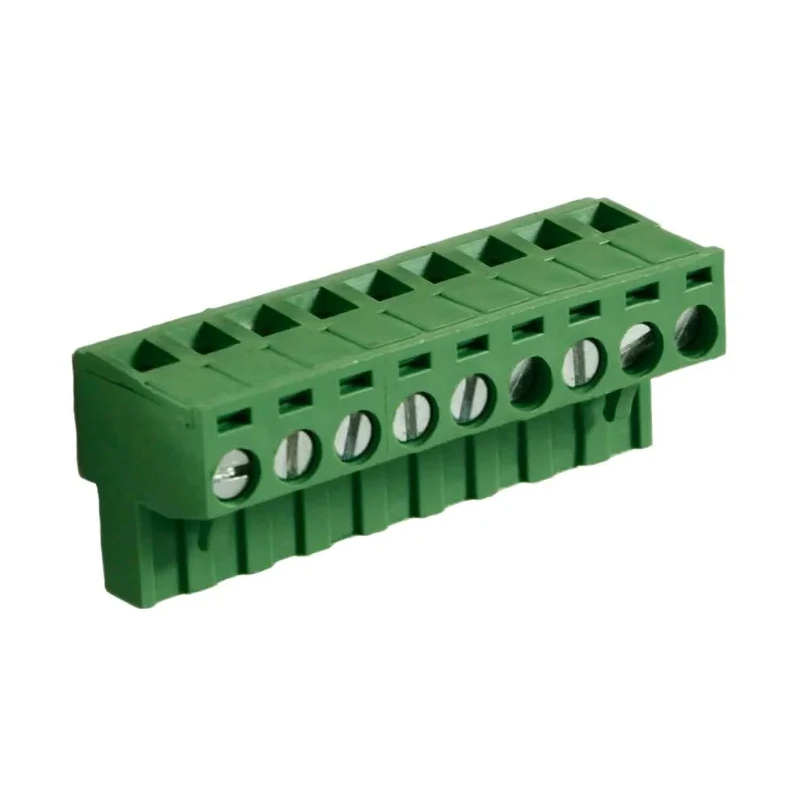

RS PRO Pluggable Terminal Block, 9-Contact, 5 mm Pitch, 1 Row, Female Connector, Polyamide Housing, 300V, 15A 897-1180

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Pluggable Terminal Block, 9-Contact, 5 mm Pitch, 1 Row, Female Connector, Polyamide Housing, 300V, 15A 897-1180

Name: RS PRO Pluggable Terminal Block, 9-Contact, 5 mm Pitch, 1 Row, Female Connector, Polyamide Housing, 300V, 15A 897-1180
Brand: RS PRO
SKU: 386261
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	300V
Brand	RS PRO
Colour	Green
Orientation	Right Angle
Current	15A
Length	45mm
Model	897-1180
Depth	15mm
Width	18.2mm
Housing Material	Polyamide
Series	RS PRO
Number of Rows	1
Pitch	5mm
Standards/Approvals	cULus
Number of Contacts	9
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	3.3mm²
Minimum Wire Size AWG	14AWG
Maximum Wire Size AWG	22AWG

Key Features

Designed with a 5 mm pitch and single row configuration.
Features a polyamide housing offering UL94-V0 flame retardant properties.
Supports wire sizes from 0.2 to 3.3 mm² (14 to 22 AWG).
Rated for a current of 15A and voltage up to 300V.
Provides a right angle orientation for flexible PCB mounting.
Constructed with professional rising clamp terminal screws for secure connections.
Green color housing with polarized molded design for proper alignment.
Certified under cULus safety standards.

Product Description

RS PRO 897-1180 Pluggable Terminal Block offers a 9-contact, 5 mm pitch, 1-row female terminal block connector suitable for electronic and power connector applications. The terminal block is constructed with a polyamide housing that meets UL94-V0 flame retardant standards, ensuring industrial safety and durability.

This 5 mm pitch device supports a wire cross-section range from 0.2 mm² to 3.3 mm² (14 to 22 AWG), facilitating compatibility with various cable sizes. It is designed with professional rising clamp screws that securely hold solid and stranded conductors, providing reliable electrical connections.

The terminal block supports a voltage rating of 300V and a current rating of 15A, making it suitable for a wide range of industrial, automation, and electrical applications. Its right angle orientation and compact dimensions (45 mm length, 18.2 mm width, and 15 mm depth) allow easy integration into PCB assemblies.

The green polyamide housing is polarized to prevent incorrect mating and enhances the safety of connections. This product is certified by cULus standards, ensuring compliance with North American safety requirements.

Ideal for use in industrial machinery, HVAC control panels, manufacturing equipment, and electrical distribution systems, the RS PRO 897-1180 enables secure and efficient wiring. Designed with a 5 mm pitch and single row configuration.

Features a polyamide housing offering UL94-V0 flame retardant properties. Supports wire sizes from 0.2 to 3.3 mm² (14 to 22 AWG). Rated for a current of 15A and voltage up to 300V. Provides a right angle orientation for flexible PCB mounting.

Constructed with professional rising clamp terminal screws for secure connections. Green color housing with polarized molded design for proper alignment. Compact dimensions: length 45 mm, width 18.2 mm, depth 15 mm. Certified under cULus safety standards.
