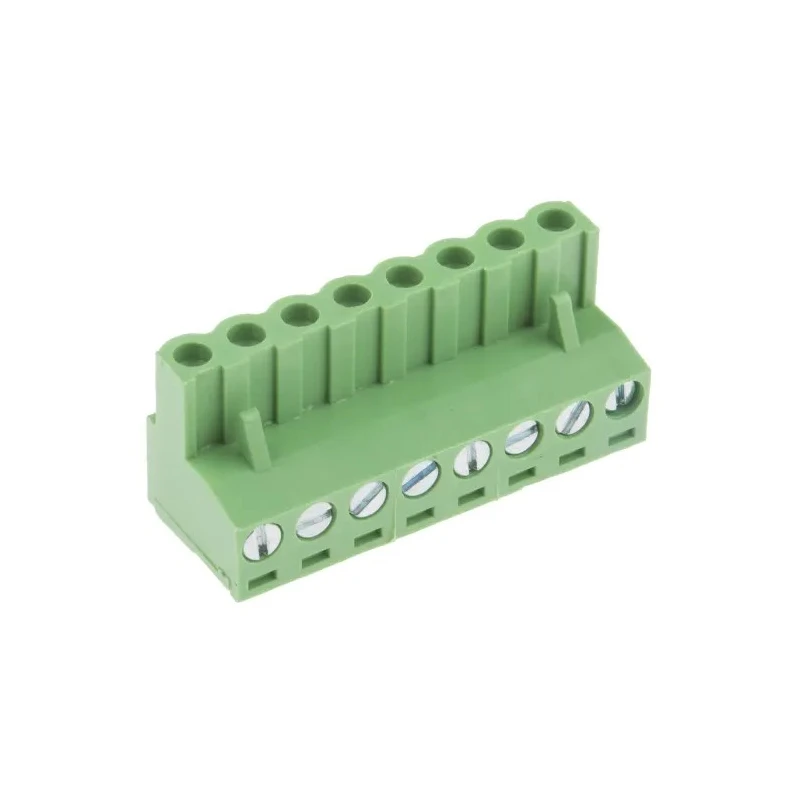

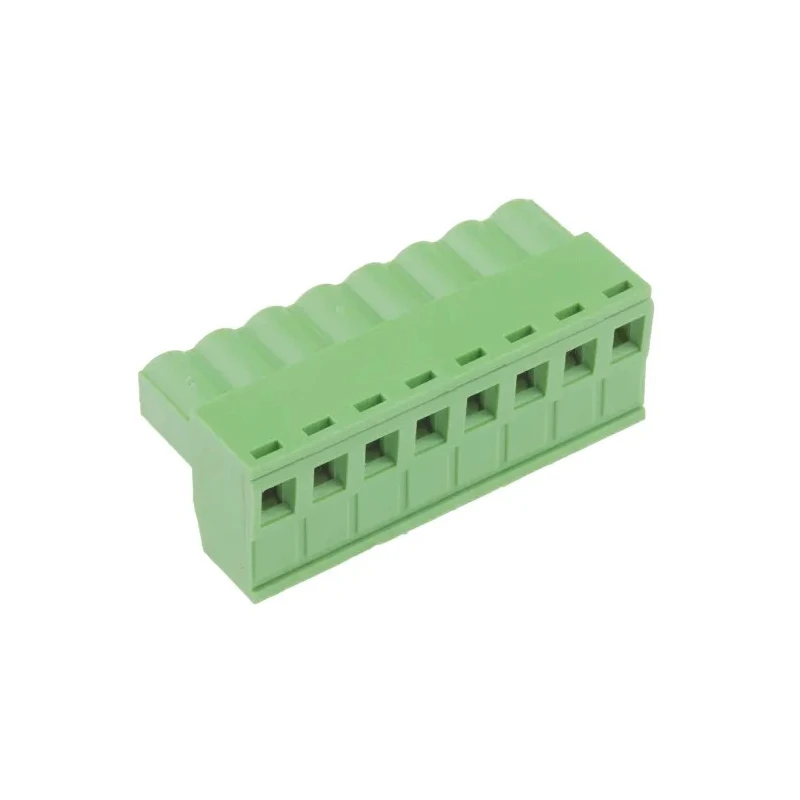

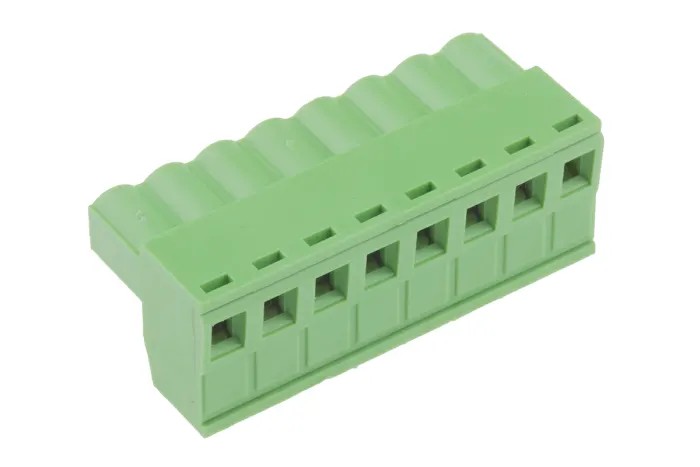

RS PRO Pluggable Terminal Block 8-Contact 5.08 mm Pitch 1 Row 300V 15A Polyamide Housing 897-1231
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 40.6mm |
| Model | 897-1231 |
| Depth | 15mm |
| Width | 17.7mm |
| Housing Material | Polyamide |
| Series | RS PRO |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | cURus, UL94-V0 |
| Number of Contacts | 8 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.33mm² |
| Maximum Wire Size mm² | 2mm² |
| Wire Connection Method | Screw |
| RS PRO Pluggable Terminal Block, 8-Contact, 5.08 mm Pitch, 1 RowBrand | RS PRO |
Key Features
- Constructed with flame retardant UL94-V0 polyamide housing for safety.
- Supports wire sizes from 0.33 mm² to 2 mm² compatible with solid or stranded cables.
- Equipped with tin plated brass terminals and M2.5 captive screw connection method.
- Designed with guided pin alignment and right-angle connector gender for secure PCB mounting.
- Operating temperature range from -40°C to +105°C for varied industrial environments.
- Compact dimensions of 40.6 mm length, 17.7 mm width, and 15 mm depth.
- Provides reliable transfer of power, data, and signals as a permanent or temporary solution.
Product Description
RS PRO 897-1231 pluggable terminal block is an industrial-grade connector designed for robust electronic and electrical applications. Featuring 8 contacts spaced at a 5.08 mm pitch on a single row, it operates up to 300V and a current rating of 15A, making it suitable for power and signal terminals in PCB assemblies.
Manufactured with green polarised mouldings of UL94-V0 flame retardant polyamide (PA66), the terminal block ensures excellent safety and durability under varying industrial environments. The tin plated brass terminals use M2.5 captive slotted screws for secure and stable wire connection, supporting both solid and stranded wires within the 0.33 mm² to 2 mm² range.
The design includes a guided pin alignment and a right-angle female connector gender for reliable mounting and minimized installation errors. Compact form factor dimensions are 40.6 mm (length), 17.7 mm (width), and 15 mm (depth), suitable for dense electronics or automation systems.
This terminal block withstands operating temperatures between -40°C and +105°C, suitable for industrial, manufacturing, HVAC controls, and commercial electronics applications demanding stable and safe PCB connections.
Constructed with flame retardant UL94-V0 polyamide housing for safety. Supports wire sizes from 0.33 mm² to 2 mm² compatible with solid or stranded cables. Equipped with tin plated brass terminals and M2.5 captive screw connection method.
Designed with guided pin alignment and right-angle connector gender for secure PCB mounting. Operating temperature range from -40°C to +105°C for varied industrial environments. Compact dimensions of 40.6 mm length, 17.7 mm width, and 15 mm depth.
Provides reliable transfer of power, data, and signals as a permanent or temporary solution.
This RS PRO Pluggable Terminal Block is a trusted component in industrial automation, electronics manufacturing, laboratory instrumentation, and power distribution setups. It provides a high-quality, compliant, and efficient solution for PCB terminal connections.
Explore more high-quality connectors and terminal block solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 300V, making it suitable for various electrical applications.
This model can handle a current of up to 15A, which is ideal for power and signal terminals.
It supports wire sizes from 0.33 mm² to 2 mm², accommodating both solid and stranded cables.
The compact dimensions are 40.6 mm in length, 17.7 mm in width, and 15 mm in depth.
The housing is constructed from flame retardant UL94-V0 polyamide, ensuring safety in various environments.
This unit features a right-angle connector orientation, which aids in secure PCB mounting.
Wires are connected using an M2.5 captive screw connection method, ensuring a stable connection.
It operates effectively within a temperature range of -40°C to +105°C, suitable for various industrial applications.
This model has 8 contacts, spaced at a 5.08 mm pitch on a single row.
It complies with cURus and UL94-V0 standards, ensuring it meets safety and performance requirements.
It is suitable for applications in industrial automation, electronics manufacturing, and power distribution setups.
