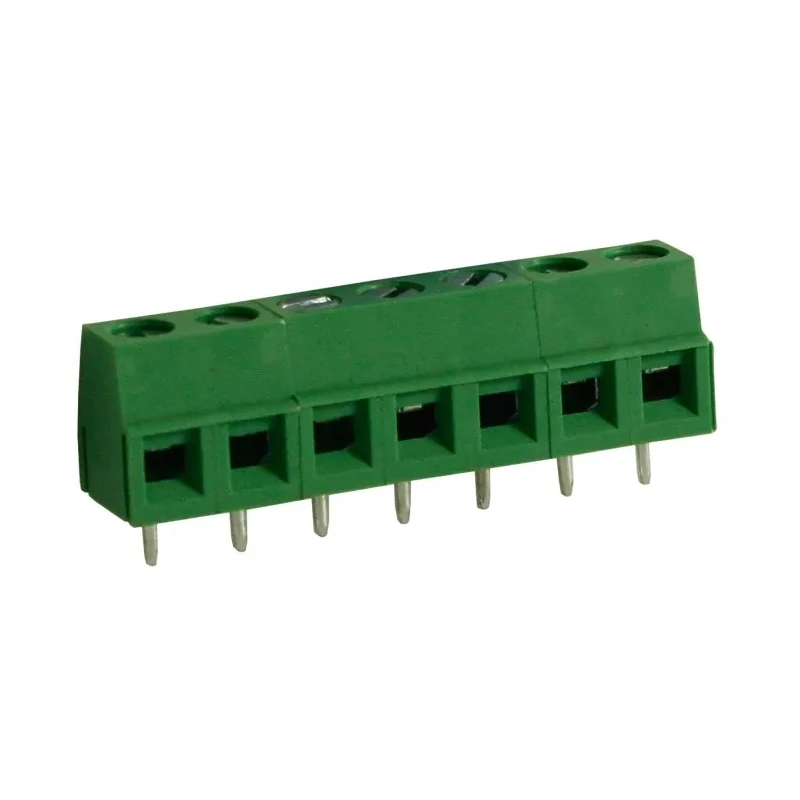

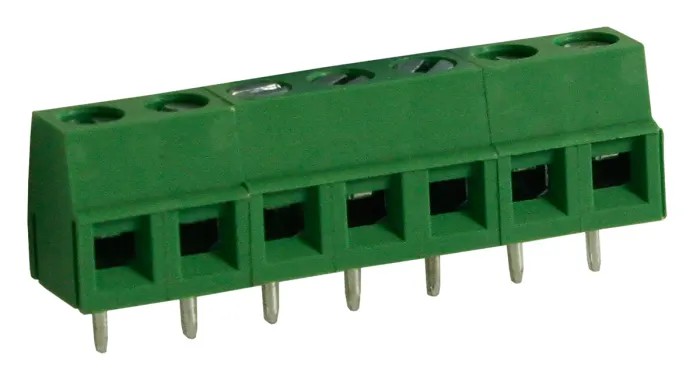

RS PRO PCB Terminal Block, 7-Contact, 5 mm Pitch, 1 Row, Screw Connection, Polyamide Housing 897-0862
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Straight |
| Current | 10A |
| Length | 35mm |
| Model | 897-0862 |
| Depth | 10mm |
| Width | 8.1mm |
| Housing Material | Polyamide |
| Series | RS PRO |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 7 |
| Minimum Wire Size mm² | 0.33mm² |
| Maximum Wire Size mm² | 3.3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 22AWG |
| Wire Connection Method | Screw |
Key Features
- Constructed with durable green polyamide housing ensuring flame retardant UL94-V0 standard.
- Supports a current rating of up to 10A for reliable electrical performance.
- Designed to accommodate wire sizes from 0.33 mm² up to 3.3 mm² (12 to 22 AWG).
- Compact dimensions measuring 35 mm length, 8.1 mm width, and 10 mm depth provide space efficiency.
- Provides a straight orientation and M2.5 nickel plated steel captive screws for strong connections.
- Suitable for various electronics and power connector applications requiring PCB terminal blocks.
- Rated for 300V voltage providing industrial-grade safety.
Product Description
RS PRO 897-0862 PCB Terminal Block is a 7-contact, 1-row terminal suitable for secure and reliable PCB connections. Featuring a 5 mm pitch and constructed using flame retardant polyamide housing, this terminal block meets industrial quality requirements.
This product supports a current rating of 10A and voltage rating of 300V, ensuring safe operation in various electronic and power connector applications. The screw type wire connection method utilizes M2.5 nickel plated steel captive screws for firm wire retention.
The terminal block accepts solid and stranded wires with minimum wire size of 0.33 mm² (12 AWG) and maximum wire size of 3.3 mm² (22 AWG), covering a broad range of wiring needs.
Compact dimensions of 35 mm length, 8.1 mm width, and 10 mm depth allow efficient use of PCB space while providing a low profile 10 mm height design. The green polyamide housing is compliant with UL94-V0 flame retardancy standards, enhancing safety.
This RS PRO series product is designed for industrial, laboratory, electronic manufacturing, and HVAC control applications where reliable PCB terminal connections are critical. Durable green polyamide UL94-V0 housing. M2.5 nickel plated steel captive screws.
Supports wire sizes 0.33 to 3.3 mm² (12-22 AWG). 10A current and 300V voltage ratings. Compact 35 x 8.1 x 10 mm size with 5 mm pitch. Straight orientation for easy PCB mounting. Industry-standard low profile design. Discover more electronic components and PCB Terminal Blocks at EnvMart for your professional projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 10A, ensuring reliable electrical performance in various applications.
This unit can accommodate wire sizes ranging from 0.33 mm² to 3.3 mm², which corresponds to 12 AWG to 22 AWG.
The compact dimensions are 35 mm in length, 8.1 mm in width, and 10 mm in depth, making it efficient for PCB space.
The pitch of the contacts is 5 mm, which is standard for many PCB applications.
It utilizes a screw type wire connection method with M2.5 nickel plated steel captive screws for secure wire retention.
The housing is constructed from green polyamide, which meets the UL94-V0 flame retardancy standard.
This model features 7 contacts, allowing for multiple connections in a single block.
It is designed for straight orientation, facilitating easy mounting on PCBs.
It is suitable for various electronics and power connector applications, including industrial, laboratory, and HVAC control systems.
The country of origin for this product is China.
