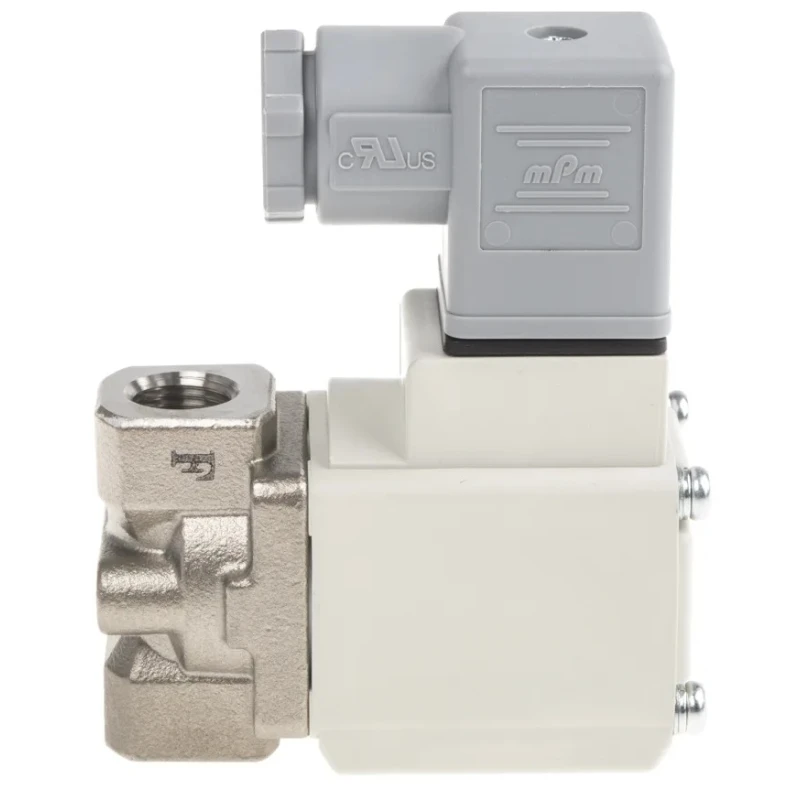

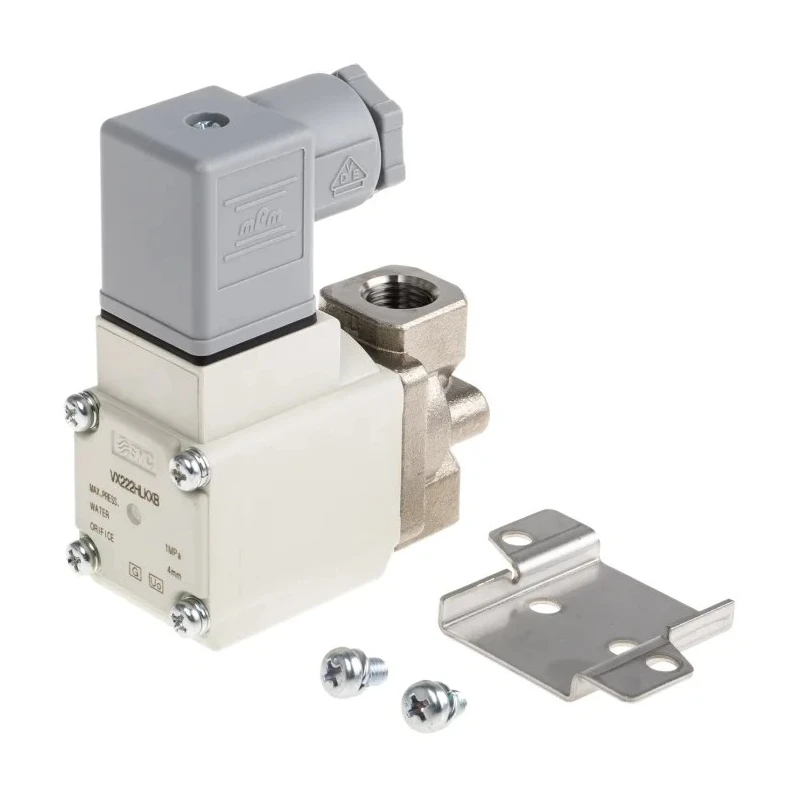

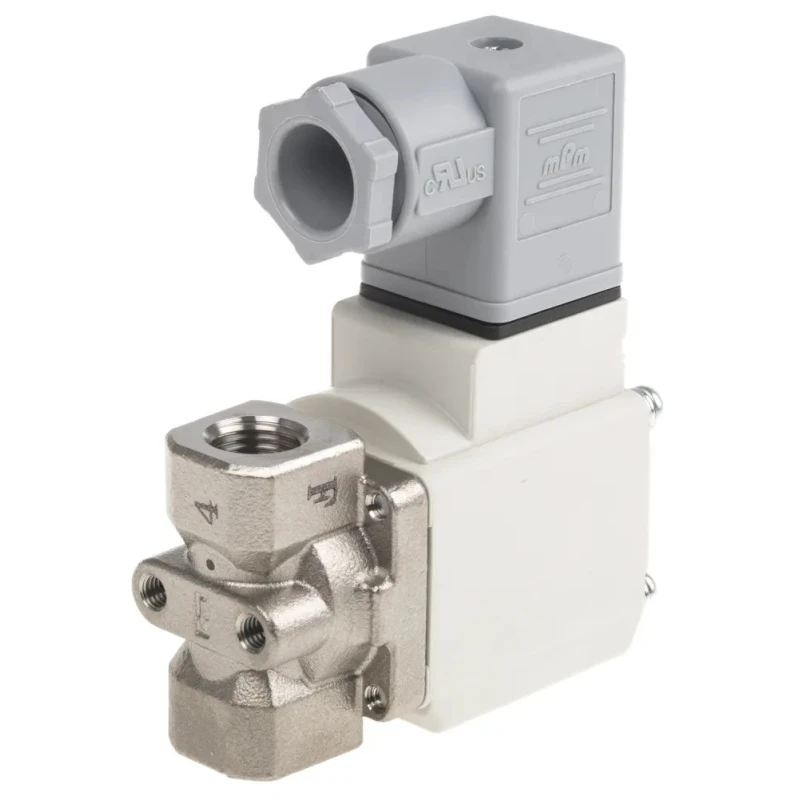

SMC Pneumatic Solenoid Valve 2/2 NC Solenoid Spring G VX Series 230V AC Stainless Steel VX222HLKXB
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 230V ac |
| Brand | SMC |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 1 Mpa |
| Height | 66mm |
| Length | 89mm |
| Model | VX222HLKXB |
| Width | 35mm |
| Mount Type | Bracket |
| Series | VX |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 60°C |
| Port Type | Threaded |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Seal Material | Fluorelastomer |
| Minimum Operating Temperature | -20°C |
| Actuation Type | Solenoid/Spring |
| Maximum Flow Rate | 736L/min |
| Standards/Approvals | RoHS, cULus, CE |
| Connection Thread Standard | G |
| Valve Function | 2/2 NC |
| Electrical Connection Type | DIN Connector |
| Solenoid Type | Single |
| Port Gender | Female |
Key Features
- Operates with a 230V AC power supply and single solenoid/spring actuation.
- Constructed with stainless steel body and fluorolelastomer seals for durability.
- Features a 1/4 inch threaded port size with female G connection standard.
- Supports maximum operating pressure of 1 MPa and maximum flow rate of 736 L/min.
- Compact design with dimensions of 89mm length, 35mm width, and 66mm height.
- Suitable for operating temperatures between -20°C and 60°C.
- Equipped with bracket mount and DIN electrical connector for easy installation.
- Certified with RoHS, cULus, and CE standards ensuring safe and compliant use.
Product Description
SMC VX222HLKXB Pneumatic Solenoid Valve 2/2 NC Solenoid Spring G VX Series 230V AC is engineered for precise control of air, vacuum, water, or oil applications in industrial, laboratory, HVAC, manufacturing, and water treatment settings.
This valve features a direct-operated poppet design with a stainless steel body and fluorolelastomer sealing, providing robustness and chemical resistance. The valve includes a rubber bumper that minimizes metal noise, enhancing operational quietness.
With a 1/4 inch threaded port size and female port gender, it connects securely via G standard threading. The valve’s maximum operating pressure is rated at 1 MPa with a maximum pilot pressure also of 1 MPa, enabling efficient flow control up to 736 L/min.
Operating temperature range from -20°C to 60°C allows use in varied ambient conditions. The valve is mounted by bracket and electrically connected through a DIN connector, facilitating quick and secure installation.
Operates at 230V AC with single solenoid and spring actuation. Stainless steel body with fluorolelastomer seals ensures durability. Compact dimensions: 89mm length x 35mm width x 66mm height. Maximum operating pressure and pilot pressure of 1 MPa.
Maximum flow rate of 736 L/min for high efficiency. RoHS, cULus, and CE certified for quality assurance. Designed for quiet, dust tight, and water-jet proof operation. Ideal for pneumatic control in industrial and manufacturing environments.
Set this valve as part of your pneumatic control solutions to improve system reliability and efficiency. Explore more pneumatic valves and related automation components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 1 MPa.
This model has a maximum flow rate of 736 L/min.
The dimensions of this valve are 89mm in length, 35mm in width, and 66mm in height.
It uses a DIN connector for electrical connection.
The operating temperature range is from -20°C to 60°C.
The valve has a stainless steel body and fluorolelastomer seals.
This unit is designed for bracket mounting.
It functions as a 2/2 normally closed (NC) valve.
The valve features a 1/4 inch threaded port size with a female G connection.
It is certified with RoHS, cULus, and CE standards.
This model utilizes single solenoid and spring actuation.
It is suitable for air, vacuum, water, or oil applications in industrial, laboratory, HVAC, manufacturing, and water treatment settings.
