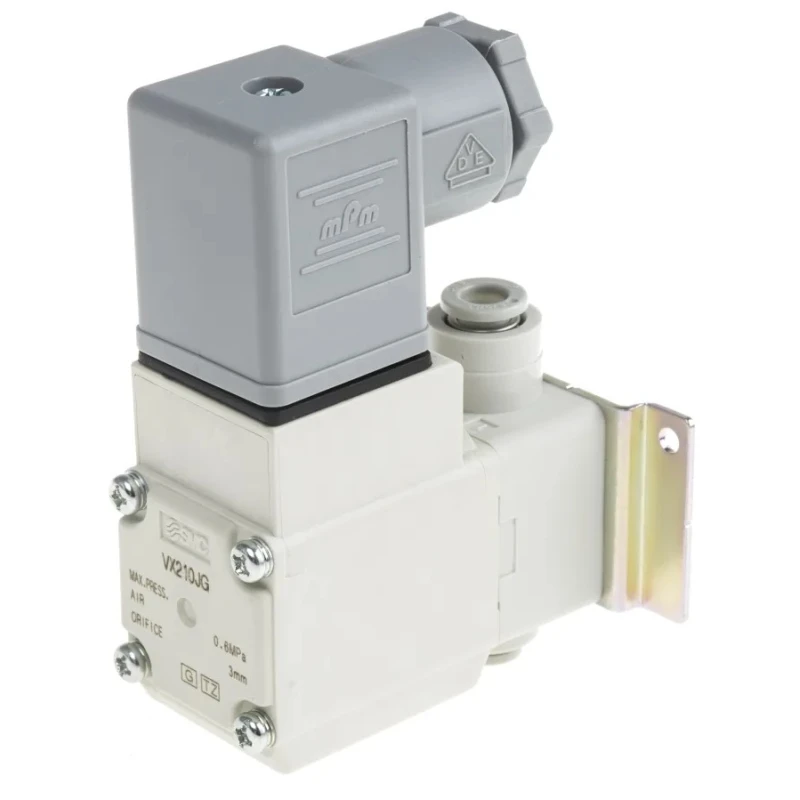

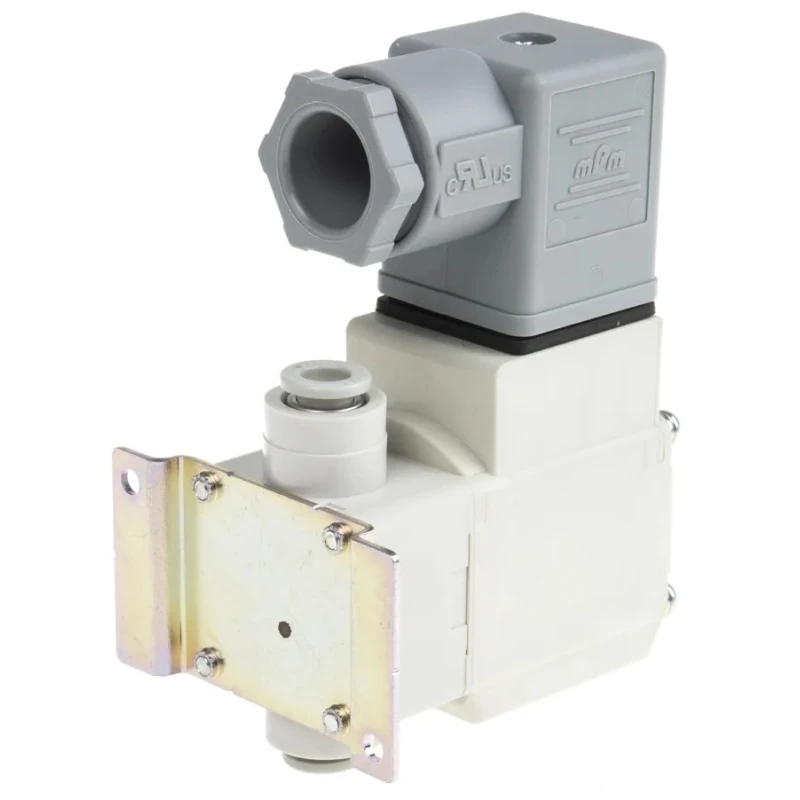

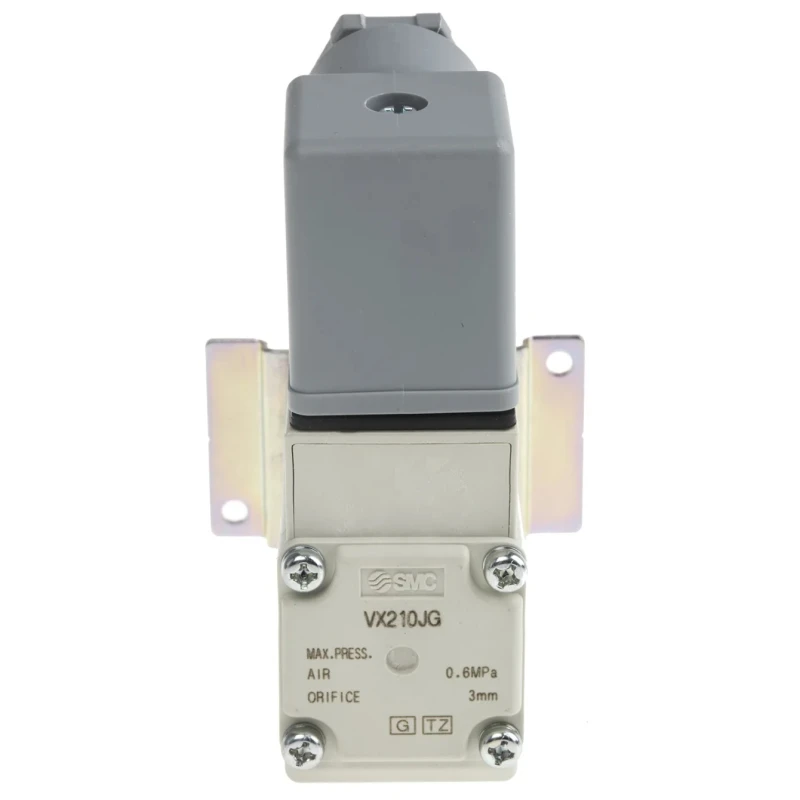

SMC Pneumatic Solenoid Valve 2/2 Solenoid/Spring Rc VX Series 24V dc VX210JG

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 2/2 Solenoid/Spring Rc VX Series 24V dc VX210JG



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Vietnam
Voltage	24V dc
Brand	SMC
Body Material	Resin
Maximum Operating Pressure	1 Mpa
Height	61mm
Length	84.5mm
Model	VX210JG
Width	46mm
Mount Type	Bracket
Series	VX
Number Of Ports	2
Maximum Operating Temperature	60°C
Port Type	Threaded
Number of Positions	2
Port Size	6 mm
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-20°C
Actuation Type	Solenoid/Spring
Standards/Approvals	CE, cULus, RoHS
Connection Thread Standard	Rc
Minimum Pilot Pressure	1MPa
Valve Function	2/2
Electrical Connection Type	DIN Connector
Maximum Pilot Pressure	2MPa
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	4.5W

Key Features

Offers 20% higher flow rate compared to conventional 2-port solenoid valves.
Constructed with a lightweight resin body reducing the product weight by 30%.
Compact design achieving 10% smaller size for easy installation.
Features a dust-tight and water-jet proof casing suitable for demanding environments.
Direct operated poppet type valve ensures reliable and quiet operation.
Equipped with rubber bumpers to minimize metal noise during operation.
Suitable for air, medium vacuum, water, or oil applications.
Operates at 24V DC voltage with a solenoid power consumption of 4.5W.

Product Description

SMC VX210JG Pneumatic Solenoid Valve 2/2 Solenoid/Spring Rc VX Series 24V dc is a high-performance valve manufactured for industrial, pneumatic, and fluid power applications. This valve delivers precise control over air, medium vacuum, water, or oil with a 20% increase in flow rate compared to conventional 2-port solenoid valves. Its resin body construction makes it 30% lighter and 10% smaller than previous versions, enhancing ease of installation and reducing system weight.

The valve features a dust-tight and water-jet proof casing that guarantees protection in challenging environments and ensures enhanced durability. Its direct operated poppet mechanism allows quieter operations, supported by integrated rubber bumpers that reduce metal noise during functioning.

Operating at a voltage of 24V dc and consuming 4.5W of power, this valve has two ports with Rc threaded connection standards and a female port gender. The valve's electrical interface uses a DIN connector, providing secure and standardized connections. It is engineered to withstand a maximum operating pressure of 1 MPa and pilot pressures between 1 and 2 MPa, supporting operations within a temperature range of -20°C to 60°C.

The VX series valve is bracket mounted and complies with CE, cULus, and RoHS standards, ensuring safety and quality compliance. It contains two positions and functions as a 2/2 valve, suitable for precise on/off fluid control in automated systems.

Offers 20% higher flow rate compared to conventional 2-port solenoid valves. Constructed with a lightweight resin body reducing the product weight by 30%. Compact design achieving 10% smaller size for easy installation. Dust-tight, water-jet proof casing ensures durability in harsh environments.

Direct operated poppet valve for quiet, reliable operation. Rubber bumpers reduce operational metal noise. Suitable for various fluid media including air, water, vacuum, and oil. Operates at 24V dc with DIN connector electrical interface.

This valve is ideal for industrial manufacturing, pneumatic automation, HVAC systems, water treatment, and other machinery requiring reliable and efficient pneumatic valve solutions. Explore our extensive selection of Pneumatic Solenoid Valves for optimized fluid control and operational efficiency.
