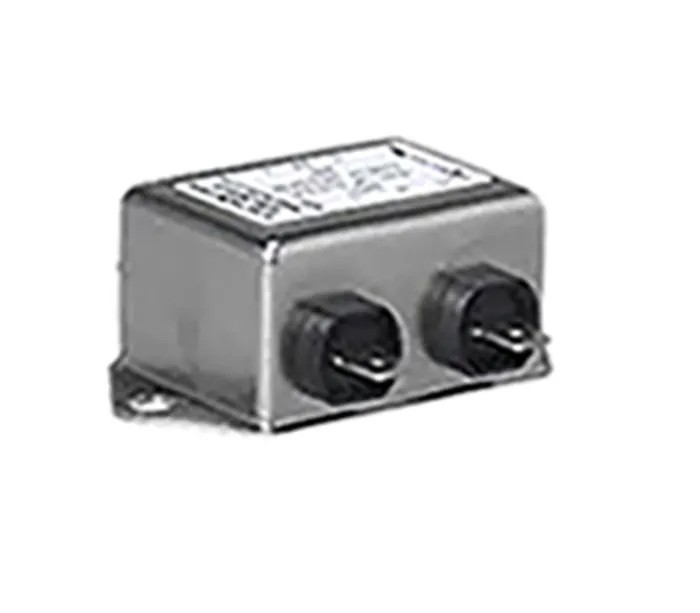

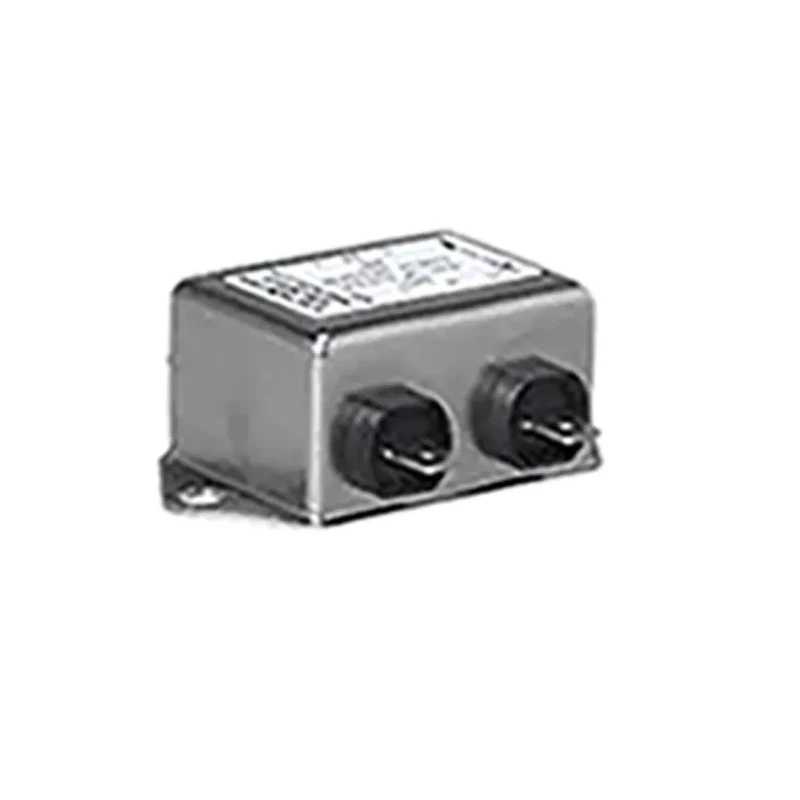

Schurter Single Phase RFI Filter 16A 250V AC 50Hz 60Hz Screw Mount Quick Connect FMBB NEO 5500.2637.01

Free Delivery in India | Lowest Global Shipping Charges

Schurter Single Phase RFI Filter 16A 250V AC 50Hz 60Hz Screw Mount Quick Connect FMBB NEO 5500.2637.01

Name: Schurter Single Phase RFI Filter 16A 250V AC 50Hz 60Hz Screw Mount Quick Connect FMBB NEO 5500.2637.01
Brand: Schurter
SKU: 385556
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Schurter Condition New

Specifications

Country of Origin	China
Brand	Schurter
Height	24.8mm
Length	64mm
Depth	44mm
Mount Type	Screw
Operating Frequency	50, 60Hz
Series	FMBB NEO
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	7.2mΩ
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	1
Leakage Current	1mA
Maximum Voltage	250V ac
Standards/Approvals	UL1283
Termination Style	Quick Connect
Power Loss	3.7W

Key Features

Compact single phase RFI filter with high-performance attenuation.
Rated maximum current of 16 amperes providing reliable filtering.
Maximum voltage rating of 250 volts AC suitable for a range of industrial applications.
Screw mount type with quick connect terminals for easy installation.
Operable at frequencies of 50 Hz and 60 Hz.
Robust metal housing offers durable protection in various environments.
Leakage current limited to 1mA ensuring safe operation.
Operating temperature range from -25°C to 100°C for versatile use.

Product Description

Schurter 5500.2637.01 is a professional single phase RFI filter from the FMBB NEO series, engineered to provide excellent symmetrical attenuation of electromagnetic interference. This filter is designed for a maximum current of 16A and a voltage rating of 250V AC, operating efficiently across 50Hz and 60Hz frequencies. It features a robust metal enclosure that protects the filter components and ensures durability for industrial, household, and medical equipment applications where high symmetrical interference suppression is required.

This filter is screw mounted and offers quick connect termination style for ease of installation and maintenance. It has a leakage current of only 1mA and can operate safely within a temperature range of -25°C to 100°C. The low resistance of 7.2 milliohms helps to minimize power loss, rated at 3.7 watts. It complies with UL1283 standards for EMI filters and power line protection, making it suitable for sensitive electronics and equipment needing reliable interference filtering.

Typical use cases include industrial machinery, medical devices, household appliances, and other electrical systems requiring reliable suppression of conducted interference to comply with regulatory EMI standards. The compact dimensions (64mm length, 44mm depth, 24.8mm height) enable integration into tight assembly spaces without compromising performance.

Compact design with high symmetrical electromagnetic interference attenuation. Robust full metal housing for enhanced durability and protection. Screw mount installation with quick connect terminals for convenience. Rated for 16 amperes maximum current at 250 volts AC.

Operates effectively at 50Hz and 60Hz power line frequencies. Maintains low leakage current and minimal power loss. Wide operating temperature range for various environments. Compliant with UL1283 standards for electromagnetic interference filtering.

Ideal for industrial, household, and medical equipment applications. Compact dimensions for space-saving installation.
