Schurter RFI Filter FMBB NEO 3 A 250V AC 50Hz 60Hz Screw Mount Quick Connect Single Phase 5500.2631.01

Free Delivery in India | Lowest Global Shipping Charges

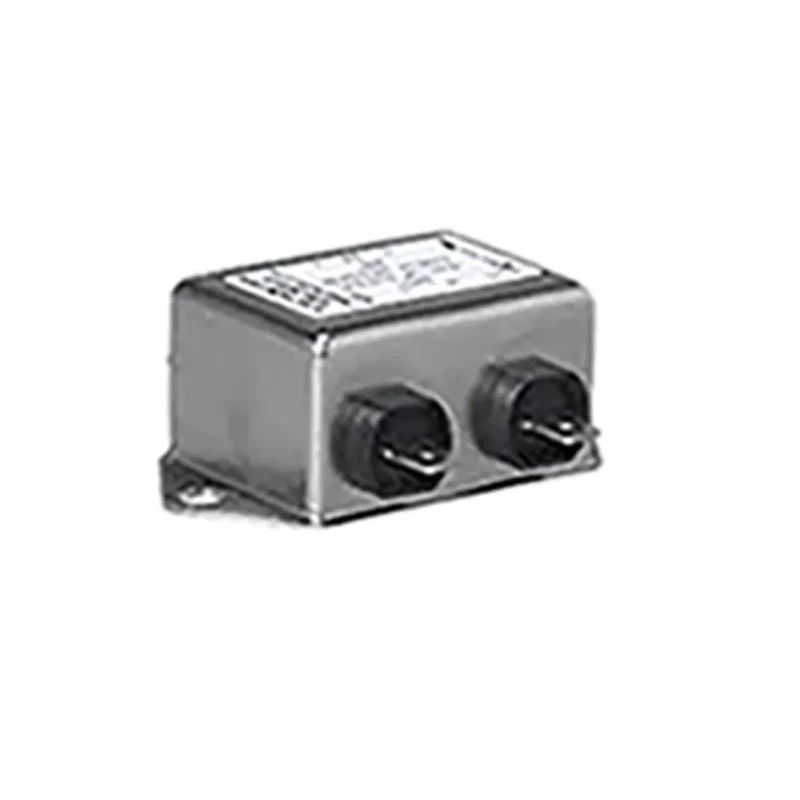

Schurter RFI Filter FMBB NEO 3 A 250V AC 50Hz 60Hz Screw Mount Quick Connect Single Phase 5500.2631.01

Name: Schurter RFI Filter FMBB NEO 3 A 250V AC 50Hz 60Hz Screw Mount Quick Connect Single Phase 5500.2631.01
Brand: Schurter
SKU: 385548
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Schurter Condition New

Specifications

Country of Origin	China
Brand	Schurter
Height	24.8mm
Length	64mm
Depth	44mm
Mount Type	Screw
Operating Frequency	50, 60Hz
Series	FMBB NEO
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	83mΩ
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	1
Leakage Current	500μA
Maximum Voltage	250V ac
Standards/Approvals	UL1283
Termination Style	Quick Connect
Power Loss	1.5W

Key Features

Rated maximum current is 3A and maximum voltage is 250V AC, supporting operation at 50Hz or 60Hz frequency.
Features a robust screw mount type and quick connect termination style for ease of installation.
Compact dimensions with length 64mm, height 24.8mm, and depth 44mm enclosed in a full metal housing.
Operates reliably in temperatures from -25°C to 100°C with low resistance of 83mΩ and leakage current of 500μA.
Certified to UL1283 standard and ensures power loss is minimal at 1.5W for energy-efficient filtering.
Single phase design with one stage filtering providing excellent symmetrical attenuation of EMI noise.
Ideal for use in equipment requiring protection from symmetrical interferences in industrial and medical environments.

Product Description

Schurter 5500.2631.01 FMBB NEO series is a professional range of single phase RFI filters designed to provide high-performance electromagnetic interference reduction. This RFI filter supports a maximum current of 3A and voltage of 250V AC, operating efficiently at frequencies of 50Hz and 60Hz.

The filter features a screw mounting type and quick connect termination for secure and convenient installation. Its compact and sturdy metal housing measures 64mm in length, 24.8mm in height, and 44mm in depth, making it suitable for integration in limited spaces.

Designed for industrial, household, and medical equipment where symmetrical interference is a critical factor, this single-phase, one-stage filter ensures excellent symmetrical attenuation of electromagnetic noise. It operates reliably within a temperature range of -25°C to 100°C, maintaining low resistance (83mΩ) and low leakage current (500μA), thus minimizing power loss to just 1.5W.

Rated maximum current of 3A and maximum voltage of 250V AC for versatile power line filtering. Screw mount and quick connect terminations facilitate secure and simple installation. Fully enclosed metal housing for durability and electromagnetic shielding.

Operates within wide temperature ranges from -25°C to 100°C for diverse environments. Compliance with UL1283 standard guarantees trusted safety and quality performance. Minimal power loss of 1.5W optimizes energy efficiency in sensitive electrical systems.

Single-phase, single-stage design offers reliable EMI filtering for industrial and medical applications.

This RFI filter is commonly applied in professional electrical and electronic equipment to mitigate symmetrical interference, thereby enhancing device reliability and reducing electromagnetic compatibility issues. Suitable environments include industrial plants, household appliances, and medical instrumentation where maintaining signal integrity and operational safety is essential.

Choose Schurter FMBB NEO 3 A 250V AC RFI filter for effective EMI suppression with quality assurance and durable construction. Explore more from the Power Line Filters category at EnvMart for comprehensive EMI filtering solutions.
