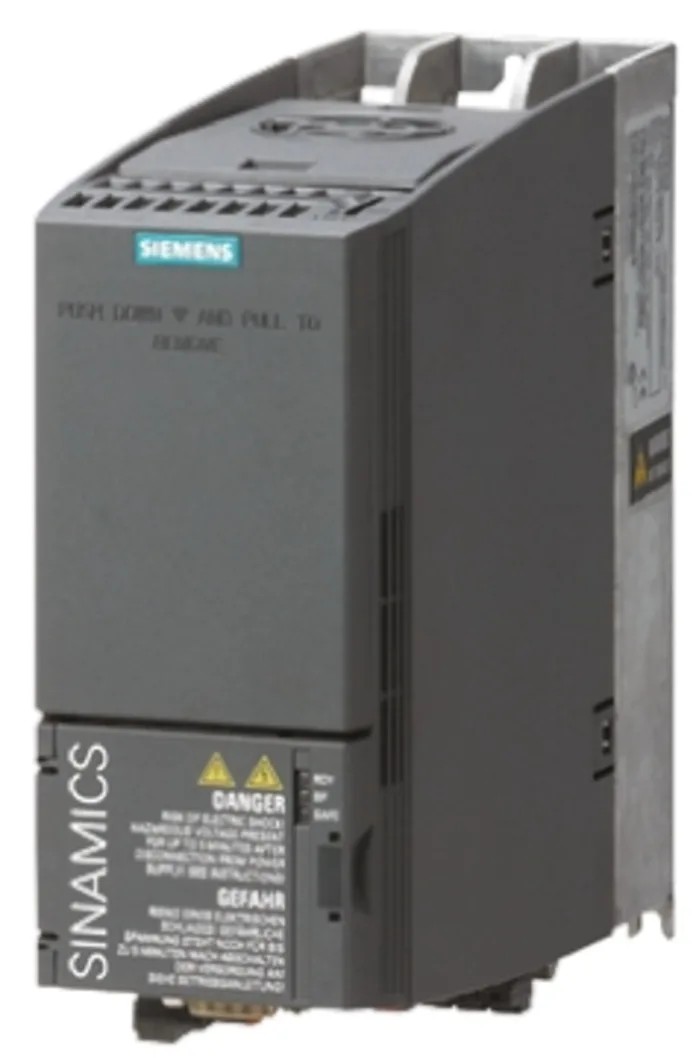

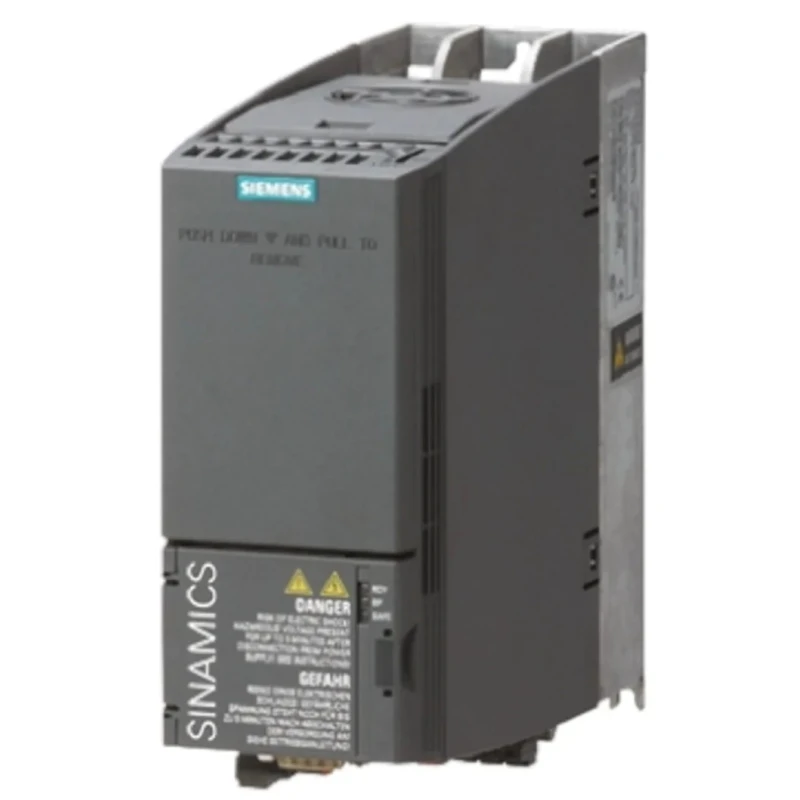

Siemens Inverter Drive 4 kW 3 Phase SINAMICS G120C Series 400V ac 8.8 A 6SL3210-1KE18-8AP1
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3210-1KE18-8AP1 |
| IP Rating | IP20 |
| Drive Type | PID Control |
| Mount Type | Panel |
| Overall Length | 196mm |
| Series | SINAMICS G120C |
| Overall Width | 73mm |
| Power Rating | 4kW |
| Maximum Operating Temperature | 40°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB connection |
| Number of Phases | 3 |
| Maximum Output Current | 8.8A |
| Standards/Approvals | CE, c-tick, cULus |
| Overall Depth | 203mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor |
Key Features
- Compact and rugged SINAMICS G120C series design for reliable performance.
- Operates at 400V AC supply with a maximum output current of 8.8 A.
- Panel mounting type with IP20 protection rating suitable for industrial environments.
- High output frequency up to 550Hz with PID control drive type.
- Compatible with asynchronous motors for diverse automation needs.
- Optimized parameter set and easy commissioning with integrated USB connection.
- Supports BOP-2 or IOP operator panels for flexible operation.
- Features energy-saving sensorless vector control with automatic flux reduction.
Product Description
Siemens 6SL3210-1KE18-8AP1 Inverter Drive from the SINAMICS G120C series is a high-performance device delivering 4 kW power and designed for 3-phase asynchronous motor control. Operating at a nominal voltage of 400V AC and capable of handling up to 8.8 A output current, this panel-mounted inverter drive is ideal for compact control cabinets and industrial automation setups.
The inverter features a robust IP20 rating ensuring protection in controlled environments. It supports output frequencies reaching 550 Hz with advanced PID control for precise motor speed regulation. With a side-by-side compact design, it optimizes space utilization and offers easy installation and maintenance.
Included are integrated USB communication capabilities for fast parameter configuration and the option to use basic or advanced operator panels (BOP-2 or IOP) for enhanced user interaction. This model incorporates an energy-efficient sensorless vector control strategy with automatic flux reduction, contributing to lower operational costs and increased equipment lifespan.
Safety is integral with an STO function, helping ensure reliable and secure machine operation. The inverter is designed to operate reliably within ambient temperatures from 0°C up to 40°C and has overall compact dimensions of 196 mm length, 73 mm width, and 203 mm depth.
Suitable for a wide range of industrial, manufacturing, and automation applications, this inverter drive enhances system efficiency and control. The product is made in the United Kingdom and complies with CE, c-tick, and cULus standards, assuring safety and international regulatory acceptance.
Compact SINAMICS G120C inverter design enables space-saving installation. High power density delivering reliable 4 kW output for automation tasks. PID control drive type for precise motor operation and speed control. Energy-saving sensorless vector control technology to reduce power consumption.
Panel mount type with IP20 protection suitable for harsh industrial conditions. User-friendly commissioning and maintenance with USB interface and cloning functions. Supports integration of BOP-2 or IOP operator panels for versatile control.
STO safety functionality integrated for enhanced operational security. Wide ambient temperature operating range from 0°C to 40°C. Dimensions: 196 mm length x 73 mm width x 203 mm depth. Explore more Inverter Drives and automation solutions at EnvMart for comprehensive industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 4 kW.
It has a maximum output current of 8.8 A.
This inverter drive operates at a nominal voltage of 400V AC.
The inverter drive supports output frequencies up to 550 Hz.
It is compatible with asynchronous motors.
The IP rating of this model is IP20.
The overall dimensions are 196 mm in length, 73 mm in width, and 203 mm in depth.
It operates reliably within ambient temperatures from 0°C up to 40°C.
It uses PID control for precise motor operation and speed regulation.
It features an integrated USB connection for communication and parameter configuration.
It includes a Safe Torque Off (STO) function for enhanced operational security.
It complies with CE, c-tick, and cULus standards.
