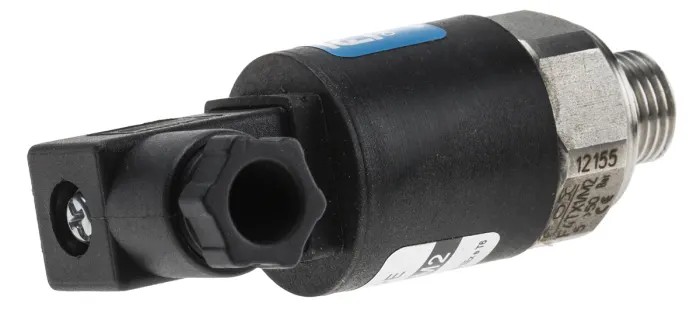

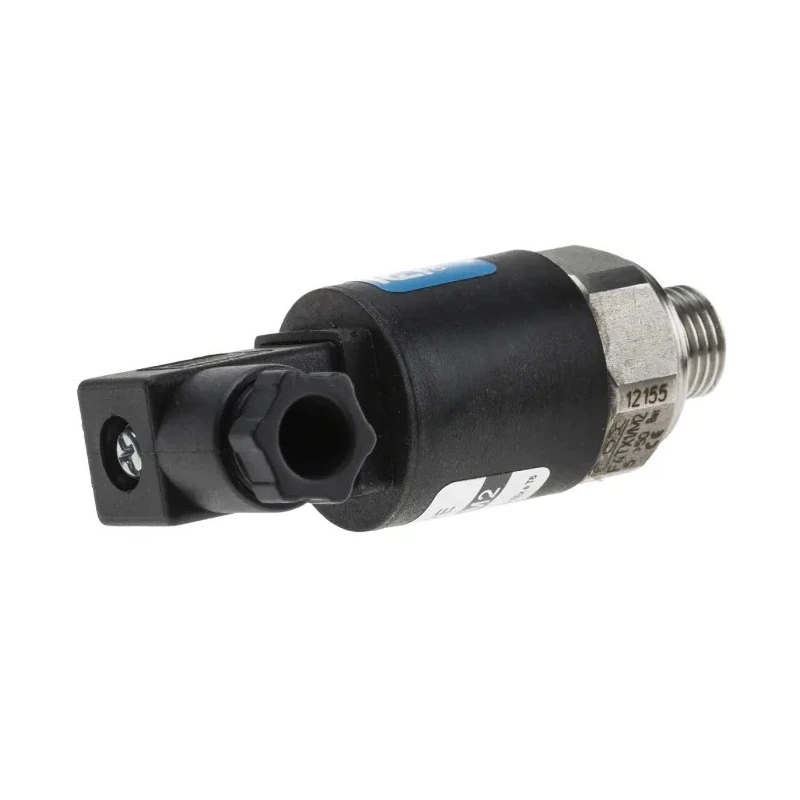

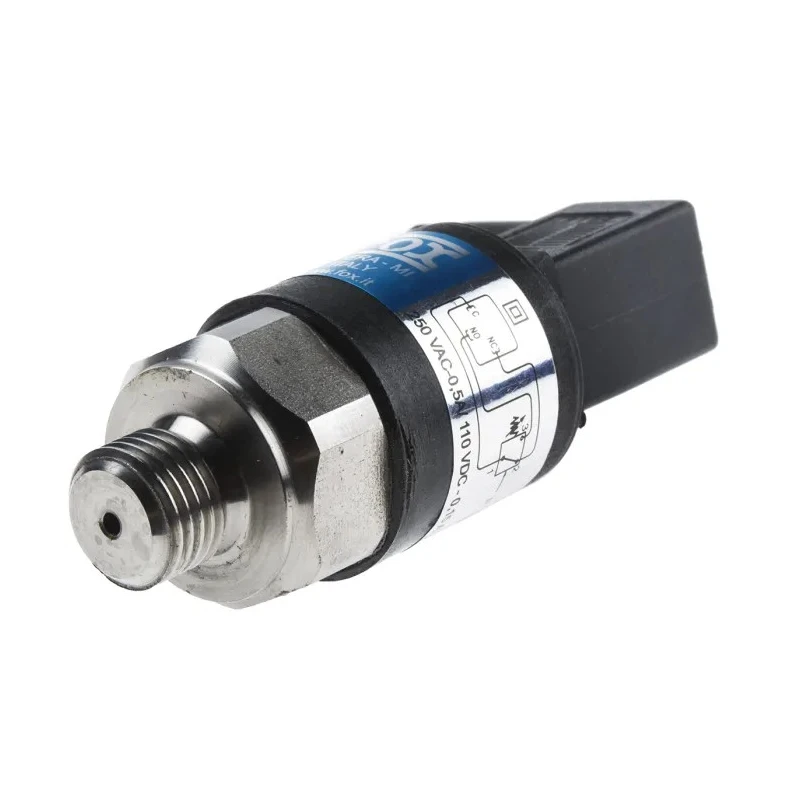

RS PRO Steel Housing Pressure Sensor 5 to 50 bar 25V IP65 Accuracy 4%FS 880-2283
Specifications
| Country of Origin | Italy |
|---|---|
| Accuracy | 4 %FS |
| Brand | RS PRO |
| Model | 880-2283 |
| IP Rating | IP65 |
| Mount Type | Any Position |
| Housing Material | Steel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Electrical Connection |
| Maximum Pressure Measurement | 50bar |
| Minimum Pressure Measurement | 5bar |
| Maximum Supply Voltage | 25V |
Key Features
- Pressure ranges from 5 to 50 bar for versatile applications.
- Steel housing ensures durability and corrosion resistance.
- Operates within a temperature range of -25°C to 85°C for harsh environments.
- Equipped with M2 (DIN plug) electrical connection for reliable signal output.
- Ingress Protection rating of IP65 for dust tight and water jet protection.
- Microswitch output with adjustable triggering pressure via rear screw.
- Suitable for mounting in any position providing installation flexibility.
- Built-in mechanical stop protects against overpressure beyond 50 bar.
Product Description
RS PRO 880-2283 is a robust pressure sensor integrating a steel housing suited for industrial and automation environments. It measures pressures from 5 bar minimum to 50 bar maximum with an accuracy of 4%FS, powered by a maximum supply voltage of 25V. This sensor is equipped with an electrical M2 (DIN plug) connection and features a BSP 1/4 inch input thread, providing compatibility with standard pipe fittings.
The sensor contains a microswitch that triggers upon reaching a user-adjustable pressure set point via a rear screw, enabling customizable activation required in control systems. The microswitch offers triple connection options, allowing use as normally open or normally closed contacts based on system design needs. A mechanical stop protects the switch from damage in case of overpressure, but it is recommended to operate within the 50 bar limit.
Operating temperature ranges from -25°C to +85°C, and the sensor supports any mounting orientation, enhancing installation versatility. Rated IP65, it is dust tight and protected against water jets, suitable for a wide range of industrial environments though not intended for immersion. The steel housing ensures resistance to wear and corrosion for extended service life.
Applications include hydraulic systems, pneumatic controls, manufacturing process monitoring, and automation equipment where reliable pressure detection and switching signals are vital. Originating from Italy, the product guarantees quality manufacturing standards.
Pressure range: 5 to 50 bar for diverse industrial uses. Steel housing construction for durability and protection. Adjustable microswitch triggering pressure improves system flexibility. M2 DIN plug provides secure electrical connectivity.
IP65 ingress protection rating suitable for outdoor and industrial environments. Wide operating temperature range from -25°C to 85°C. BSP 1/4 inch fitting compatible with standard piping. Mechanical stop feature for safety against overpressure.
Mountable in any position to suit application requirements. Ideal for hydraulic, pneumatic, automation, and industrial control systems. Explore high-quality Pressure Sensors and control equipment at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor measures pressures from 5 bar to 50 bar, making it suitable for various industrial applications.
It has an accuracy of 4% of full scale (FS), providing reliable pressure readings for industrial use.
This sensor operates within a temperature range of -25°C to +85°C, allowing it to function effectively in harsh environments.
It features an M2 (DIN plug) electrical connection, ensuring secure and reliable signal output.
The sensor has an IP65 rating, meaning it is dust tight and protected against water jets, suitable for industrial environments.
Yes, it is designed to be mountable in any position, providing flexibility for installation in various applications.
The housing of this sensor is made of steel, ensuring durability and resistance to corrosion.
The maximum supply voltage for the RS PRO 880-2283 is 25V, which powers the sensor's operation.
The microswitch can be configured for normally open or normally closed contacts, depending on the system design requirements.
It includes a mechanical stop that protects against overpressure beyond 50 bar, enhancing safety during operation.
This product originates from Italy, ensuring adherence to quality manufacturing standards.
It is suitable for hydraulic systems, pneumatic controls, manufacturing process monitoring, and automation equipment.
