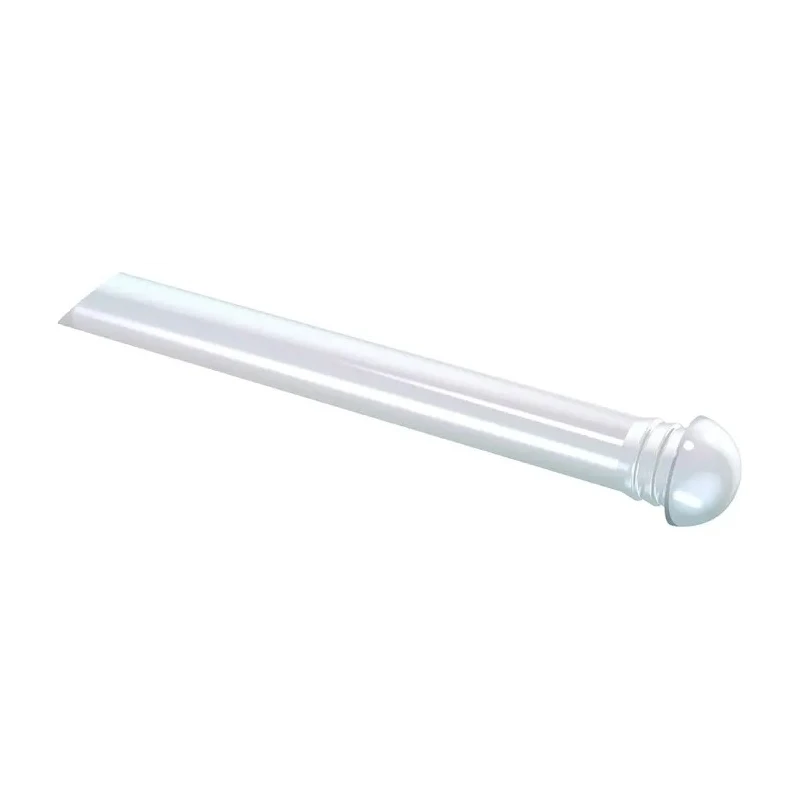

Mentor GmbH Panel Mount 1-Way Straight Rigid LED Light Pipe Clear Yellow 1293.7001

Mentor GmbH 1293.7001 is a panel mount 1-way straight rigid LED light pipe designed primarily for front panel mounting and optimized for surface-mounted device LEDs, such as OSRAM's TOPLED and CHIPLED families. This robust light guide efficiently transmits light from PCB-mounted LEDs to desired external user interfaces with minimal luminance loss and no light bleed to adjacent elements.

Made of clear PC UL94 plastic, this light pipe features a dome-shaped lens with a clear exterior and yellow LED light color, measuring 45.5mm in length with a 4mm inside diameter and 5.2mm outside diameter. Its straight orientation and panel mount type suit numerous industrial control, medical device, security, and communication applications. Moreover, the product boasts an impressive IP68 waterproof rating, ensuring excellent durability and resistance in harsh or damp environments, with reliable operation between -40°C and +85°C ambient temperatures.

The diagonal inject face positioned at a 45° angle improves optical efficiency by closely aligning with the LED source. As a product manufactured in Germany, the 1293.7001 adheres to tight quality standards and environmental compliance including RoHS certification.

This light pipe offers an effective solution for panel-mounted LED indication or lighting needs, providing simple installation by push-fitting into panel holes and enabling various design options. Typical use cases include industrial automation, healthcare instrumentation, security systems, and communication devices where reliable, high-quality panel illumination is essential.

The light pipe is rigid with a 45.5mm length for precise light transmission. Features a straight orientation suitable for direct panel mounting. Constructed from clear PC UL94 rated plastic material ensuring flame resistance and durability.

Includes a dome-shaped light pipe with clear lens color and yellow LED color. Designed with a 4mm inside diameter and a 5.2mm outside diameter to fit standard SMD LEDs. Offers an IP68 waterproof rating for harsh environment resistance.

Operates reliably within an ambient temperature range of -40°C to +85°C. Complies with RoHS standards to ensure environmental safety. Ideal for industrial control, medical devices, security, and communication equipment applications.

Made in Germany with strict quality control and precision manufacturing. Explore more LED Lighting Components from EnvMart to find compatible LED light pipes and accessories that meet your technical and industrial requirements.
