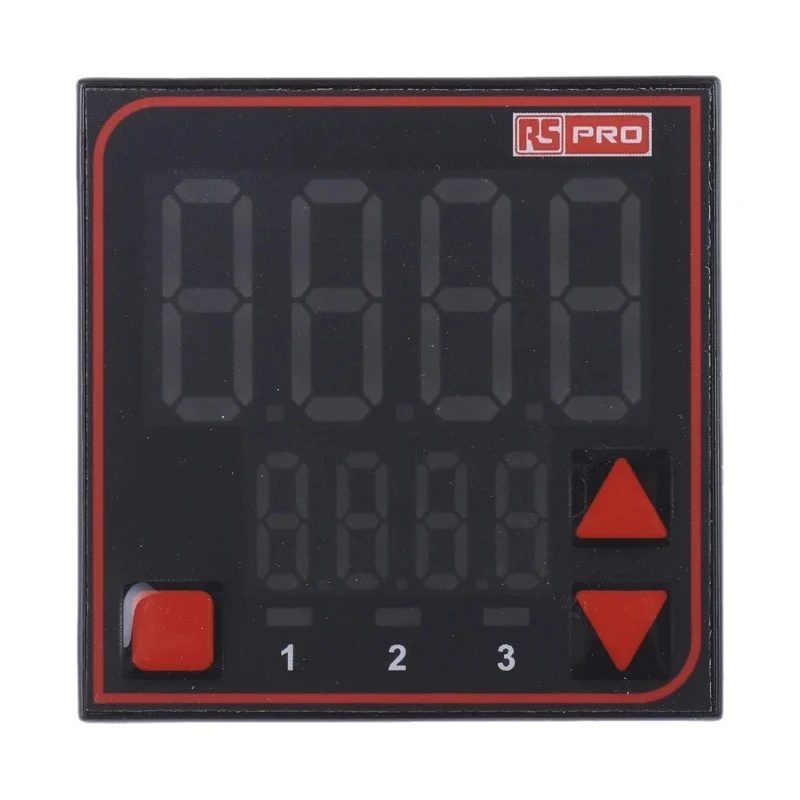

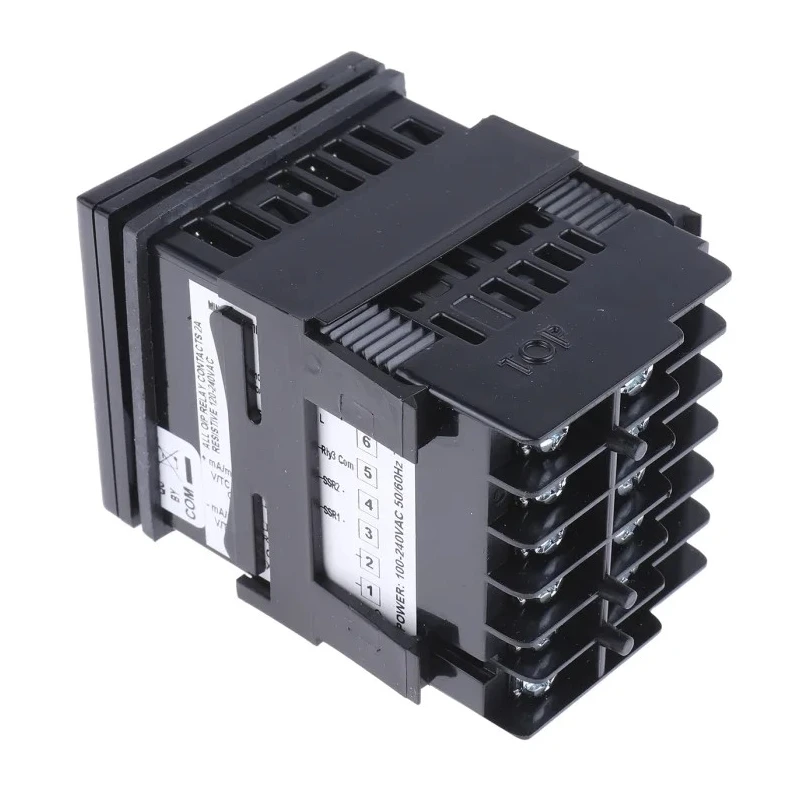

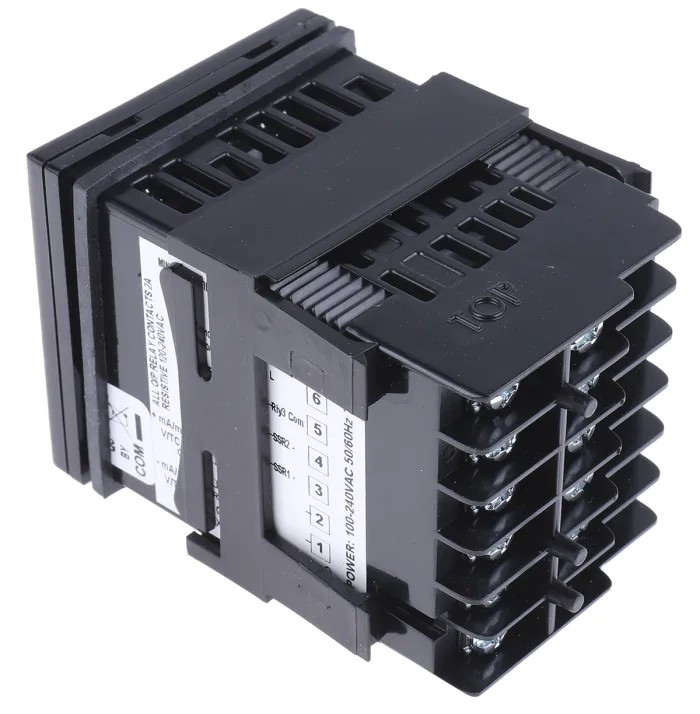

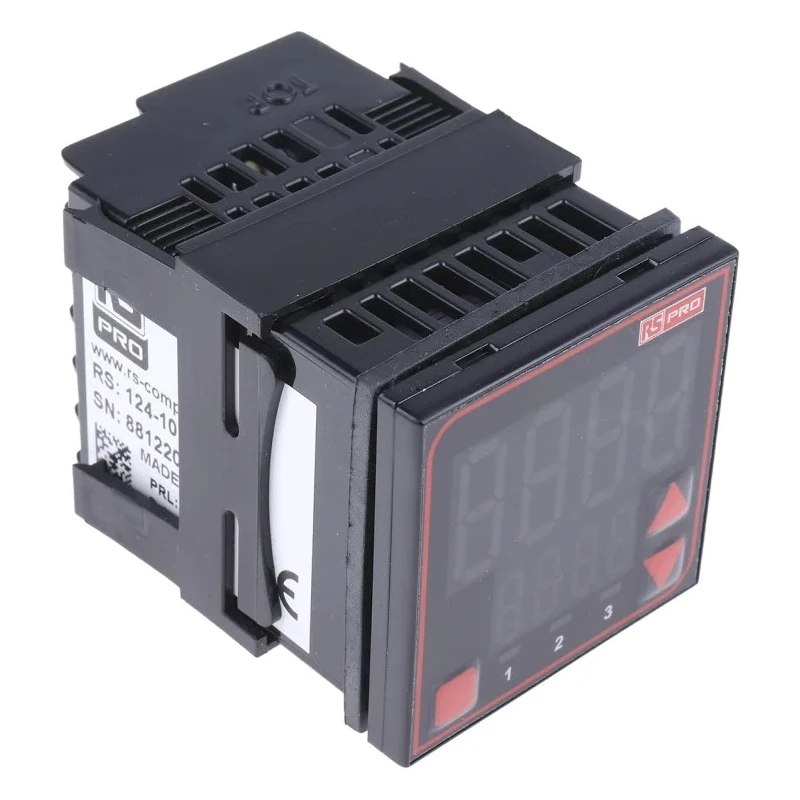

RS PRO Panel Mount PID Temperature Controller, 3 Output SSR, Relay, 240V AC, Dual 4 Digit LED Display 124-1070
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Display Type | Dual 4 Digit LED |
| Brand | RS PRO |
| Length | 48mm |
| Model | 124-1070 |
| IP Rating | IP20, IP65 |
| Width | 48mm |
| Mount Type | Panel Mount |
| Output type | SSR, Relay |
| Series | RS PRO |
| Input Type | Analogue, B Type Thermocouple, K Type Thermocouple, L Type Thermocouple, N Type Thermocouple, PT100, R Type Thermocouple, S Type Thermocouple, T Type Thermocouple, C Type Thermocouple, J Type Thermocouple |
| Maximum Operating Temperature | 55°C |
| Control Type | PID |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 2A |
| Number of outputs | 3 |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 240V ac |
| Panel Depth | 67mm |
Key Features
- The controller provides accurate PID control for stable process temperatures.
- Three outputs configurable as solid-state relay (SSR) or mechanical relay.
- Panel mount design with compact 48 mm by 48 mm dimensions and 67 mm depth.
- Supports various thermocouple inputs including types B, K, J, N, R, S, T and PT100 sensor.
- Dual 4-digit LED display enables clear monitoring and easy configuration.
- Operational temperature range from 0°C to 55°C, suitable for industrial environments.
- IP20 and IP65 rated for dust-tight and splash-proof protection.
- Compliance with EN 61010-1 and EN 61326 standards for electrical safety and emissions.
Product Description
RS PRO 124-1070 Panel Mount PID Temperature Controller features a robust and reliable design for precise temperature management in industrial and process control applications. This device is equipped with three output options that can be configured as either a solid-state relay (SSR) or a mechanical relay, allowing versatility in controlling heating or cooling equipment.
The compact panel mount unit measures 48 mm in length and width with a panel depth of 67 mm, making it suitable for integration into control panels. It supports a wide range of analogue inputs from thermocouples types B, C, J, K, L, N, R, S, T and PT100 sensors, enabling broad applicability to various industrial temperature sensing requirements.
Equipped with a dual 4-digit LED display, the controller provides clear visualization of process parameters and setpoints. Operating within a temperature range of 0°C to 55°C, it is designed to function reliably in typical industrial environments. The device is IP20 and IP65 rated, ensuring protection against dust ingress and water splashes, making it suitable for harsh conditions.
Meeting EN 61010-1 safety requirements and EN 61326 electrical noise immunity and emissions standards, this RS PRO product assures compliance with international quality and safety benchmarks. The user interface includes a straightforward setup menu with 10 configurable parameters, facilitating quick commissioning and adjustment of control settings.
The controller provides accurate PID control for stable temperatures. Three configurable outputs for SSR or relay operation. Panel mount, compact 48 x 48 mm size with 67 mm depth. Supports multiple thermocouple and PT100 sensor input types.
Dual 4-digit LED display for clear monitoring. Operating temperature range from 0°C to 55°C. IP20 and IP65 ingress protection ratings. Certification to EN 61010-1 and EN 61326 standards. User-friendly interface with 10 configurable parameters.
Ideal for industrial process temperature control.
Perfectly suited for industrial, manufacturing, HVAC, and laboratory use, this PID temperature controller ensures optimal temperature regulation to maintain process stability and product quality. Its robust build and certifications make it a dependable choice for professional automation control systems.
Explore more high-quality Temperature Controllers and industrial automation products by RS PRO and other leading brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features PID control for precise temperature management.
The maximum operating temperature is 55°C.
It has three outputs that can be configured as either solid-state relay (SSR) or mechanical relay.
It supports a wide range of thermocouples including types B, K, J, N, R, S, T, and also PT100 sensors.
The unit has a compact size of 48 mm in length and width, with a depth of 67 mm.
It has an IP20 and IP65 rating, providing protection against dust and water splashes.
The operational temperature range is from 0°C to 55°C.
It features a dual 4-digit LED display for clear monitoring of process parameters.
It complies with EN 61010-1 for safety and EN 61326 for electrical noise immunity and emissions.
The maximum supply voltage is 240V AC.
Yes, it includes a straightforward setup menu with 10 configurable parameters for easy adjustment.
The country of origin for this temperature controller is the United Kingdom.
