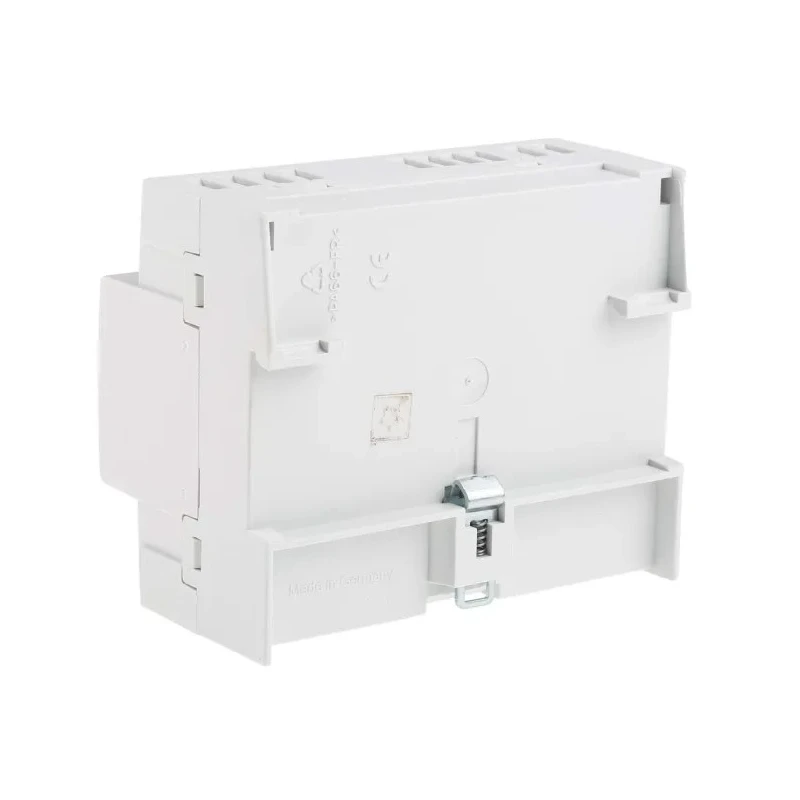

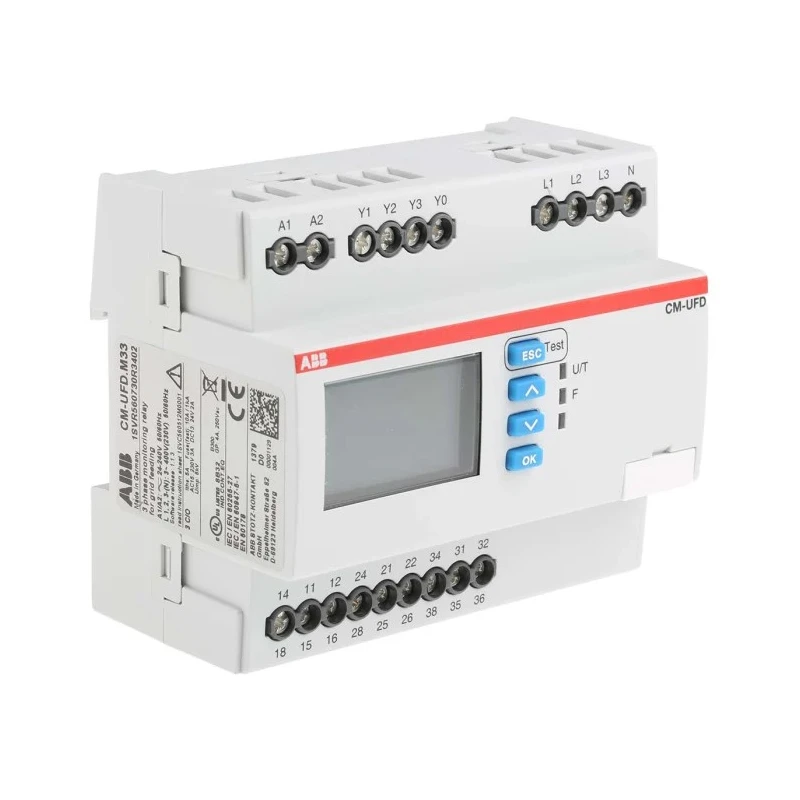

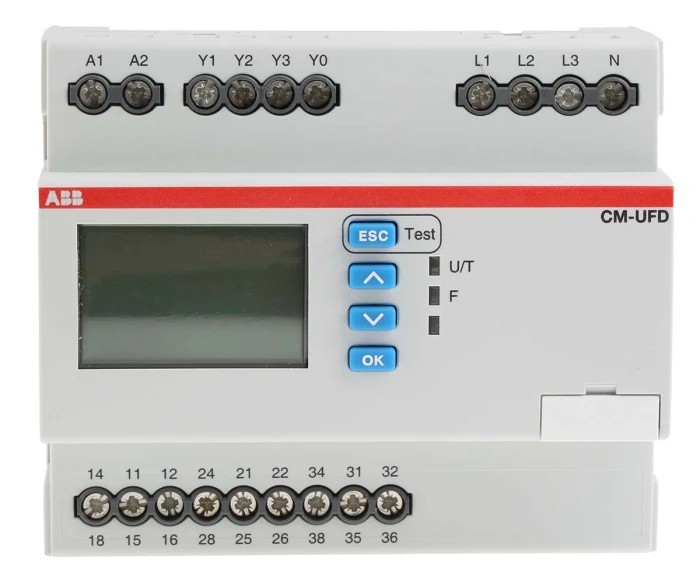

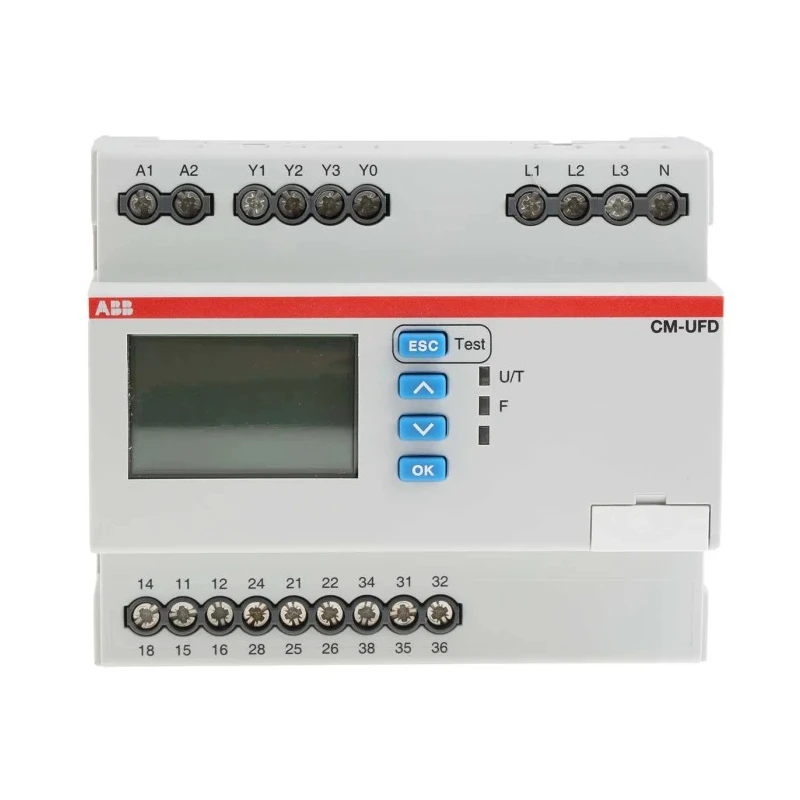

ABB Monitoring Relay, 1 and 3 Phase, SPDT Contacts, DIN Rail Mount, 24V AC/DC, 240V AC, CM-UFD 1SVR560730R3402 CM-UFD.M33
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Height | 90mm |
| Length | 108mm |
| Model | 1SVR560730R3402 CM-UFD.M33 |
| IP Rating | IP50, IP20 |
| Width | 67mm |
| Mount Type | DIN Rail |
| Series | CM-UFD |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Switching Voltage | 24V ac |
| Contact Current | 6.4mA |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Equipped with SPDT contacts for versatile switching capabilities.
- Compatible with single and three-phase systems, ensuring broad application.
- Features DIN rail mounting for convenient installation.
- Operates with supply voltages of 24 V DC and 24/240 V AC.
- Durable mechanical life rated at 30 million switching cycles.
- Displays clear backlit LCD for easy configuration and monitoring.
- Rated IP20 for touch protection and object ingress resistance.
- Operates within -20°C to 60°C temperature range.
Product Description
ABB 1SVR560730R3402 CM-UFD.M33 Monitoring Relay is a high-performance device designed for monitoring voltage and frequency in single-phase and three-phase electrical systems. This relay features a SPDT contact configuration and supports a wide operating voltage range of 24 V DC and 24/240 V AC, making it versatile for various industrial applications.
The device mounts easily on DIN rails, simplifying the installation process in electrical panels. Featuring a sturdy housing rated IP20, it offers protection against touch and foreign objects larger than 12 millimeters. The large backlit LCD enables intuitive parameter setup and real-time monitoring, enhancing operational reliability.
With a mechanical lifespan of 30 million switching cycles, this relay is engineered for durability and long-lasting industrial use. It accurately detects voltage anomalies including under-voltage, over-voltage, over-frequency, and under-frequency conditions, making it essential for power generation and distribution systems.
Its compact dimensions (90 mm height, 108 mm length, and 67 mm width) and low net weight of 0.306 kg ensure minimal space usage and reduced DIN rail load. The relay’s screw terminal connection ensures secure and stable wiring.
Common application areas include electricity transmission and distribution networks, manufacturing plants, process control, and packaging equipment where reliable electrical monitoring is critical for operational safety and efficiency.
Equipped with SPDT contacts for versatile switching capabilities. Compatible with single and three-phase systems, ensuring broad application. Features DIN rail mounting for convenient installation. Operates with supply voltages of 24 V DC and 24/240 V AC.
Durable mechanical life rated at 30 million switching cycles. Displays clear backlit LCD for easy configuration and monitoring. Rated IP20 for touch protection and object ingress resistance. Operates within -20°C to 60°C temperature range.
Ideal for electricity transmission, manufacturing plants, and process equipment monitoring. Explore the comprehensive range of ABB Monitoring Relays and related electrical components on EnvMart to optimize your industrial installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with supply voltages of 24 V DC and 24/240 V AC, making it suitable for various applications.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching capabilities.
The relay has dimensions of 90 mm in height, 108 mm in length, and 67 mm in width.
It can operate at a maximum temperature of 60°C, suitable for various industrial environments.
This model is designed for DIN rail mounting, which simplifies the installation process in electrical panels.
It has a mechanical life rated at 30 million switching cycles, indicating its durability for industrial use.
The relay features screw terminal connections, ensuring secure and stable wiring.
It is rated IP20, providing touch protection and resistance against objects larger than 12 millimeters.
The relay operates within a temperature range of -20°C to 60°C, accommodating various environmental conditions.
It is commonly used in electricity transmission and distribution networks, manufacturing plants, and process control systems.
The contact current for this model is rated at 6.4 mA, which is suitable for its intended applications.
Yes, it features a clear backlit LCD that allows for easy configuration and real-time monitoring of parameters.
