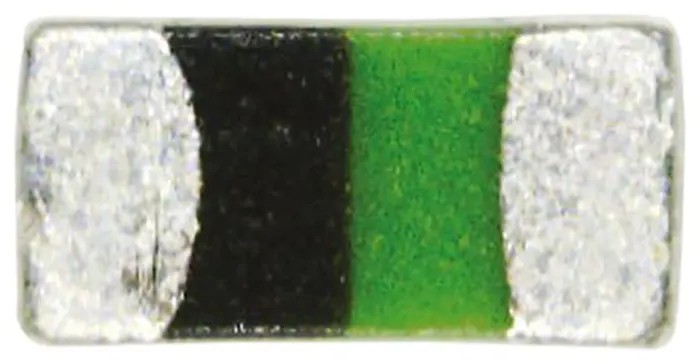

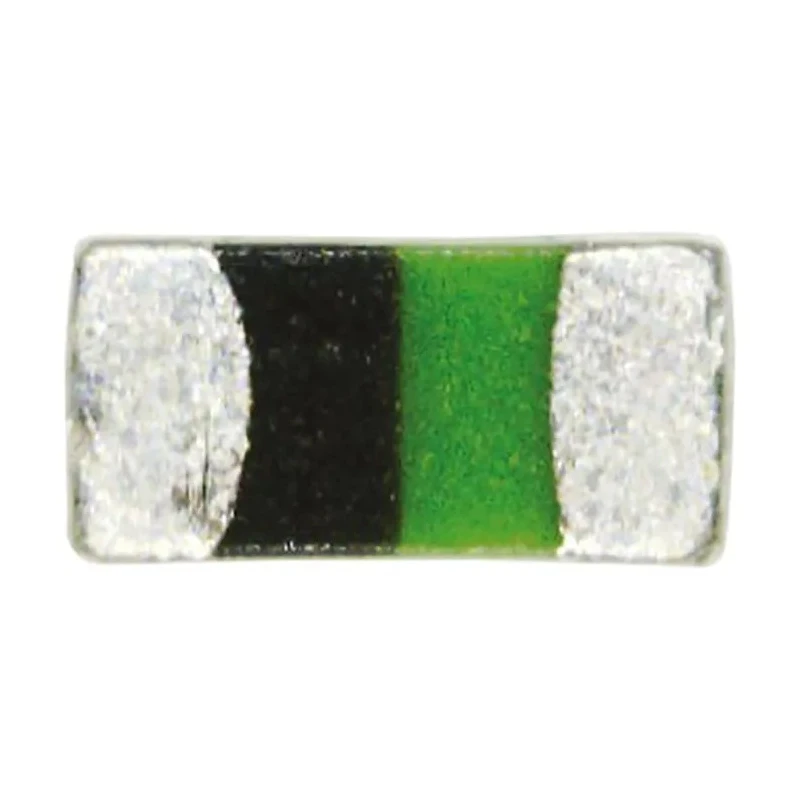

Murata High Frequency 1005 Unshielded Wirewound Surface Mount Inductor 0.056μH ±5% 200mA Idc Q:8 LQG15HN

Free Delivery in India | Lowest Global Shipping Charges

Murata High Frequency 1005 Unshielded Wirewound Surface Mount Inductor 0.056μH ±5% 200mA Idc Q:8 LQG15HN

Name: Murata High Frequency 1005 Unshielded Wirewound Surface Mount Inductor 0.056μH ±5% 200mA Idc Q:8 LQG15HN
Brand: Murata
SKU: 383204
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	0.5mm
Length	1mm
Model	LQG15HN
Depth	0.5mm
Packaging	Paper Tape
Series	LQG15HN
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Inductance	0.056μH
Package/Case	1005
Maximum DC Current	200mA
Pin Count	2
Maximum DC Resistance	1200mΩ
Inductance Tolerance	±5 %
Termination Style	Solder
Maximum Self Resonant Frequency	800MHz
Minimum Quality Factor	8
Inductor Construction	Multilayer

Key Features

Features a multilayer construction for excellent high frequency stability.
Rated for maximum operating temperature up to 125°C.
Compact 1005 package size with 1mm length and 0.5mm height and depth.
Unshielded wirewound design suitable for RF circuit matching and WLAN applications.
Offers a minimum quality factor of 8 and a maximum self-resonant frequency of 800MHz.
Constructed with solder termination style for reliable PCB mounting.
Maximum DC resistance of 1200mΩ ensuring efficient current handling.
RoHS compliant and molded multilayer inductor construction.

Product Description

Murata LQG15HN Surface Mount Inductor 1005 package, featuring a 0.056μH inductance value with a tolerance of ±5%, designed for high frequency applications. This wirewound unshielded inductor utilizes multilayer construction, delivering a balance between size, rated current, and inductance tolerance.

Operating reliably up to 125°C, the inductor supports a maximum DC current of 200mA, making it ideal for RF circuit matching, WLAN networks, chokes, and mobile communication equipment resonance circuits. Its compact dimensions of 1mm length, 0.5mm height, and 0.5mm depth make it suitable for dense PCB layouts.

The component provides a minimum quality factor of 8 and a maximum self-resonant frequency of 800MHz, ensuring excellent performance in high frequency circuits. Terminated with solder style pins, this inductor integrates seamlessly with surface mount assembly processes.

Designed and manufactured in Japan, this Murata inductor is RoHS compliant and constructed with a molded multilayer inductor design, providing high reliability for demanding industrial and commercial electronic applications.

Multilayer construction suitable for high frequency stability. Compact 1005 package size with precise dimensions. Rated for maximum operating temperature of 125°C. Maximum DC current 200mA with a low DC resistance of 1200mΩ.

Ideal for RF, WLAN, chokes, and mobile communication resonance applications. Unshielded wirewound type enabling efficient inductance. Solder termination for reliable PCB mounting. High quality factor and self-resonant frequency optimizes performance.

Manufactured in Japan ensuring superior quality standards. Compliant with environmental regulations including RoHS. Explore the comprehensive range of Surface Mount Inductors and other Murata components available at EnvMart for advanced electronics design and industrial applications.
