Microchip Split Gate 64 MB SPI Flash Memory 8-Pin SOIJ SST26VF064B-104I/SM

Free Delivery in India | Lowest Global Shipping Charges

Microchip Split Gate 64 MB SPI Flash Memory 8-Pin SOIJ SST26VF064B-104I/SM

Name: Microchip Split Gate 64 MB SPI Flash Memory 8-Pin SOIJ SST26VF064B-104I/SM
Brand: Microchip
SKU: 383080
Price: 4.93 USD
Availability: InStock



Category Flash Memory Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.98mm
Length	5.26mm
Cell Type	Split Gate
Model	SST26VF064B-104I/SM
Width	5.25mm
Mount Type	Surface
Series	SST26VF064B
Maximum Operating Temperature	85°C
Package Type	SOIJ
Minimum Operating Temperature	-40°C
Memory size	64MB
Interface Type	SPI
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.7V
Supply Current	20mA
Maximum Clock Frequency	104MHz
Organisation	8M x 8 Bit
Number of Bits per Word	8
Maximum Random Access Time	3ns
Number of Words	8K

Key Features

Features high speed SPI interface with 8-pin SOIJ package suitable for surface mounting.
Operates between 2.7V and 3.6V supply voltage ensuring low power consumption.
Supports sector and block erase with fast erase times typical of SuperFlash® technology.
Operates reliably between -40°C and 85°C operating temperature range.
Offers a maximum random access time of 3 ns for fast data retrieval.
Includes automotive grade AEC-Q100 certification for quality and robustness.
Compact size with dimensions 5.26 mm length, 5.25 mm width, and 1.98 mm height.
Supports Serial Quad I/O (SQI) interface for high performance with low latency execute-in-place capability.

Product Description

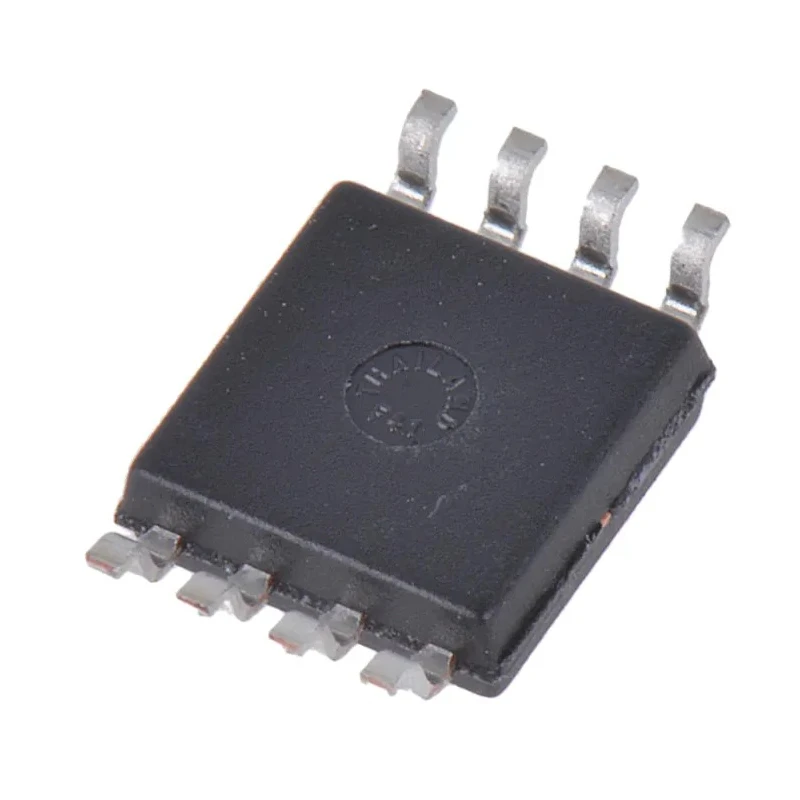

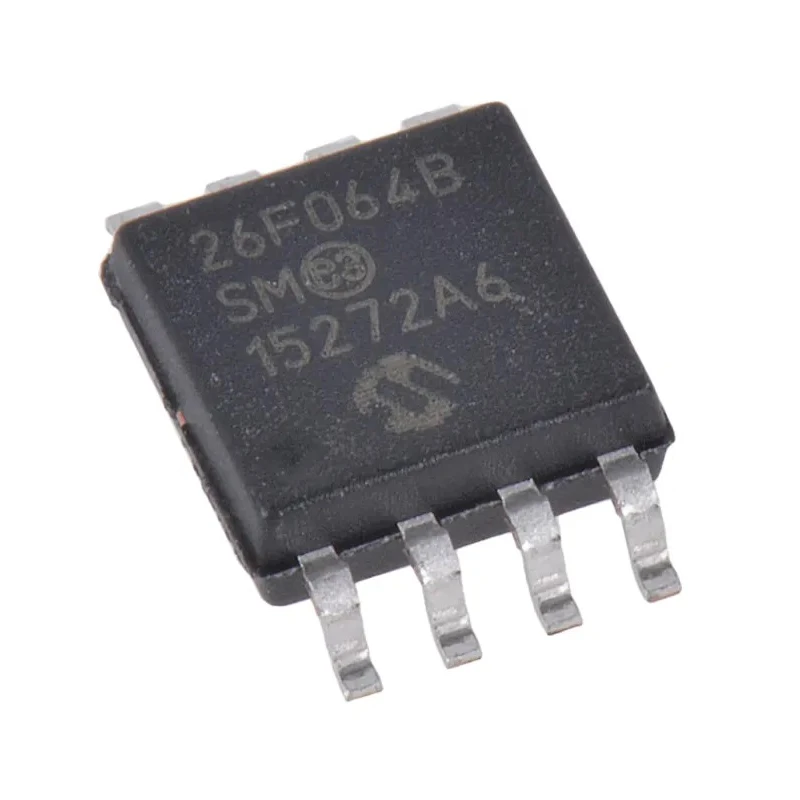

Microchip SST26VF064B-104I/SM is a split gate 64 MB SPI flash memory device packaged in an 8-pin SOIJ suitable for surface mount applications. This semiconductor component features a maximum clock frequency of 104 MHz and operates within a supply voltage range of 2.7V to 3.6V. Designed with Microchip’s SuperFlash® technology, it delivers fast erase times and low power consumption, making it ideal for embedded systems requiring efficient, reliable memory storage.

The device supports x1, x2, and x4 SPI protocols and includes low-latency execute-in-place (XIP) capability, reducing the need for extensive processor buffer memory. With an access time of 3 nanoseconds, it ensures rapid data retrieval, critical for industrial, automotive, and consumer electronics applications.

Its operating temperature range from -40°C to 85°C and automotive standard AEC-Q100 certification make this flash memory suitable for demanding environments including automotive electronics, industrial control systems, and embedded computing platforms. The compact SOIJ package dimensions (5.26 mm length, 5.25 mm width, 1.98 mm height) enable dense PCB designs.

High speed Serial Peripheral Interface (SPI) with up to 104 MHz clock. Low power active read current of approximately 15 mA and standby current around 15 μA. Sector and block erase times are typically 18 ms, with full chip erase around 35 ms.

Supports SuperFlash® technology for improved erase performance. Compatible with traditional SPI command sets for easy integration. Ideal for industrial automation, automotive systems, laboratory instruments, and embedded computing applications.

Compact 8-pin SOIJ surface mount package for space-constrained designs.

This Microchip flash memory series SST26VF016B/032B/064B provides flexible, high-performance non-volatile storage options widely used in memory, semiconductor, and electronics industries.
