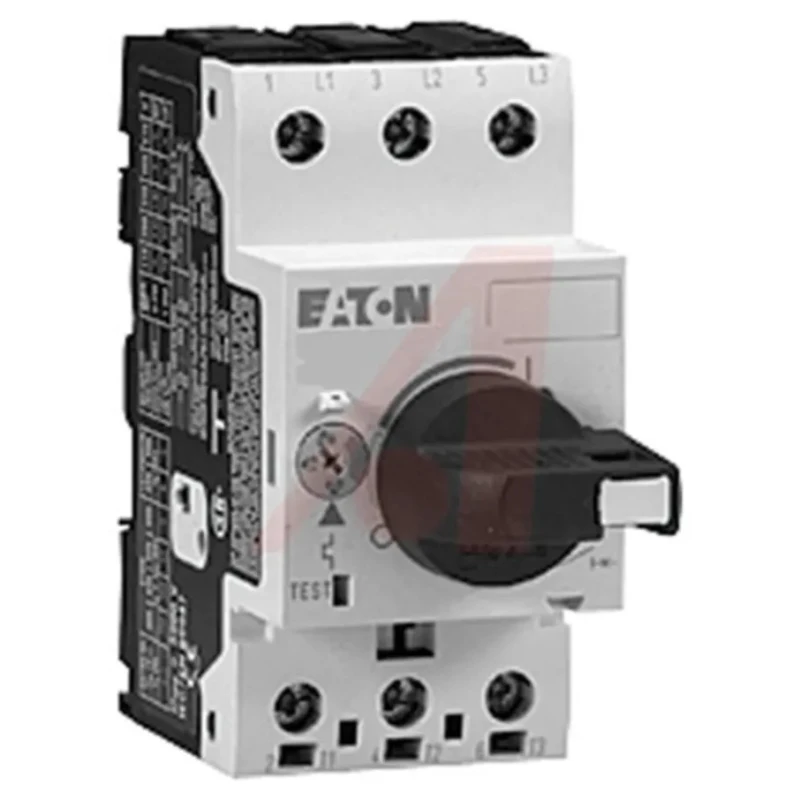

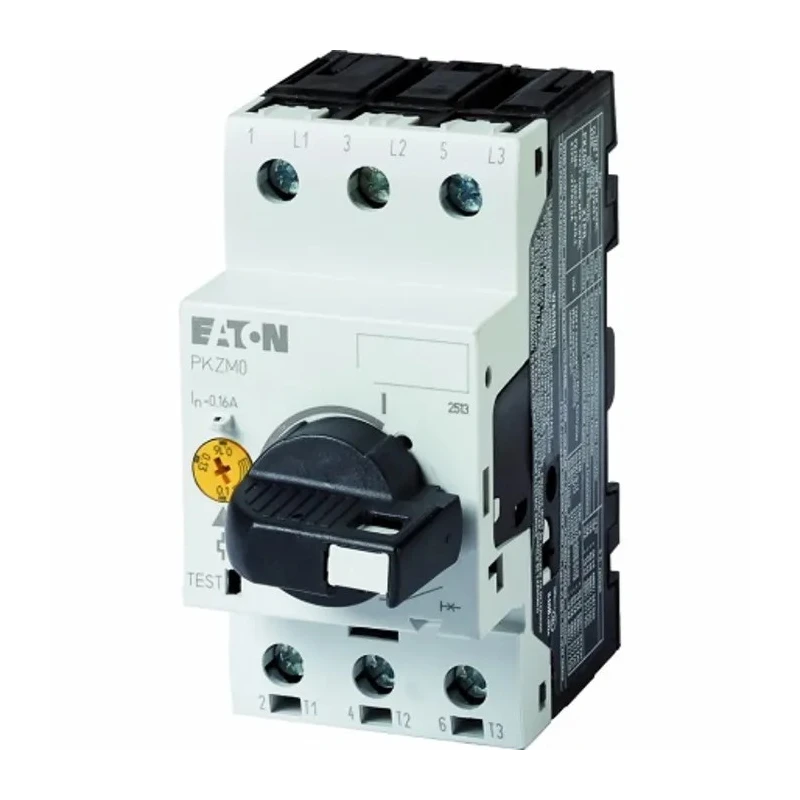

Eaton Motor Protection Circuit Breaker PKZM 0 Series, Current Rating 10A and 6.3A, Supply Voltage 690V 265340 PKZM0-10/AK

The Eaton 265340 PKZM0-10/AK Motor Protection Circuit Breaker is designed for effective protection of electric motors in industrial, manufacturing, automation, and HVAC applications. This device safeguards your motors against overload conditions and short circuits with a precise adjustable overload release and fixed short circuit trip features.

Its thermoplastic casing provides durability and corrosion resistance, ensuring reliable performance even in demanding environments with operating temperatures ranging from -25 °C to 55 °C.

The breaker features manual ON/OFF capability via a push-button or rotary disconnect, allowing safe motor control. The rated operational current ranges up to 10 amps with 6.3 amps also supported, suitable for low to medium-voltage motors operating at 690V AC.

Compact dimensions (45 mm length, 93 mm width, and 94 mm depth) facilitate installation in tight control panels and switchgear assemblies. The device includes 3 poles, supporting three-phase motor protection with current transformer sensing type.

Mechanical robustness is ensured through a rated lifespan of 100,000 operations and capability to withstand up to 25g of mechanical shock, making it ideal for industrial environments subject to vibration and impact.

This Motor Protection Circuit Breaker complies with international standards IEC/EN 60947-4-1, RoHS regulation, and VDE 0660 Part 102, ensuring safety and environmental compliance. IP20 and IP00 ratings provide protection against intrusion of fingers and objects larger than 12 mm, although it is not waterproof and should be installed in dry locations.

Its versatility is further enhanced by the ability to accommodate a cable range from 18 to 10 AWG, allowing flexible motor wiring options. Manufactured in Germany, this unit represents high-quality engineering suitable for various industrial motor protection needs.

Equipped with manual ON/OFF rotary or push button disconnect for safe motor control. Adjustable bi-metallic overload relay with class 10 rating for precision motor protection. Fixed magnetic short circuit trip ensures fast response to electrical faults.

Thermoplastic housing with IP20/IP00 ratings offering robust protection in industrial environments. Compact size for easy integration in control panels and switchgear. Rated robotic mechanical shock resistance up to 25g for harsh conditions.

Compliant with IEC/EN 60947-4-1, RoHS, VDE standards for electrical safety and quality. Three poles provide full protection in three-phase motor systems. Manufactured in Germany ensuring premium quality. Explore more motor protection solutions and Eaton products in the industrial automation category at EnvMart.
