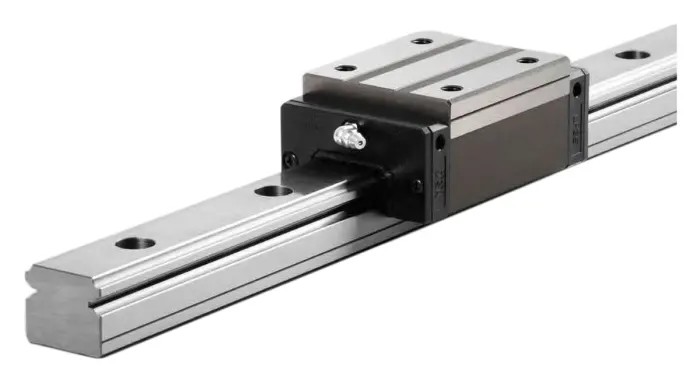

NSK Guide Block N Series Compact Linear Guide Block 11300N Dynamic Load NAH15EMCE01PCZ

Free Delivery in India | Lowest Global Shipping Charges

NSK Guide Block N Series Compact Linear Guide Block 11300N Dynamic Load NAH15EMCE01PCZ



Category Linear Guide Blocks Brand NSK Condition New

Specifications

Country of Origin	India
Brand	NSK
Model	NAH15EMCE01PCZ
Series	N
Standards/Approvals	ISO14728-2, ISO14728-1
Static Load Rating	20700N
Dynamic Load Rating	11300N
Carriage Length	55mm
Carriage Width	47mm

Key Features

Compact linear guide block designed for high load capacity applications.
N Series offers 11300N dynamic load rating ensuring superior performance.
Carriage length of 55mm for precise motion control.
Carriage width measures 47mm for compatibility with standard rails.
Complies with ISO14728-1 and ISO14728-2 standards for quality assurance.
Redesigned groove doubles life expectancy by reducing surface pressure.
Improved ball recirculation path reduces noise up to 3dB, ideal for high-speed uses.
Compatible with NSK K1 lubrication system for maintenance-free operation.

Product Description

NSK NAH15EMCE01PCZ guide block from the N series is a compact linear guide block engineered for industrial applications requiring high load capacity and precise linear motion. Featuring a dynamic load rating of 11300N and a static load rating of 20700N, this component is designed to withstand heavy-duty loads while ensuring smooth operation.

The guide block has a carriage length of 55mm and width of 47mm, meeting the ISO14728-1 and ISO14728-2 standards. NSK’s redesigned groove enhances the contact area between the ball and rail slide and the ball slide itself, effectively doubling the life expectancy by reducing surface pressure. The ball recirculation path has been optimized to reduce noise by up to 3dB, making it well-suited for high-speed applications.

This guide block is fully compatible with previous LH and LS series components due to identical installation dimensions, simplifying upgrades and replacements. Typical applications include machine tools, robotics, semiconductor manufacturing, automotive production lines, CT scanners, measuring instruments, automation systems, and train platform doors.

NSK’s K1 lubrication system, employed in this guide block, uses a unique blend of 70% mineral oil and 30% polyolefin resin to provide long-term, maintenance-free service, thereby increasing productivity in industrial settings.

Compact design with high dynamic load rating. Compliant with ISO14728 industrial standards. Enhanced groove design improves lifespan and load distribution. Noise reduction suitable for sensitive environments. Compatible with NSK K1 lubrication system for reliable performance.

This NSK guide block is an essential component for ensuring precise and durable linear motion in various industrial, manufacturing, and automation applications. It provides enhanced durability, reduced maintenance, and improved operational efficiency for demanding environments.
