Eaton M22 Series Green Momentary Push Button Head 22 mm Cutout IP67 216596 M22-D-G

Eaton 216596 M22-D-G is a green momentary push button head from the M22 Series, designed for use in electrical and industrial automation systems. Featuring a 22 mm cutout and an IP67 rating, it offers excellent protection against dust and water ingress, making it suitable for harsh environments.

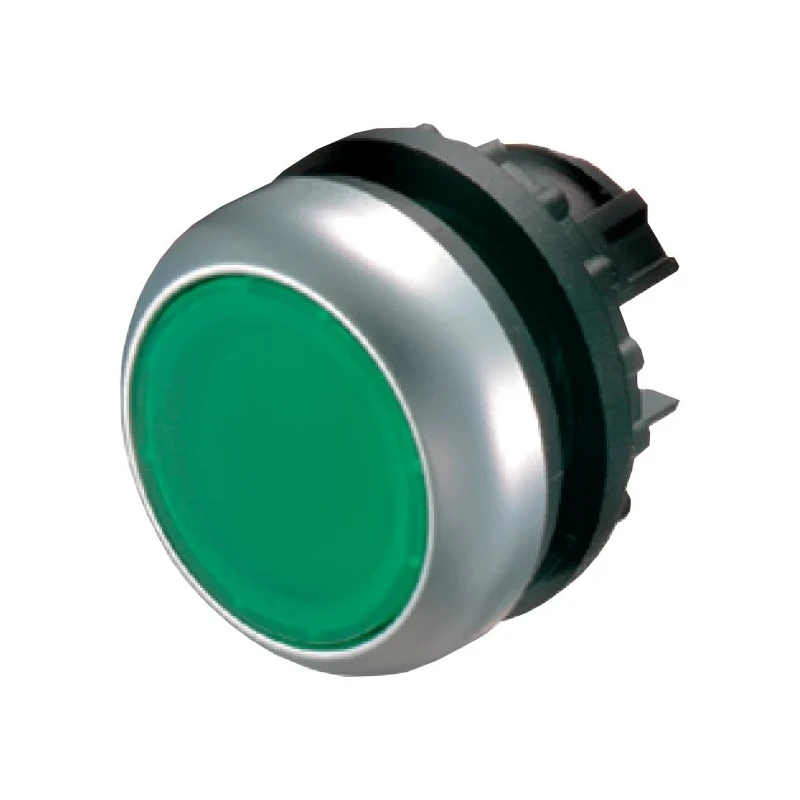

The push button head incorporates a robust titanium front ring that provides strong resistance to corrosion and wear, extending the operational life of the component. The green plastic button is highly visible for easy identification in control panels and machinery.

This product is engineered for momentary actuation, meaning it only activates while pressed. This makes it ideal for safety-critical applications such as industrial machine controls or factory conveyors where temporary input is needed.

It supports a wide temperature range from -25°C up to +70°C, ensuring reliable operation in diverse and challenging industrial environments. The mechanical lifespan surpasses 5 million operations, highlighting its durability and reliability in continuous use.

The push button head features a flat design to help prevent accidental activations, with a precise cutout diameter of 22.5 mm suited for standard panels. It has one command position, suitable for simple on/off control functions.

This component complies with multiple international standards for electrical and mechanical safety and performance, including IEC/EN 60947-5, CE marking, CSA-C22.2 No. 14-05, IEC 60068-2-27, -30, -78 testing for shock and vibration resistance, IEC/EN 60529 for ingress protection, and UL 508.

Manufactured in Germany, the Eaton M22 Series Push Button Head is a reliable solution for industrial, commercial, and electrical automation applications. It is highly suitable for controlling machinery, automation panels, and other equipment requiring responsive and durable push button controls.

The product does not include a body or fixing collar and is unmarked on the button face, providing flexibility for various control configurations. Explore additional push button components and accessories in the electronics and electricals category on EnvMart.

Constructed with a durable titanium front ring resistant to corrosion. Button made of identifiable green plastic for ease of use. Rated IP67 and IP69K for protection against high-pressure water jets. Supports an ambient temperature range from -25°C to +70°C.

Mechanical lifespan exceeds 5 million operations ensuring long-lasting reliability. Flat head design protects against accidental presses. Cutout diameter of 22.5 mm suitable for standard panel installations. Single command position suitable for simple on/off applications.

Conforms to numerous international standards including IEC/EN 60947-5, CE, CSA-C22.2, IEC 60068 series, UL 508. Produced in Germany, ensuring high quality manufacturing standards.
