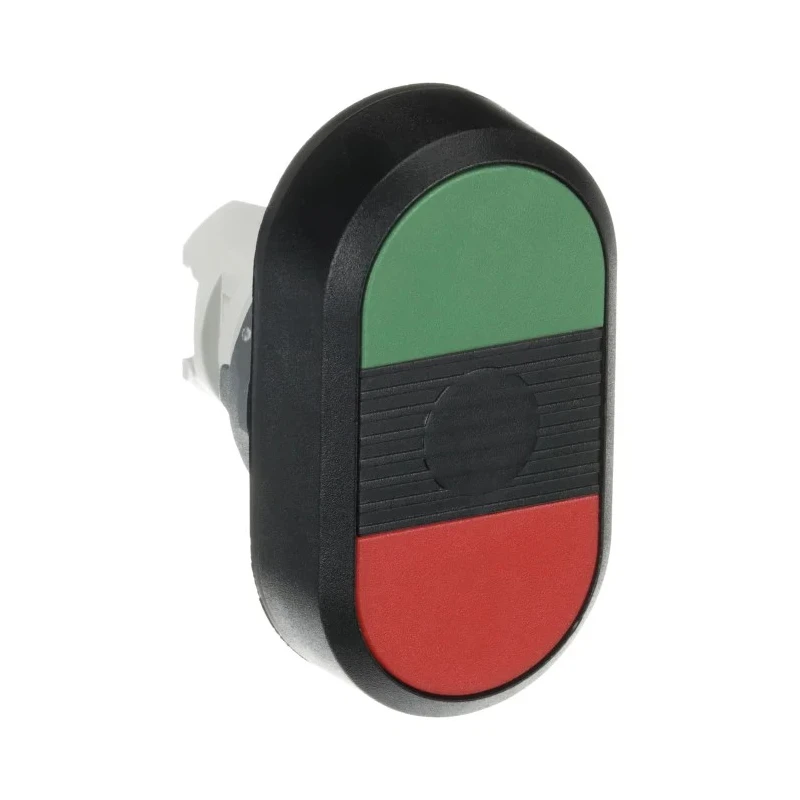

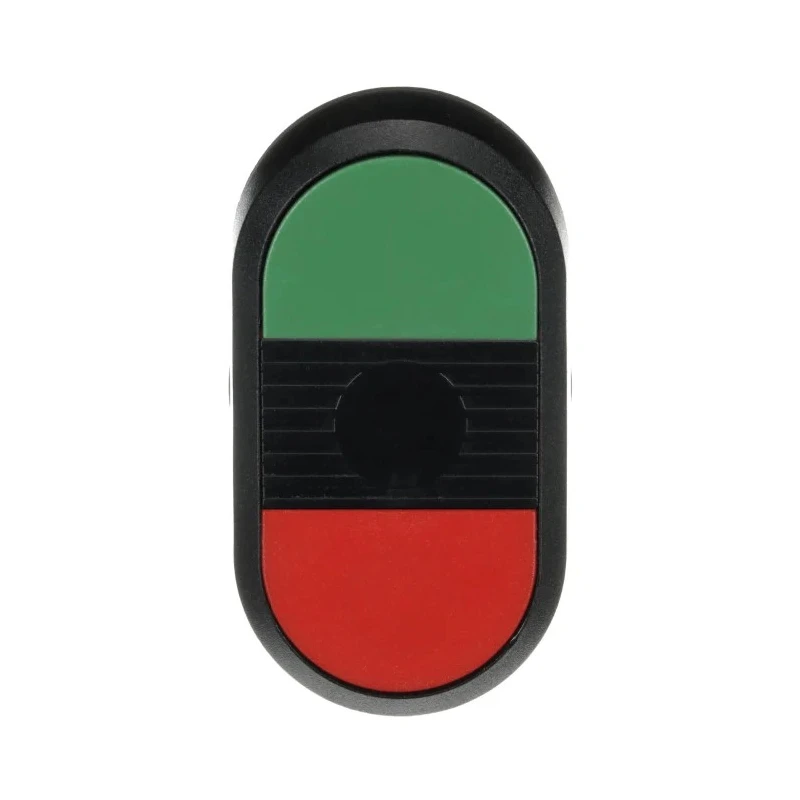

ABB Modular Series Green, Red Momentary Push Button Head, 22 mm Cutout, IP66 1SFA611130R1106 MPD1-11B

ABB model 1SFA611130R1106 MPD1-11B is a durable Modular Series push button head designed for industrial and automation control panels. It is engineered to fit standard 22 millimeter cutout holes and provides momentary actuation through a round push button, available in green and red colors for clear control function identification.

The push button head is made from black plastic, giving it excellent chemical and electrical insulation properties, suitable for various industrial environments. It offers protection to IP66 standards, ensuring resistance against powerful water jets and ingress of dust, making it suitable for use in washdown and harsh environmental areas.

This push button head complies with key international standards such as IEC/EN 60947-5-1, UL 508, and other relevant norms, ensuring reliable integration into industrial electrical systems and control logic designs.

The momentary action provides immediate contact signaling that resets instantly after release, making it ideal for start/stop, reset, or interlock commands. The two color options allow straightforward visual differentiation of control roles without additional labeling, enhancing safety and usability on machinery panels.

Applications include use on automated machinery operator panels, emergency-stop interface indicators, modular switch blocks for control assemblies, and retrofit replacements on existing 22mm actuator panels. Note that the product is supplied as the push button head only, with no body or fixing collar included.

Designed for industrial operator control panels and signalling applications. Features green and red round push button heads for easy visual differentiation. Constructed with black plastic for chemical resistance and electrical insulation.

Provides momentary push action suitable for pulsed input and start/reset controls. IP66 rating protects against strong water jets and dust ingress, ideal for harsh environments. Complies with international standards including IEC/EN 60947-5-1 and UL 508.

Compatible with standard 22 mm panel cutout apertures for easy installation and retrofit. Body/fixing collar is not included, supplied as Push Button Head only. Explore EnvMart for a wide range of industrial electrical controls including modular switch components, push button switches, and automation equipment.
