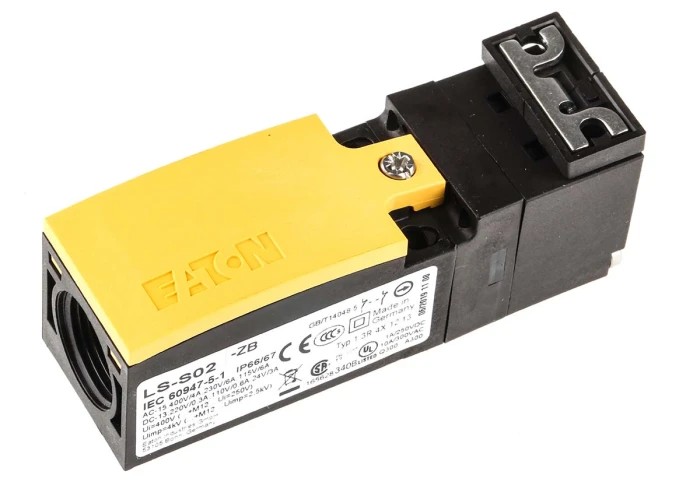

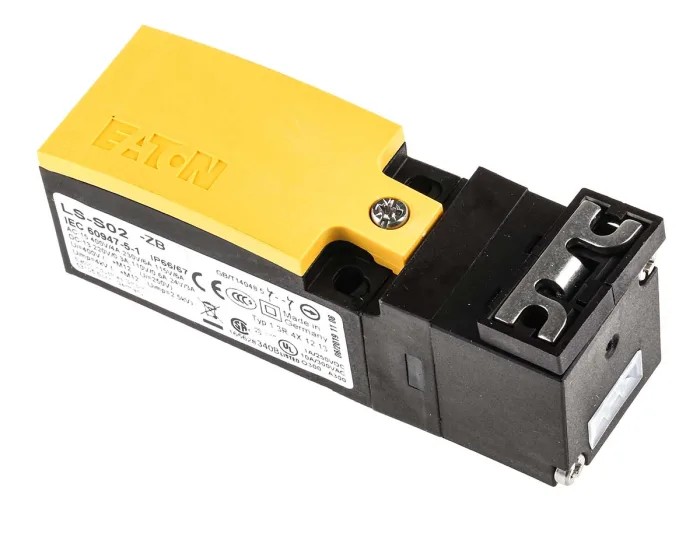

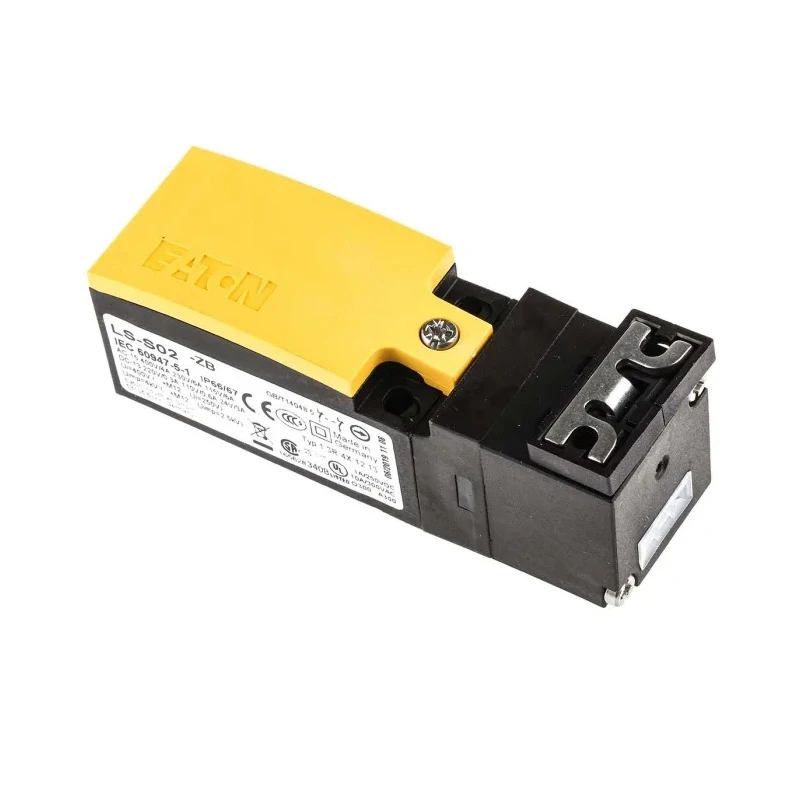

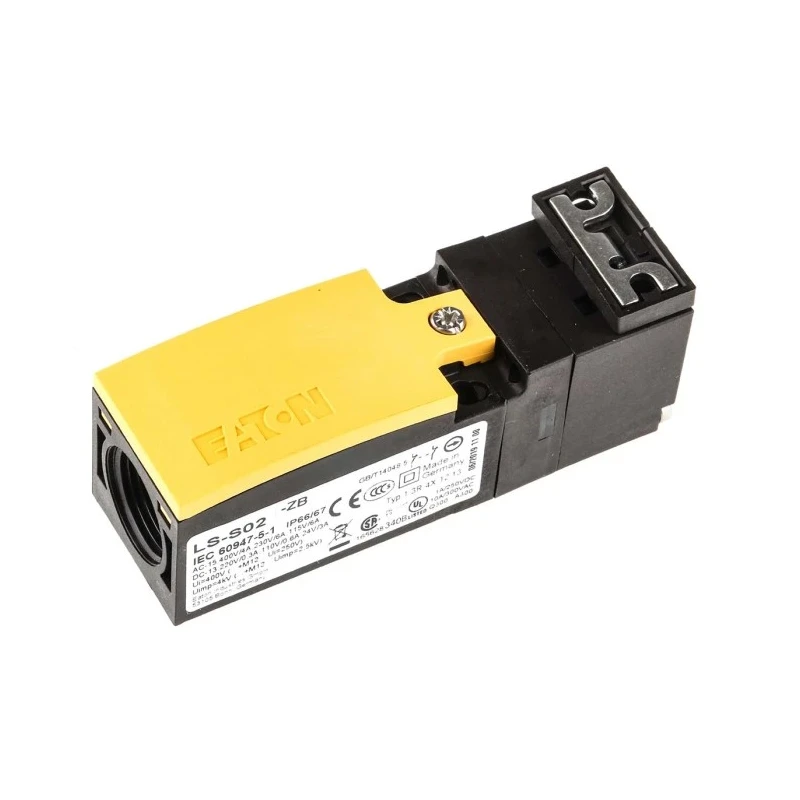

Eaton LS-Titan Series Key Limit Switch 1 NO/1 NC, IP65, Economical Insulated Plastic, Rugged Metal Enclosures
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Length | 60mm |
| Model | IP65 |
| Depth | 37.8mm |
| IP Rating | IP65 |
| Width | 173mm |
| Housing Material | Economical Insulated Plastic, Rugged Metal Enclosures |
| Series | LS-Titan |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Key |
| Contact Type | Positive Opening |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | CCC, CE, CSA, EN, IEC, TUV, UL |
| Operating Force | 8N |
| Mechanical Life | 10000000Operations |
| Switching AC Voltage | 415V |
| Conduit Entry | M20 Screw Terminal in 1/2 in |
Key Features
- This key limit switch features 1 normally open and 1 normally closed contact configuration.
- It has an ingress protection rating of IP65 suitable for harsh environments.
- The housing material combines economical insulated plastic and rugged metal enclosures for reliability.
- The switch supports a maximum switching AC voltage of 415V for versatile use.
- Operating temperatures range from -25°C to 70°C ensuring performance under varied conditions.
- Designed with a long mechanical life of 10 million operations for extended durability.
- The device uses a screw terminal type for secure electrical connections.
- Operating force is 8N, ensuring precise actuation.
Product Description
Eaton 106874 LS-S02-ZB Key Limit Switch 1 NO/1 NC, IP65 features a robust and economical design suited for industrial, automation, and electrical applications requiring reliable position detection.
The LS-Titan series provides modular plug-in operating heads with either insulated plastic or rugged metal enclosures, offering flexibility according to environmental needs. This switch operates with a key actuator type and features positive opening contact to enhance safety and operational reliability.
Rated for a maximum AC switching voltage of 415V and a mechanical life of 10 million operations, the device is suitable for demanding industrial environments. The ingress protection rating of IP65 ensures protection against dust and water jets, making it ideal for harsh or outdoor conditions.
The switch installation accommodates conduit entry via M20 screw terminals, ensuring secure cable entry and connection. Operating temperature ranges from -25°C to 70°C provide the switch with resilience across a wide thermal range.
Compact dimensions (60mm length, 173mm width, 37.8mm depth) and rugged construction facilitate easy integration into control panels and machinery. This reliable key limit switch has been engineered to meet international standards such as CCC, CE, CSA, EN, IEC, TUV, and UL.
Its economical insulated plastic and rugged metal housing options provide durable protection and long service life. This Eaton LS-Titan series limit switch is widely used in industrial automation, manufacturing, electrical systems, and machinery safety applications.
Explore more high-quality Limit Switches and industrial electrical components through EnvMart's comprehensive catalog to support your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
The switch has an ingress protection rating of IP65, making it suitable for harsh environments against dust and water jets.
It supports a maximum switching AC voltage of 415V, providing versatility for various applications.
The dimensions are 60mm in length, 173mm in width, and 37.8mm in depth, allowing for easy integration into control panels and machinery.
The operating temperature range is from -25°C to 70°C, ensuring performance under varied conditions.
It has a mechanical life rated for 10 million operations, providing extended durability for industrial applications.
This unit uses a key actuator type, designed for reliable position detection in various applications.
The device uses screw terminals for secure electrical connections, accommodating M20 conduit entry.
It is engineered to meet international standards such as CCC, CE, CSA, EN, IEC, TUV, and UL.
The operating force for this model is 8N, ensuring precise actuation during operation.
The housing combines economical insulated plastic and rugged metal enclosures for reliability in various environments.
This switch is widely used in industrial automation, manufacturing, electrical systems, and machinery safety applications.
