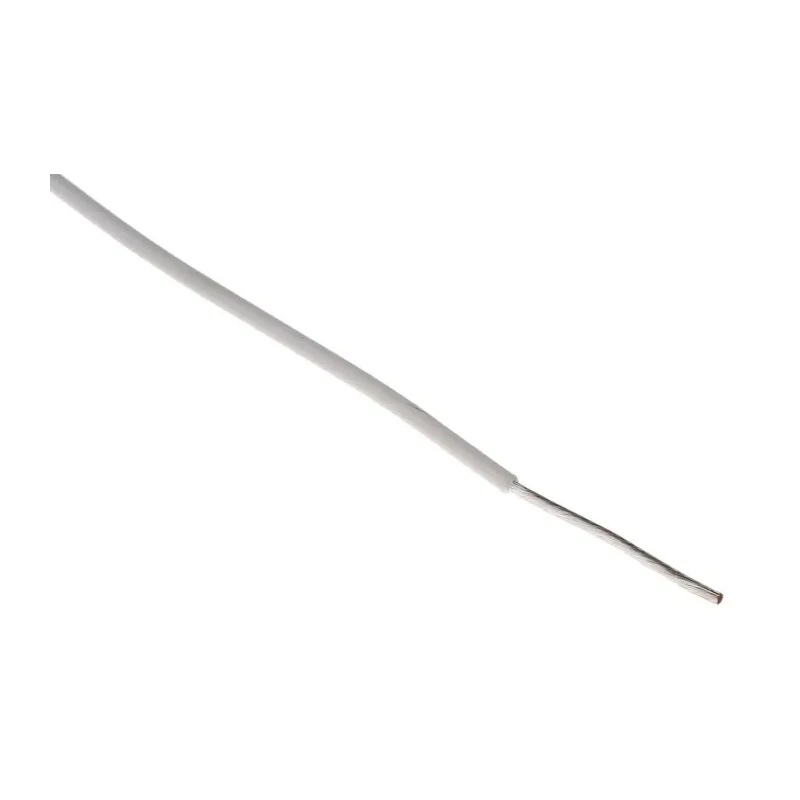

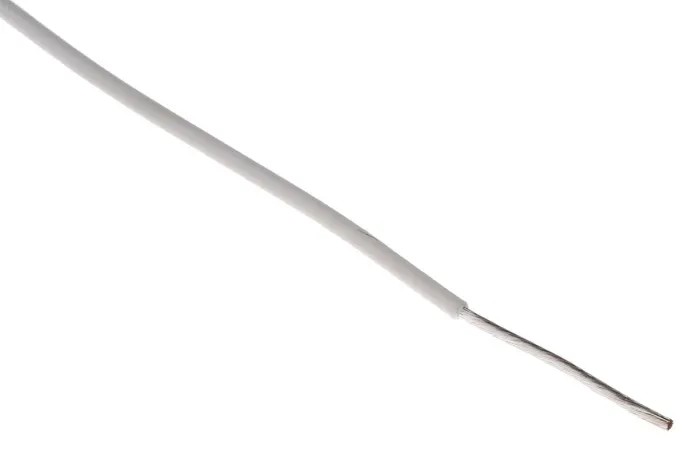

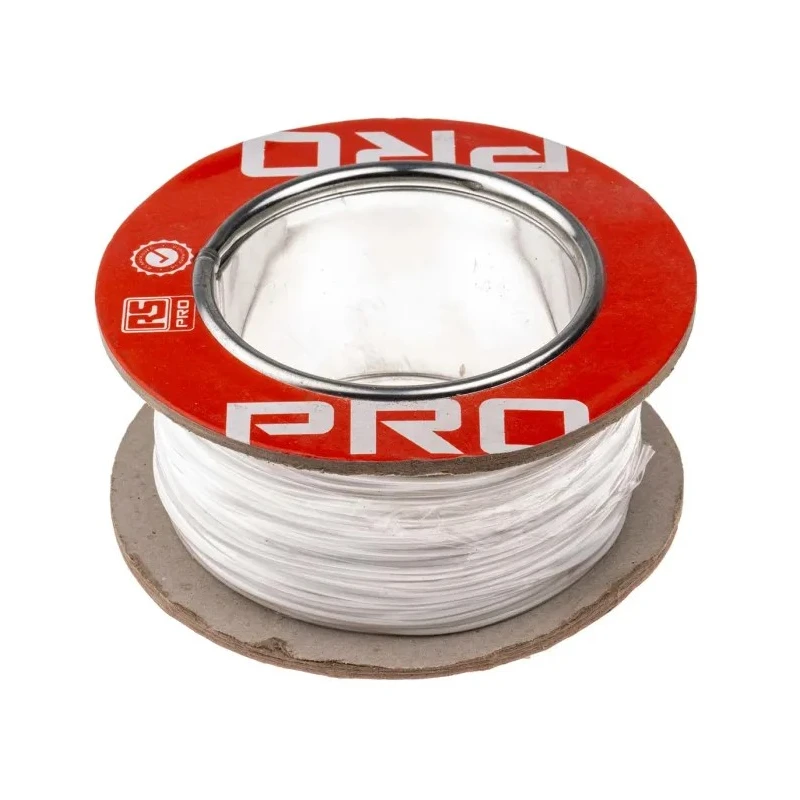

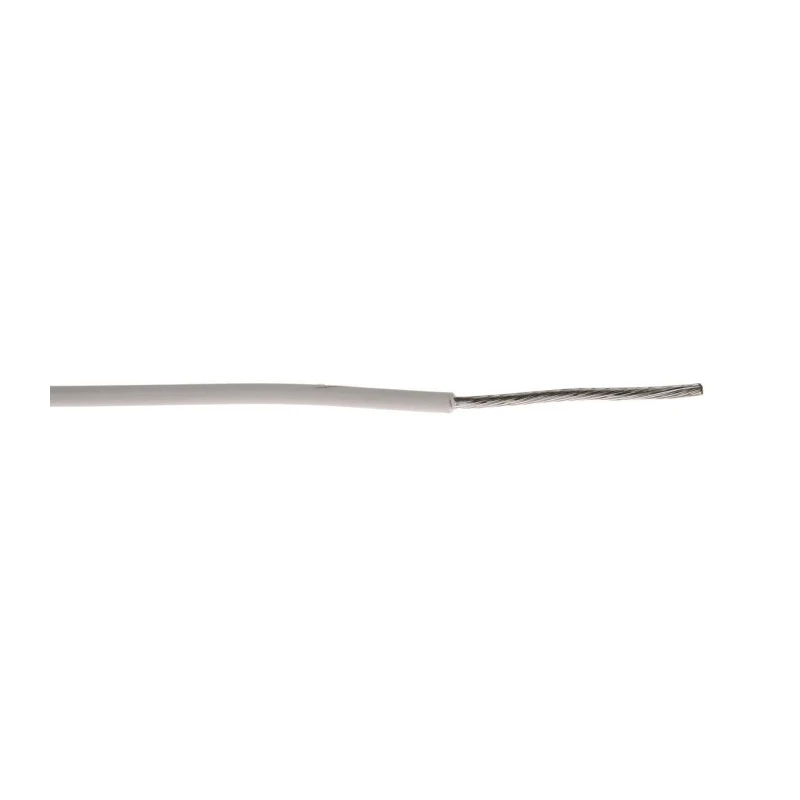

RS PRO White 0.34 mm² Hook Up Wire, 22 AWG, 19 x 0.15 mm Core Strands, 100 m, Polytetrafluoroethylene Jacket 841-7415

Free Delivery in India | Lowest Global Shipping Charges

RS PRO White 0.34 mm² Hook Up Wire, 22 AWG, 19 x 0.15 mm Core Strands, 100 m, Polytetrafluoroethylene Jacket 841-7415

Name: RS PRO White 0.34 mm² Hook Up Wire, 22 AWG, 19 x 0.15 mm Core Strands, 100 m, Polytetrafluoroethylene Jacket 841-7415
Brand: RS PRO
SKU: 380754
Price: 344.17 USD
Availability: InStock



Category Hook Up Wire Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	600V
Brand	RS PRO
CROSS SECTIONAL AREA	0.34mm²
Model	841-7415
Cable Length	100m
Outside diameter	1.35mm
Maximum Operating Temperature	200°C
Conductor Material	Silver Plated Copper
Sub Type	Type B
Cable Type	Equipment Wire
Minimum Operating Temperature	-75°C
Jacket Material	Polytetrafluoroethylene
Standards/Approvals	BS 3G 210:1996
Jacket Colour	White
Fire Behaviour	Flame Retardant, Low Smoke Halogen Free
American Wire Gauge	22AWG
Number of Strands	19
Core Strands	19 x 0.15mm
Size of Strands	0.15mm
Standards/Approvals BS 3G 210	1996
RS PRO White Harsh Environment Wire, 22, 19/0.15 mm, 100m, PTFE InsulationBrand	RS PRO

Key Features

The conductor is silver plated copper for excellent conductivity.
The jacket is made from flame retardant, low smoke halogen free polytetrafluoroethylene.
This wire operates at a voltage rating of 600 V with maximum operating temperature of 200°C and minimum operating temperature of -75°C.
Designed for harsh environments including exposure to oils, acids and sunlight.
The wire is suitable for industrial, laboratory, automotive and aerospace applications.
The outside diameter of the wire is 1.35 mm, making it compact yet robust.
Ideal for use in construction sites, car engines, aeroplanes, and petrol stations.

Product Description

RS PRO 841-7415 is a high-quality Hook Up Wire possessing a white jacket made of polytetrafluoroethylene (PTFE) with a cross-sectional area of 0.34 mm². The core consists of 19 strands each measuring 0.15 mm, conforming to 22 AWG standards and offering excellent flexibility and conductivity due to its silver plated copper conductor material. The cable length is 100 meters with an outside diameter of 1.35 mm.

This wire is designed specifically for harsh environment applications where exposure to oils, acids, and excessive sunlight could degrade lesser cables. Its flame retardant and low smoke halogen free jacket enhances safety in various industrial and laboratory settings. Rated for continuous operation at a maximum of 200°C and minimum of -75°C, it reliably withstands extreme temperatures.

Meeting BS 3G 210:1996 Type B standards, this equipment wire is suitable for use in demanding conditions found in construction sites, automotive engines, aerospace, and petrol stations. The PTFE insulation offers superior dielectric properties, making the wire trusted across electronics, automation, and control systems in industrial and commercial environments.

Silver plated copper conductor for enhanced conductivity. PTFE insulation ensures durability against harsh chemicals and temperature extremes. Compliance with BS 3G 210:1996 Type B for equipment wiring. Flame retardant, low smoke halogen free jacket supports safety standards.

Ideal for industrial automation, automotive, aerospace, and laboratory use. 19 strands of 0.15 mm core diameters provide flexibility and strength. White color jacket provides clear visual identification.

This RS PRO wire complements a broad range of harsh environment wiring applications, delivering reliable performance and compliance with key industry standards. For additional related cables and wires, explore the broader RS PRO and Hook Up Wire categories on EnvMart to find solutions tailored to specific needs.
