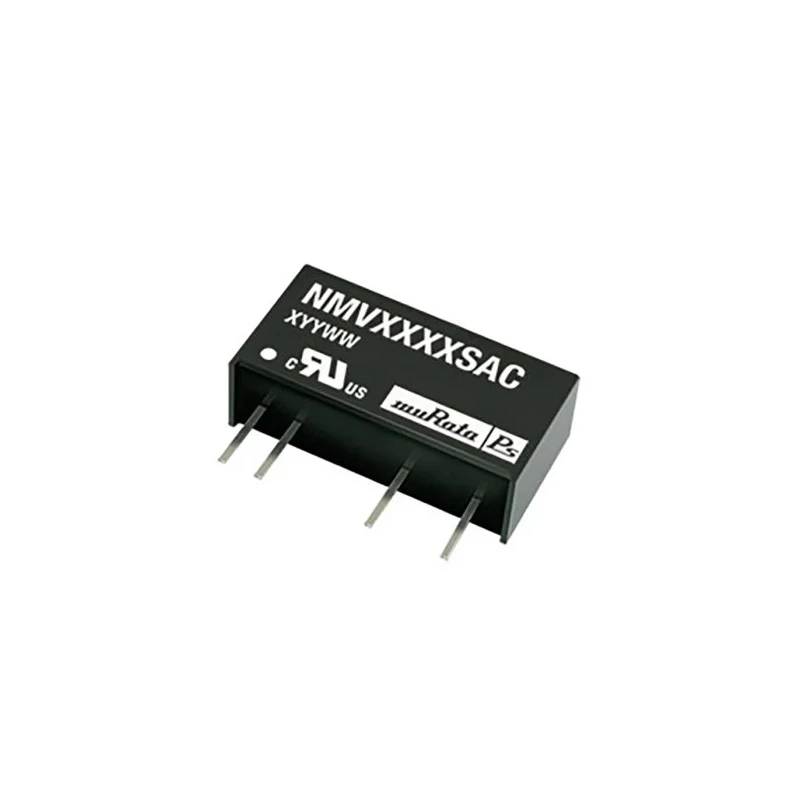

Murata Power Solutions NMV Series 1W SIP Through Hole Unregulated DC/DC Converter, 12V Output, 4.5-5.5V Input NMV0512SAC

Murata Power Solutions NMV0512SAC is a highly reliable, 1 Watt unregulated DC/DC converter from the NMV Series, designed for efficient and isolated power conversion applications in industrial, telecommunications, instrumentation, and other electronic systems.

This module delivers a steady 12 V DC output voltage from input voltage range of 4.5 to 5.5 V DC, making it suitable for applications requiring stable low power supply voltage conversion. It incorporates 3 kV DC isolation between input and output, protecting circuitry from voltage spikes and electrical noise.

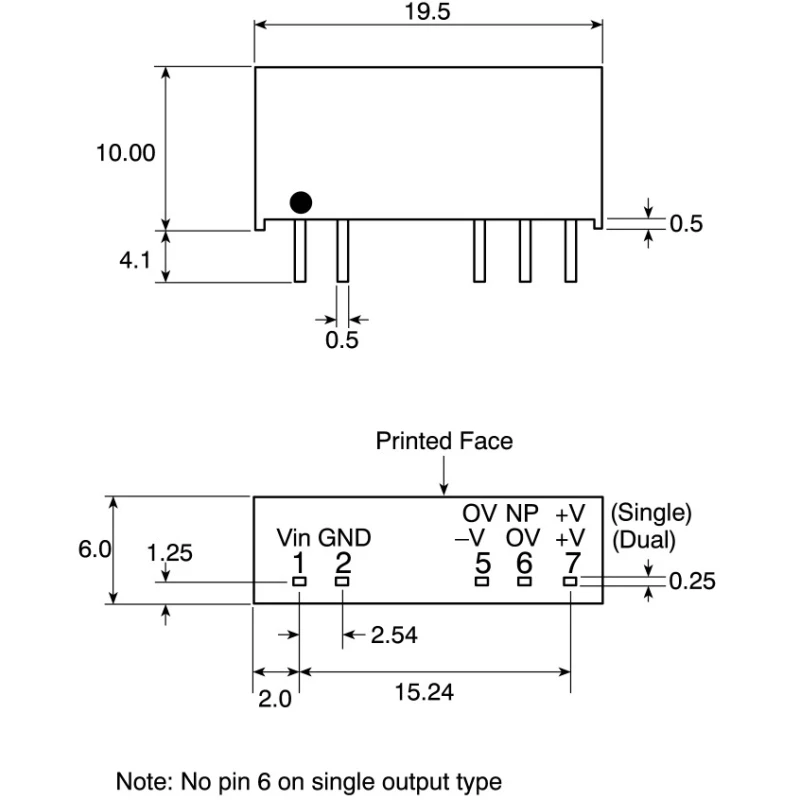

The converter uses a SIP7 plastic through-hole package measuring 19.5 mm in length, 10 mm width, and 10 mm depth, allowing easy integration onto printed circuit boards with through-hole mounting technology.

The NMV0512SAC offers an efficiency of approximately 77%, reducing power loss and heat generation. It withstands operating temperatures from -40°C up to 85°C, making it adaptable to a wide range of environments. The product is constructed with internal surface-mount technology and UL 94V-0 rated materials for flame retardancy, ensuring safety and durability.

This converter features an output ripple and noise of 23 mV peak-to-peak, suitable for sensitive circuits, and has a high mean time between failures (MTBF) of 2,555,000 hours as per MIL-HDBK-217F at 25°C, underscoring its quality and reliability in demanding applications.

This DC/DC converter features a 12V DC output voltage. It operates over an input voltage range of 4.5V to 5.5V DC. The module isolates input and output up to 3kV DC for enhanced safety. Constructed in a compact SIP7 plastic through-hole package with dimensions 19.5mm x 10mm x 10mm.

Supports a maximum operating temperature up to 85°C and a minimum of -40°C. It provides a typical efficiency of 77%, enabling energy-efficient operation. No external components are required due to internal SMD construction.

Designed with UL 94V-0 flame retardant materials to meet safety standards. Minimum MTBF rating of 2,555,000 hours ensures long-term reliability. Ripple and noise level is maintained at 23mV peak to peak to minimize output interference.

This compact and efficient DC/DC Converter is ideal for power supply solutions in industrial equipment, instrumentation, communication devices, and other electronic applications requiring isolated voltage conversion with high reliability and low footprint.
