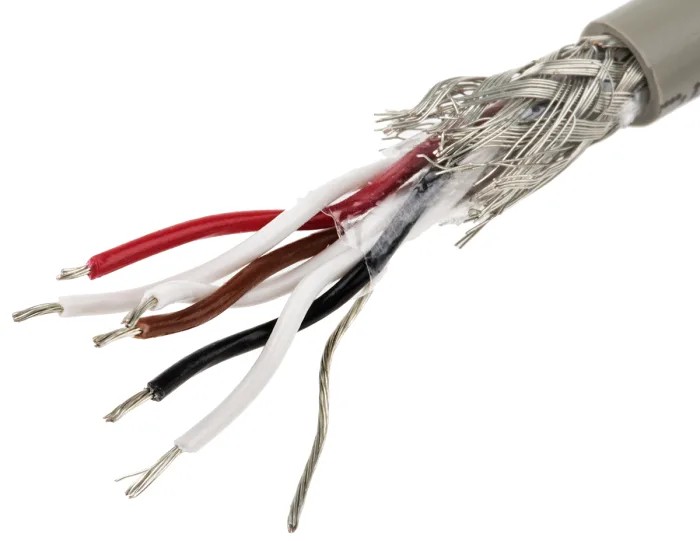

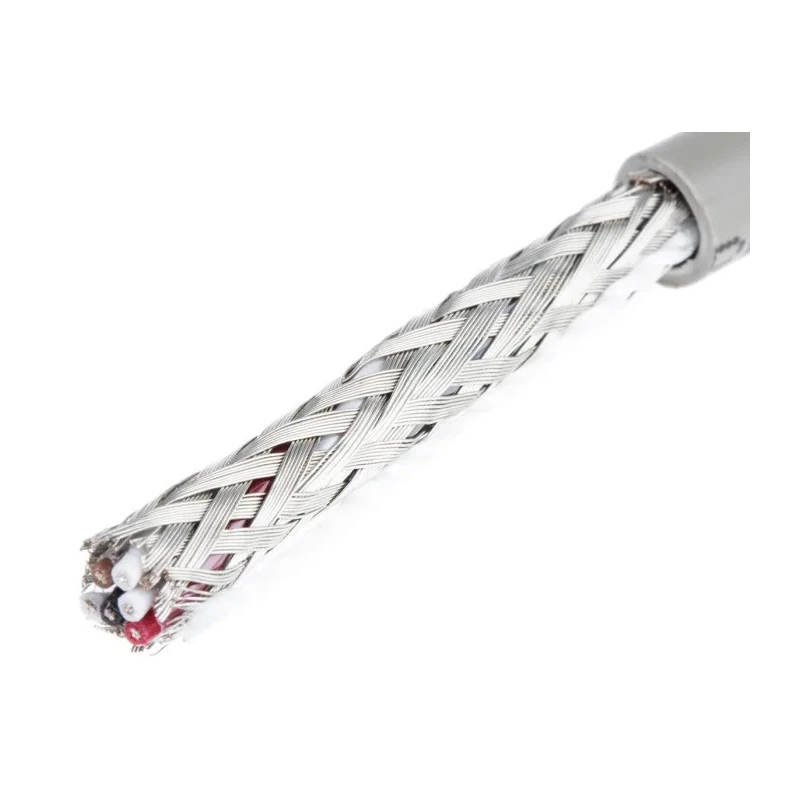

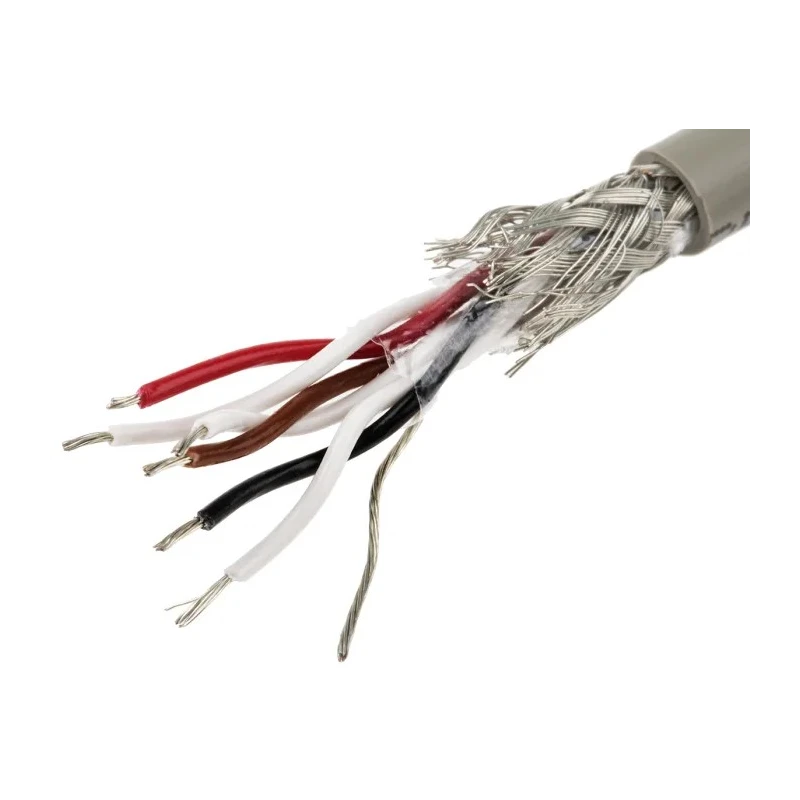

Alpha Wire Pro-Tekt Series Data Cable 3 Pairs 6 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B964033 GE321

Alpha Wire B964033 GE321 Pro-Tekt Series Data Cable offers a rugged multi-pair communication solution designed for demanding industrial control and signal transmission applications. This cable features 3 pairs (6 cores) of tin-plated copper conductors with a 0.35 mm² cross-sectional area, delivering superior flexibility and corrosion resistance.

The cable is protected by an 85% braided shield that effectively minimizes electromagnetic interference, maintaining signal integrity in electrically noisy environments. The grey polyvinyl chloride (PVC) jacket is flame retardant and rated for operation in temperature extremes from -30°C up to 105°C, making it suitable for diverse factory and mechanical equipment installations.

Each conductor pair uses a distinct white-based color code to facilitate straightforward pair identification and terminate connections with minimal wiring errors. Additional mechanical protections include a clear mylar core wrap and a ripcord beneath the jacket for easy sheath removal during installation without risking damage to the internal conductors.

This cable is rated for 300 volts, ideal for factory automation, control panel wiring, instrumentation in process control, and retrofit applications where shielded communication cables are required. It complies with CE, CSA, and UL certifications, ensuring adherence to recognized safety and quality standards.

The product is commonly supplied in 50 m continuous lengths on spools to reduce jointing and optimize large-scale installation requirements. Industrial users rely on this cable for robust and consistent electrical signaling in harsh environments typical of manufacturing, automation, and electrical distribution systems.

Tin-plated seven-strand copper conductors maximize corrosion resistance and cable flex. 0.35 mm² cross-sectional conductor area supports adequate current carrying capacity. 85% braided shield reduces interference and noise for improved signal quality.

Flame-retardant PVC jacket rated for -30°C to 105°C operation. 300V voltage rating suitable for industrial control wiring. Color-coded pairs for easy installation and error reduction. Core wrap and ripcord enhance mechanical protection and ease of installation.

Meets CE, CSA, and UL safety and performance standards. Explore more in our Data Cable category at EnvMart for reliable industrial electrical wiring solutions.
