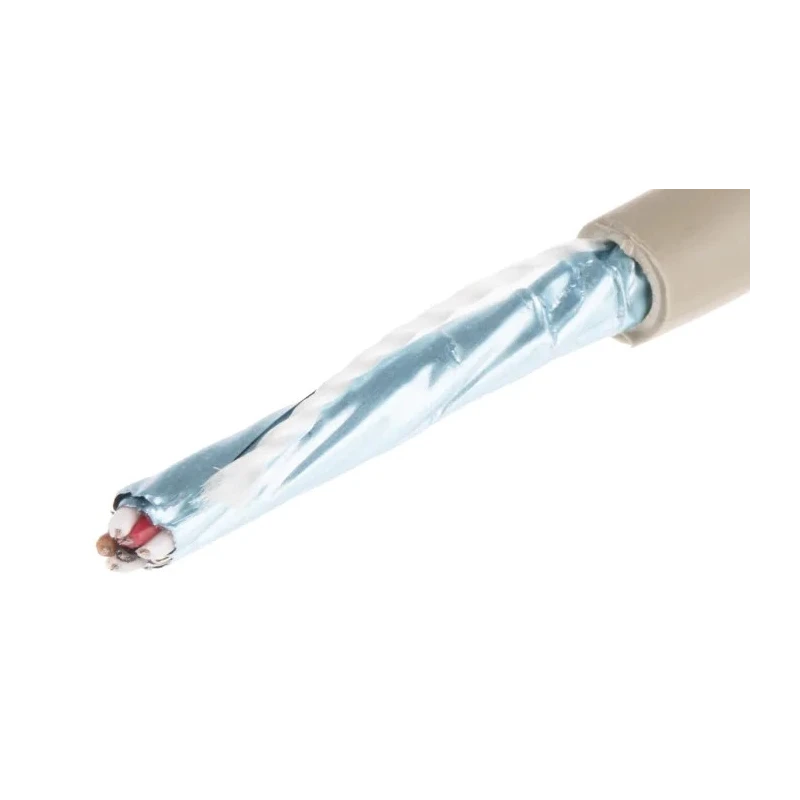

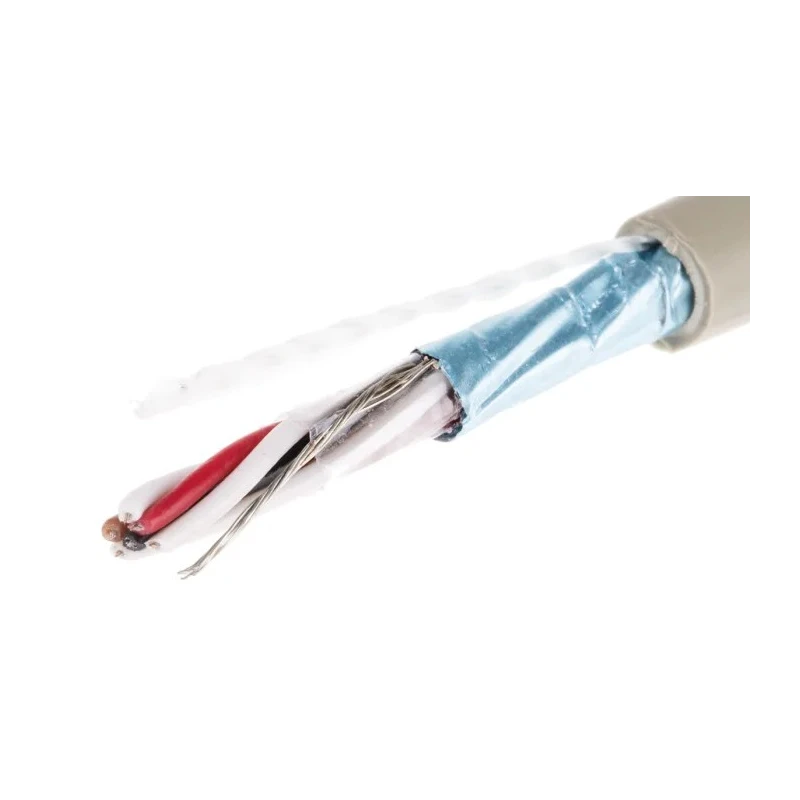

Alpha Wire Pro-Tekt Series Data Cable 3 Pairs 6 Cores 0.23 mm² 50 m Grey Polyvinyl Chloride B963032 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23 mm² |
| Model | B963032 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 5.77mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4825Brand: Alpha WireManufacturers Part No.: B963032 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 3 |
| Pairs | 3, White + Black, White + Brown, White + RedNominal Diameter: 0.227 inch (5.77 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/32Insulation Thickness: 0.010 (0.25 mm)24 AWG (0.23 mm²)Jacket Colour: Grey |
Key Features
- Constructed with tin copper stranded conductors for enhanced flexibility.
- Outer jacket made of flame retardant Polyvinyl Chloride providing UV and oil resistance.
- Operating temperature range from -30°C to +105°C for robust performance.
- Flame retardant design meets CE, CSA, and UL certifications.
- Nominal diameter of 5.77 mm with a jacket thickness of 0.81 mm.
- Stranding of 7 strands of 32AWG conductors ensuring optimal conductivity.
- Shielding options include foil shield providing good electromagnetic interference resistance.
Product Description
Alpha Wire B963032 GE321 Pro-Tekt Series Data Cable features 3 pairs and 6 cores with a cross-sectional area of 0.23 mm² and a length of 50 meters. Sheathed in premium grey Polyvinyl Chloride, this cable is designed for demanding industrial, automation, and electrical power applications.
The cable incorporates flexible tin copper stranded conductors (7 strands of 32AWG) that provide excellent flexibility for installation in confined or challenging spaces. The 300 V rated cable is reinforced with a flame retardant jacket, ensuring safety and compliance with CE, CSA, and UL certifications. Its operating temperature range spans from -30°C to +105°C, making it suitable for various environmental conditions.
The cable's nominal outside diameter is approximately 5.77 mm with a jacket thickness of 0.81 mm, providing durability and protection against wear. Colour-coded pairs include White+Black, White+Brown, and White+Red to simplify wiring and identification during system integration.
Shielding involves foil shielding which offers adequate electromagnetic interference resistance, ensuring signal integrity. The Pro-Tekt series cables are ideal for industrial automation systems, medical devices, aerospace, petrochemical, and commercial electronics where combining data and power cores in a single cable is advantageous.
Stranded conductors allow improved flexibility during installation. Suitable voltage rating of 300 V for industrial uses. Flame retardant and UV resistant Polyvinyl Chloride jacket for long-lasting protection. Wide operating temperature range from -30°C to +105°C ensuring reliable operation.
Colour-coded pairs facilitate efficient cable management and identification. Foil shielding provides noise resistance in controlled environments. Complies with CE, CSA, and UL standards for safety and performance. Available as multipair or multiconductor configurations tailored to customer needs.
Designed to withstand industrial and commercial automation environments. Explore more in EnvMart's Data Cable category for premium quality wiring solutions suited for modern industrial and electrical automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal diameter of this data cable is approximately 5.77 mm.
It operates within a temperature range from -30°C to +105°C.
This cable features 6 cores.
The cable is rated for 300V.
The conductors are made of tin copper wire, and the outer jacket is made of flame retardant Polyvinyl Chloride.
The color-coded pairs include White+Black, White+Brown, and White+Red.
It features foil shielding which offers good resistance to electromagnetic interference.
This model complies with CE, CSA, and UL standards.
The cable has a length of 50 meters.
Each core consists of 7 strands of 32AWG conductors.
The jacket thickness of this cable is 0.81 mm.
It is designed for demanding industrial, automation, and electrical power applications.
