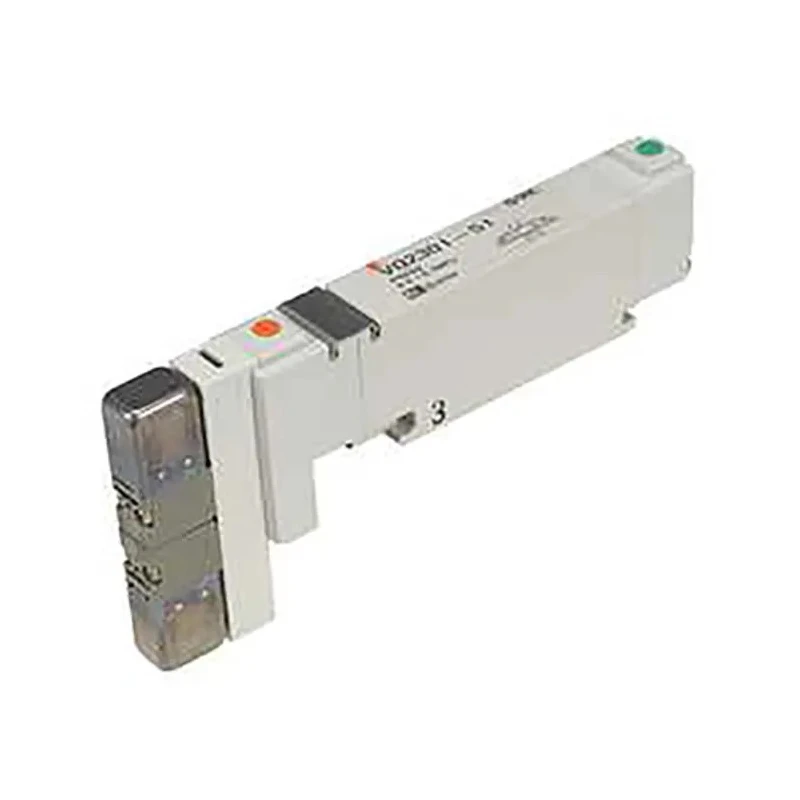

SMC Pneumatic Solenoid Valve 5 Ports Threaded One-Touch Fitting 24V DC 1W Double Solenoid 5/4 NC VQ100 Series

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5 Ports Threaded One-Touch Fitting 24V DC 1W Double Solenoid 5/4 NC VQ100 Series



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 Mpa
Height	93.5mm
Length	123mm
Model	VQ100
Width	63.5mm
Mount Type	Base
Series	VQ100
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	Threaded, One-Touch Fitting
Number of Positions	4
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Operating pressure range	0.1 - 0.7MPa, (high pressure type 0.8MPa)
Actuation Type	Solenoid
Fluid	air/inert gas
Maximum Flow Rate	814L/min
Standards/Approvals	RoHS, CE
Connection Thread Standard	5 mm
Minimum Pilot Pressure	0.15MPa
Valve Function	5/4 NC
Solenoid Type	Double
Port Gender	Female
Solenoid Power Consumption	1W

Key Features

The valve features 5 ports with female port gender and threaded one-touch fitting connection.
Body material is die cast zinc for durability and long service life.
Operates on 24V DC voltage with a solenoid power consumption of 1W.
Suitable for air and inert gas fluids with a maximum operating pressure of 0.7 MPa.
Temperature range from -10°C to 50°C supports diverse industrial environments.
Compact dimensions of 123 mm length, 93.5 mm height, and 63.5 mm width allow easy integration.
Valve function is 5/4 NC with 4 operating positions ensuring precise flow control.
Complies with RoHS and CE standards, manufactured in Japan ensuring quality and safety.

Product Description

SMC VQ1A01N-51-Q Pneumatic Solenoid Valve is a high-performance industrial valve from the VQ100 series, engineered for precise and reliable pneumatic control systems. This valve is established for use with air and inert gases within an operating pressure range of 0.1 to 0.7 MPa, with a maximum pilot pressure of 0.7 MPa and minimum pilot pressure of 0.15 MPa, making it suitable for demanding industrial applications.

Constructed from die cast zinc, the valve features five female ports with threaded one-touch fittings, enabling quick installation and disassembly. The solenoid type is double with a power consumption of 1W powered by a 24V DC coil, allowing energy-efficient operation. Compact in size with 123 mm length, 93.5 mm height, and 63.5 mm width, it fits seamlessly into pneumatic manifold assemblies, supported by an innovative base mount type. Operating temperature capability ranges from -10°C to 50°C, ensuring reliability in various working conditions.

The valve is designed for a 5/4 NC function with four positions, accommodating complex flow control schemes. It delivers a maximum flow rate of 814 L/min, ensuring efficient fluid dynamics. Compliance with RoHS and CE standards underscores its environmental friendliness and safety compliance. Manufactured in Japan, the valve upholds high-quality standards expected by industrial users.

VQ100 series valves are ideal for applications needing rapid cycling, stable response, and extended life spans. The built-in one-touch fittings reduce piping time and labor costs. Moreover, the valve supports frequent operation with a response time of 29 ms or less for metal seals and 34 ms or less for rubber seals, depending on coil power.

The valve includes a durable rubber seal material for tight sealing performance and reliability. Its design supports easy maintenance without dismantling the entire manifold, improving uptime. Ideal for industrial automation, laboratory automation, manufacturing equipment, HVAC controls, and water treatment systems.

The compact design and lightweight make it suitable for portable and fixed pneumatic setups. Incorporates features to ensure long service life and reduced maintenance intervals. Explore related Pneumatic Solenoid Valves and SMC products in EnvMart for comprehensive fluid control solutions.
