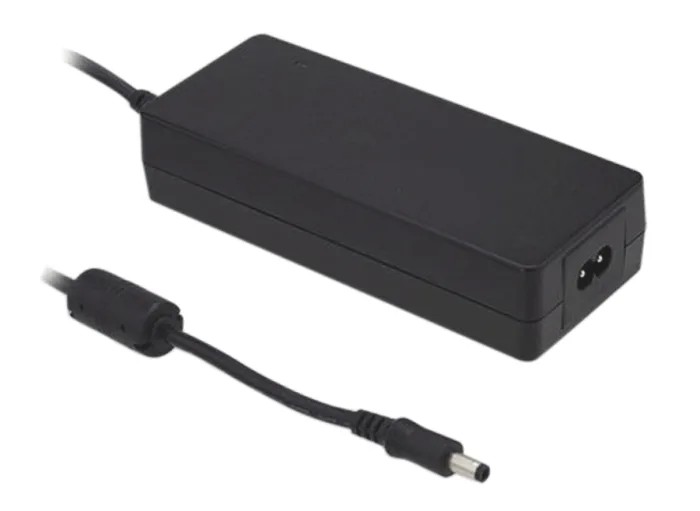

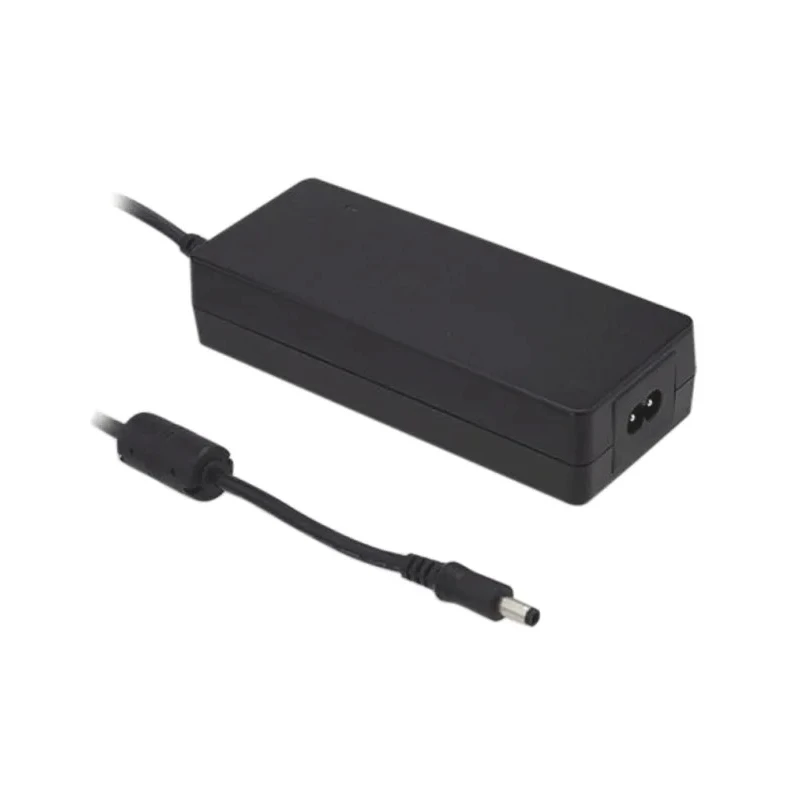

MEAN WELL 90W Single Output AC/DC Adapter 264V AC Input 3.75A Output 24V DC GSM90B24-P1M

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 90W Single Output AC/DC Adapter 264V AC Input 3.75A Output 24V DC GSM90B24-P1M

Name: MEAN WELL 90W Single Output AC/DC Adapter 264V AC Input 3.75A Output 24V DC GSM90B24-P1M
Brand: MEAN WELL
SKU: 380030
Price: 20.22 USD
Availability: InStock



Category AC/DC Adapters Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Model	GSM90B24-P1M
Cable Length	1200mm
Overall Length	145mm
Series	GSM90
Overall Width	60mm
Maximum Operating Temperature	60°C
Maximum Input Voltage	264V ac
Protections	Overload / Over voltage / Over temperature
Maximum Output Current	3.75A
Standards/Approvals	UL 60950-1, CE, IEC 60950-1
Minimum Input Voltage	100V ac
Overall Depth	32mm
Minimum Output Voltage	24V dc
Input Connector Type	IEC 320-C8

Key Features

High efficiency with 91% energy conversion rate.
Low leakage current less than 100 microamperes, suitable for medical applications.
Compliant with international medical safety standards including ANSI/AAMI ES60601-1.
Built-in active PFC for stable power supply operation.
Wide operating temperature range from -30 to +60°C ensures reliability.
Class II plastic enclosed case design without earth pin.
Includes LED indicator for power status.
Overload, overvoltage, and overtemperature protections ensure safety.

Product Description

MEAN WELL GSM90B24-P1M is a 90W single output AC/DC adapter designed for professional and medical equipment requiring reliable power supply. It accepts a wide input voltage range from 100V to 264V AC and outputs a steady 24V DC at a maximum current of 3.75A.

This adapter features a high efficiency of 91%, reducing energy losses and enabling compliance with stringent energy-saving regulations such as ErP step 2 and EISA 2007. Its low leakage current below 100 microamperes makes it especially suitable for sensitive medical applications that require patient-contact safety.

The GSM90B24-P1M adheres to international safety standards including ANSI/AAMI ES60601-1 and TUV EN60601-1 certification, ensuring its suitability for hospital and healthcare environments where electrical safety is critical.

Its compact design includes a fully enclosed plastic case (Class II) without an earth pin, incorporating protections against overload, overvoltage, and overtemperature. The adapter includes a convenient LED indicator to display power status and features a 2-pin IEC 320-C8 input connector with a 1200mm power cable for ease of installation.

Operating reliably in temperatures ranging from -30°C to +60°C, this adapter is designed for durability and stable performance across various demanding industrial, laboratory, healthcare, and commercial settings.

High efficiency and low power consumption minimize energy waste. Low leakage current protects sensitive medical devices and patients. Meets multiple global safety certifications including UL, CUL, TUV, CB, FCC, and CE. Compact and fully enclosed with Class II insulation for safety.

Multiple protections enhance reliability and device longevity. Wide operating temperature range for diverse environments. Designed for medical equipment, laboratory instruments, and industrial applications.

MEAN WELL offers a trusted range of power supplies tailored for demanding electrical and medical requirements. Explore the full range of AC/DC Adapters and power supplies available at EnvMart to find the perfect fit for your application.
