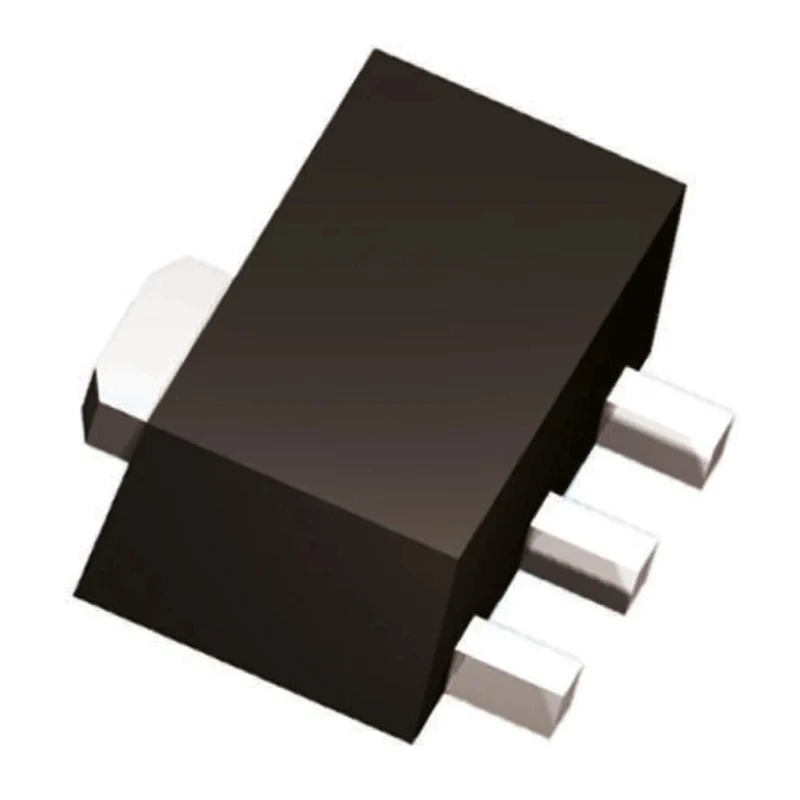

Microchip LED Driver IC, 5V dc Input Voltage, 22 mA Output Current, 90V Maximum Output Voltage, 4-Pin SOT-89 CL2N8-G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.6mm |
| Length | 4.6mm |
| Model | CL2N8-G |
| Width | 2.6mm |
| Mount Type | Through Hole |
| Output Current | 22mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-89 |
| Minimum Operating Temperature | -40°C |
| Input Voltage | 5, 90V dc |
| Maximum Output Voltage | 90V |
| Number of Pins | 4 |
| Minimum Output Voltage | 5V |
| Dimming Operation | FET |
Key Features
- Operates with input voltage from 5 V to 90 V dc.
- Provides a steady output current of 22 mA for LED driving applications.
- Features FET dimming operation for flexible LED brightness control.
- Compact SOT-89 package with 4 pins for easy PCB integration.
- Operating temperature range from -40°C to 125°C suitable for varied environments.
- Maximum output voltage capability of 90 V ensures wide LED compatibility.
- Minimum output voltage supported is 5 V for stable LED operation.
- Robust construction suitable for industrial and commercial LED lighting systems.
Product Description
Microchip CL2N8-G is a linear constant current LED driver IC designed for precise and reliable LED lighting control, operating at an input voltage range of 5 V to 90 V dc and delivering a fixed output current of 22 mA. Housed in a compact 4-pin SOT-89 package, this device is optimized for through-hole mounting and is suitable for various LED driver applications in industrial, commercial, automotive (non-standard), and laboratory environments.
The IC supports FET dimming operation, allowing advanced brightness modulation of LEDs while ensuring consistent current delivery. Its wide operating temperature range from -40°C to 125°C allows deployment in harsh or demanding temperatures, maintaining excellent performance and longevity.
With a maximum output voltage of 90 V, the CL2N8-G can support arrays or strings of LEDs with higher voltage requirements, while its minimum output voltage of 5 V ensures stable operation across different LED types. The compact package and pin configuration allow easy integration into printed circuit boards for LED lighting fixtures or display modules.
This LED driver IC is part of Microchip's offering for power and connectivity solutions, emphasizing high quality and precise electrical characteristics. It is ideal for applications such as LED backlighting, indicator lamps, automotive lighting systems (non-automotive certified), and general LED illumination purposes.
Operates with input voltage from 5 V to 90 V dc. Provides a constant output current of 22 mA. FET dimming operation capability for adaptive LED brightness control. Compact 4-pin SOT-89 through-hole package design. Wide operating temperature range from -40°C up to 125°C for industrial reliability.
Maximum output voltage rating of 90 V to support varied LED configurations. Minimal output voltage at 5 V guarantees consistent LED performance. Ideal for industrial, commercial, and laboratory LED driver applications. Dimensions: length 4.6 mm, width 2.6 mm, height 1.6 mm.
Explore the Microchip LED Driver IC range on EnvMart for advanced electronic components ideal for LED lighting systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip CL2N8-G operates with an input voltage range from 5 V to 90 V dc.
This LED driver IC provides a constant output current of 22 mA.
The maximum output voltage capability of this model is 90 V, allowing it to support various LED configurations.
The minimum output voltage supported is 5 V, ensuring stable operation for different LED types.
It supports FET dimming operation, which allows for flexible LED brightness control.
This model has a wide operating temperature range from -40°C to 125°C, suitable for various environments.
The dimensions of this LED driver IC are 4.6 mm in length, 2.6 mm in width, and 1.6 mm in height.
The Microchip CL2N8-G features a compact design with 4 pins.
It is housed in a compact SOT-89 package, optimized for through-hole mounting.
This model is suitable for applications such as LED backlighting, indicator lamps, and general LED illumination.
The country of origin for this LED driver IC is India.
This model is designed for through-hole mounting, facilitating easy integration into printed circuit boards.
