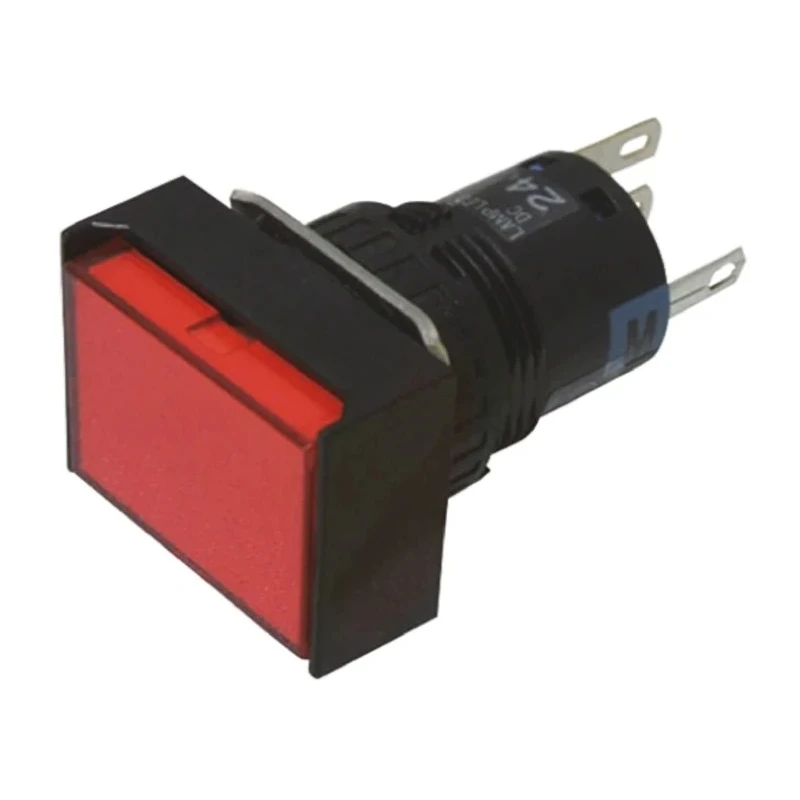

Idec AL Series Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, DPDT, Red LED, IP65, 250 V AC AL6H-M24P-R

Name: Idec AL Series Illuminated Momentary Push Button Switch, Panel Mount, 16 mm Cutout, DPDT, Red LED, IP65, 250 V AC AL6H-M24P-R
Brand: Idec
SKU: 379446
Price: 2424.85 INR
Availability: InStock



Category Push Button Switches Brand Idec Condition New

Specifications

Country of Origin	China
Brand	Idec
Model	AL6H-M24P-R
IP Rating	IP65
Mount Type	Panel
Series	AL
Maximum Operating Temperature	120°C
Contact Configuration	DPDT
Switch Configuration	On-Off
Panel Cutout Size	16 mm
Terminal type	Quick Connect, Solder Tag
Standards/Approvals	CSA, UL
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	White
Actuator Style	Button
Switch Contact Current	1A
Contact AC Voltage	250V ac

Key Features

The actuator color is white, providing clear visual contrast.
The switch operation is momentary, supporting temporary activation only.
Illumination is provided by a red LED for status indication.
The switch is IP65 rated, ensuring protection against dust and water ingress.
Contact configuration is double-pole double-throw (DPDT) for versatile switching.
Terminal types support quick connect and solder tag methods for ease of installation.
Maximum operating temperature reaches 120°C, ensuring durability in demanding environments.
Compliance with CSA and UL standards demonstrates electrical safety and quality.

Product Description

Idec AL6H-M24P-R is an illuminated momentary push button switch from the AL Series, designed for panel mounting with a 16 mm cutout. It features a white actuator style button and double-pole double-throw (DPDT) contacts, making it suitable for complex control circuits. Rated at 250 V AC and with an IP65 ingress protection rating, it offers reliable operation in industrial and automation environments.

This switch includes a red LED for illumination, providing clear indication of switch status. Its quick connect and solder tag terminals facilitate easy and secure wiring. The maximum operating temperature rating of 120°C ensures robust performance in demanding or elevated temperature settings. The device adheres to CSA and UL standards, ensuring compliance with recognized safety norms.

The compact and space-saving design of the Idec AL Series push button switches allows integration in various control panels, machinery, and automation systems. The momentary operation makes this switch ideal for input signals in programmable logic controllers (PLCs), industrial controls, and operator interfaces.

The actuator color is white, enhancing user visibility. Momentary action provides temporary switch engagement. Illumination with a durable red LED improves operational feedback. IP65 rating protects against dust and water, suitable for harsh conditions.

DPDT contact configuration offers multiple switching options. Quick connect and solder tag terminals enable efficient installation. Maximum operating temperature rating of 120°C supports high-temperature applications. Certified to CSA and UL standards ensuring reliable and safe use.

Panel mount design fits standard 16 mm cutout openings. Ideal for automation, control panels, and industrial equipment requiring precise user inputs.

This product originates from China and is provided in a new condition. Ideal for users seeking a high-quality illuminated push button switch for demanding industrial and commercial applications.
