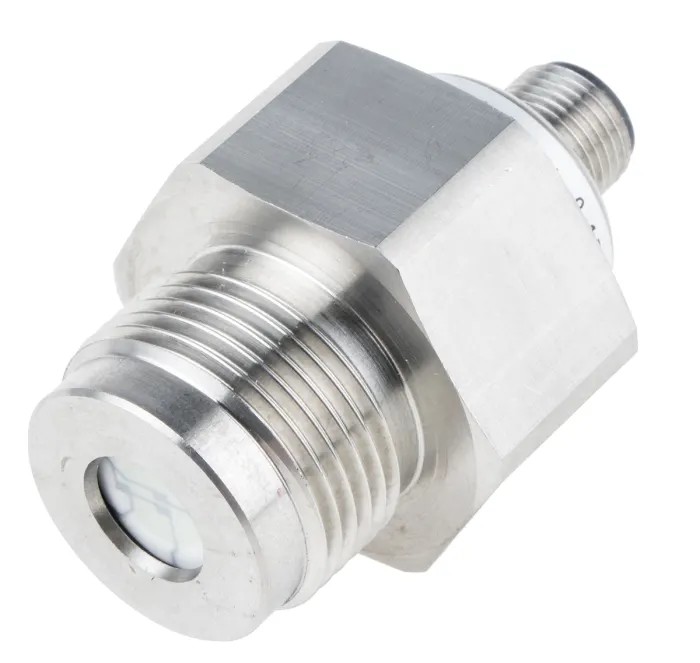

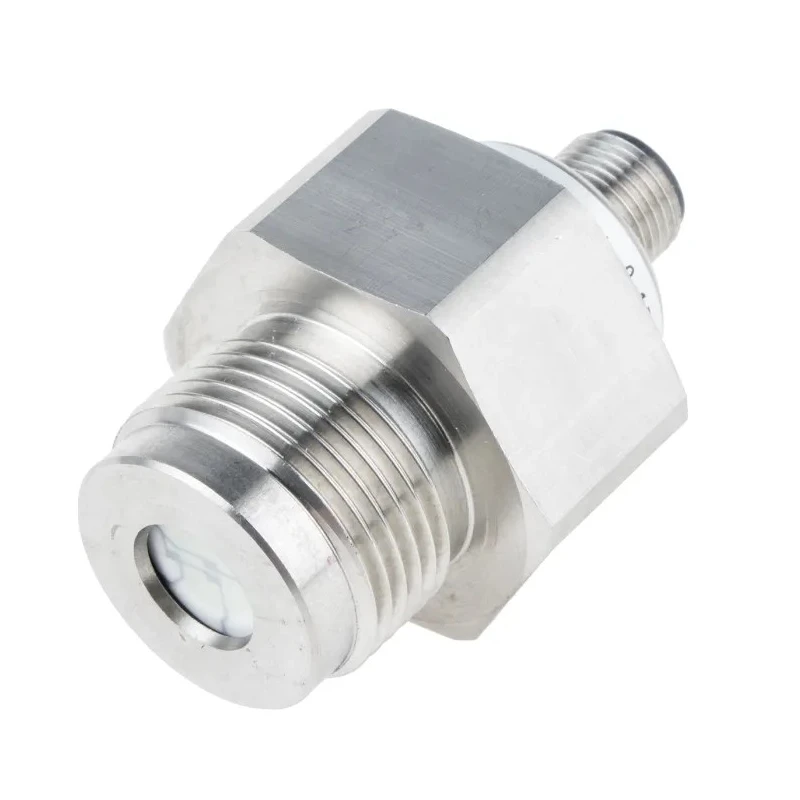

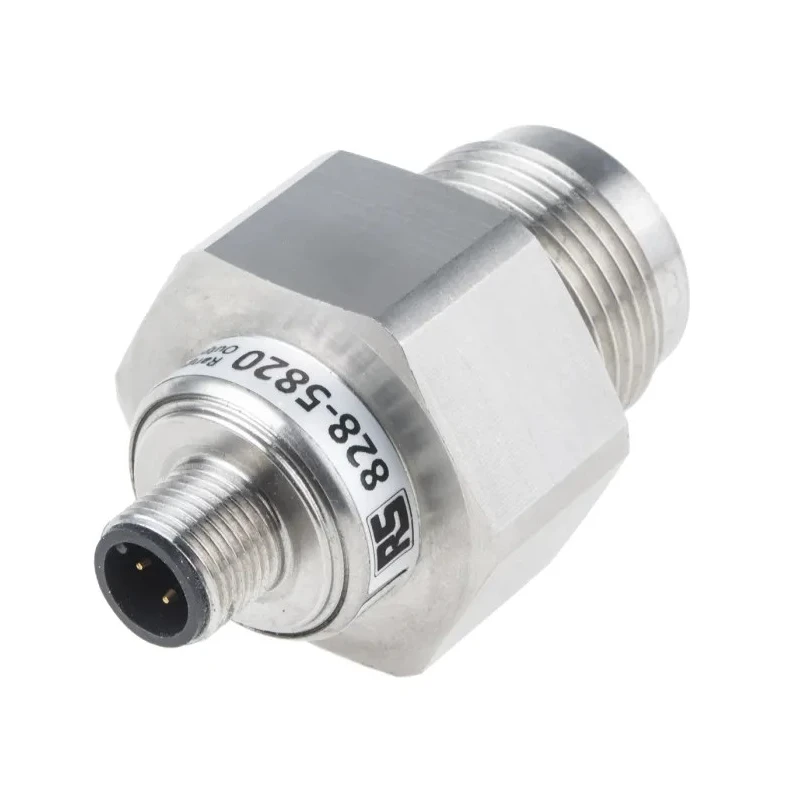

RS PRO Pressure Sensor 4 to 20 mA Output Absolute Reading 0 to 1 bar 828-5820
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | RS PRO |
| Model | 828-5820 |
| IP Rating | IP65 |
| Gross Weight | 100 g |
| Mount Type | Semi-Flush |
| Housing Material | Stainless Steel |
| Housing | Stainless Steel 303 |
| Output type | 4 to 20 mA |
| Maximum Operating Temperature | 125°C |
| Diaphragm | 316L Stainless Steel |
| Minimum Operating Temperature | -20°C |
| Terminal type | M12 Connector |
| Standards/Approvals | CE EMC directive EN 61326-1:2013 |
| Maximum Pressure Measurement | 1bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 32V dc |
| Minimum Supply Voltage | 9V |
| Pressure Reading Type | Absolute |
| Standards/Approvals CE EMC directive EN 61326-1 | 2013 |
| O ring seals | Viton |
| Media wetted parts | Housing & connection, O ring seal, diaphragm |
| Installation position | Flexible |
Key Features
- Features a piezo-resistive thick film ceramic sensor for accurate pressure detection.
- Equipped with an M12 Connector terminal type ensuring secure electrical connection.
- Operates within wide temperature range from -20°C to 125°C.
- Offers high accuracy of ±0.25% for precise pressure monitoring.
- Constructed with stainless steel housing for robust and durable performance.
- Designed with IP65 rating for protection against dust and water ingress.
- Compatible with supply voltages between 9V and 32V DC.
- Suitable for diverse industrial applications including mechanical engineering and environmental control.
Product Description
RS PRO 828-5820 Pressure Sensor delivers reliable absolute pressure readings from 0 to 1 bar with a 4 to 20 mA current output signal. This robust sensor employs a piezo-resistive thick film ceramic sensor encapsulated in a stainless steel 303 housing ensuring excellent media compatibility and durability in harsh industrial environments.
Designed for industrial and laboratory applications, it supports operating temperatures ranging from -20°C to 125°C and is resistant to dust and moisture with an IP65 rating. The sensor integrates a microprocessor-based amplifier that requires no adjustments, providing stable and consistent signal output critical for applications in mechanical engineering, environmental engineering, automotive testing, pneumatics, agricultural machinery, and laboratory testing.
This device is fitted with an M12 connector for secure and easy electrical termination and operates effectively within supply voltages of 9V to 32V DC. The flexible installation position and long operational life over 100 million cycles make it an ideal component for demanding industrial measurement systems.
The sensor features Viton O-ring seals and a 316L stainless steel diaphragm for long-lasting resistance to various media. Supplied with calibration data and a traceable serial number, the RS PRO 828-5820 provides precision and reliability for critical pressure measurement tasks.
Piezo-resistive thick film ceramic sensor ensuring accurate pressure detection. Rugged stainless steel 303 housing for durability and media compatibility. Output 4 to 20 mA for standardized instrumentation interfacing. Installation flexible to accommodate diverse mounting requirements.
IP65 rating offers protection against dust and water. Wide operating temperature range from -20°C to 125°C. Viton O-ring seals and 316L stainless steel diaphragm for chemical resistance. Microprocessor-based electronics for stable and calibration-free operation.
Suitable for mechanical engineering, automotive testing, pneumatics, and laboratory use. Discover more products like the RS PRO 828-5820 Pressure Sensor in the Sensors category at EnvMart, your trusted partner for industrial and automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO 828-5820 Pressure Sensor measures absolute pressure from 0 to 1 bar.
It features a 4 to 20 mA current output signal for standardized instrumentation interfacing.
This pressure sensor offers an accuracy of ±0.25% for precise pressure monitoring.
The sensor operates within a wide temperature range from -20°C to 125°C.
It is constructed with a stainless steel 303 housing and features a 316L stainless steel diaphragm, along with Viton O-ring seals for chemical resistance.
The RS PRO 828-5820 is equipped with an M12 connector terminal type for secure electrical connection.
Yes, it has an IP65 rating, providing protection against dust and water ingress.
The maximum supply voltage for this model is 32V DC.
The installation position is flexible, allowing for diverse mounting requirements.
It is suitable for various industrial applications, including mechanical engineering, automotive testing, pneumatics, and laboratory use.
The gross weight of this pressure sensor is 100 g.
It complies with the CE EMC directive EN 61326-1:2013.
