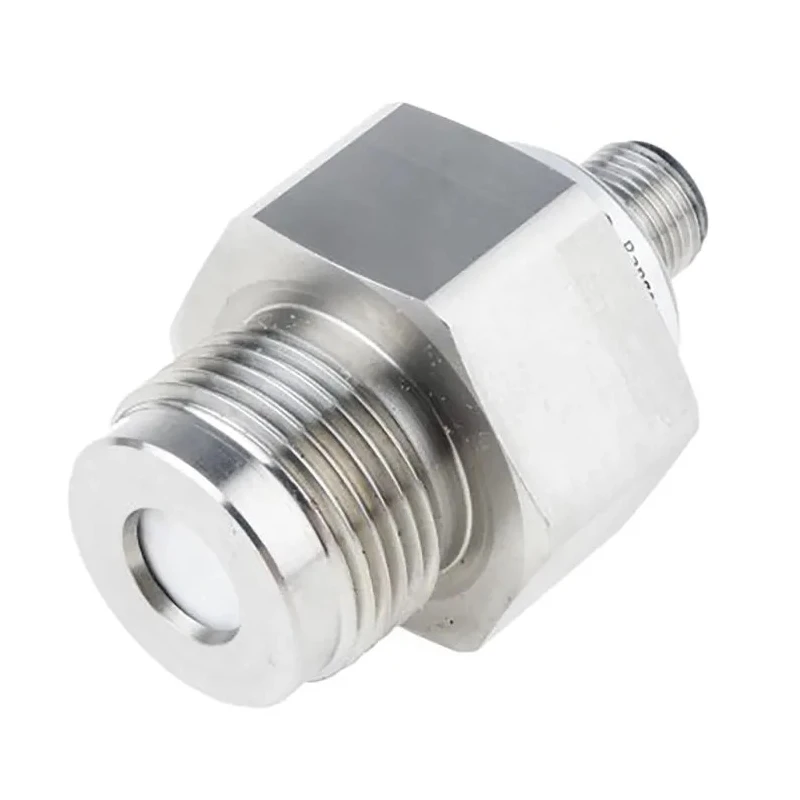

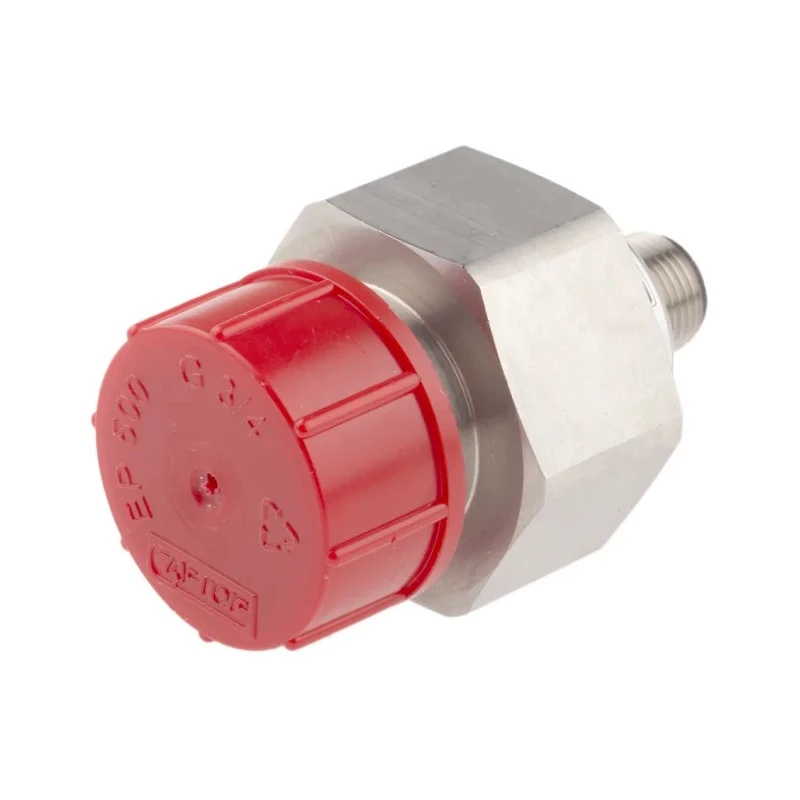

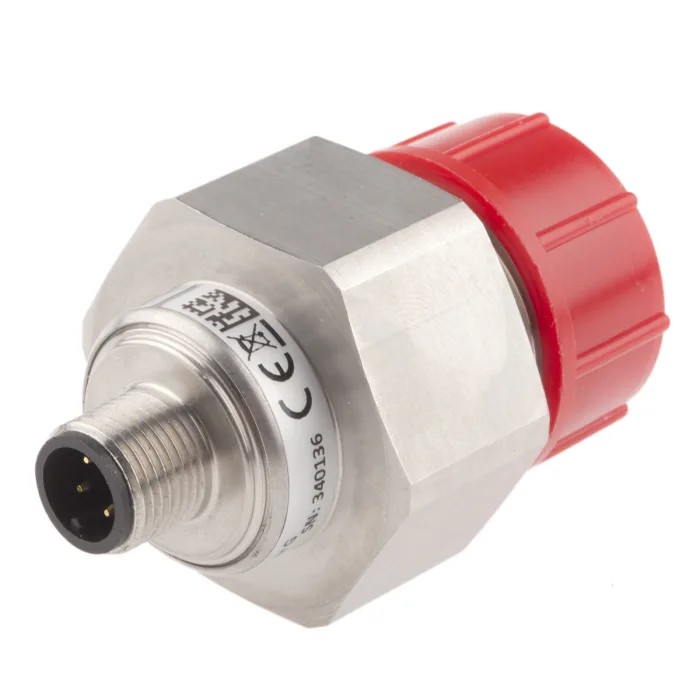

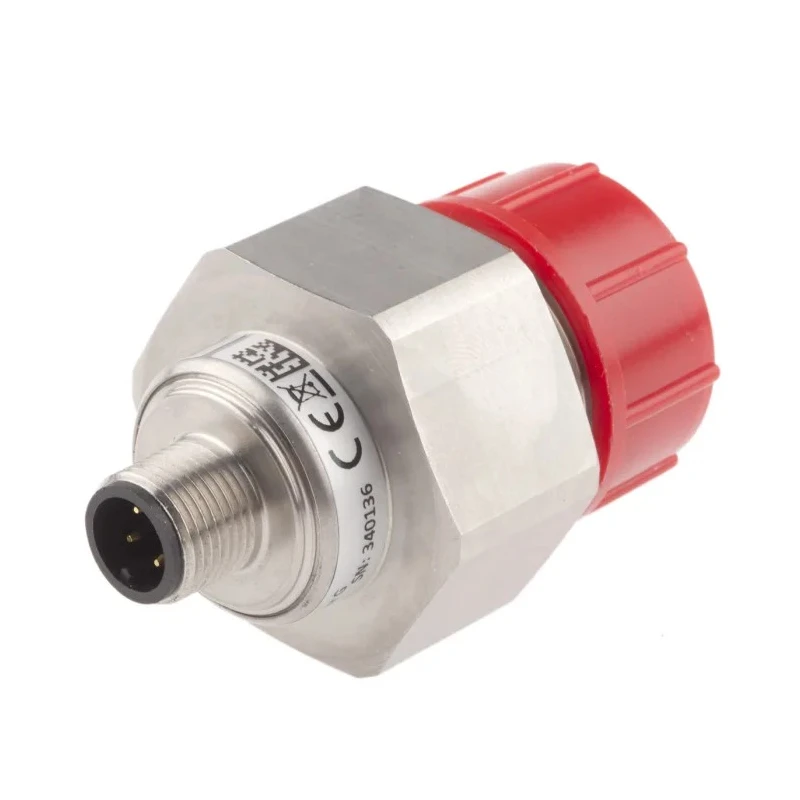

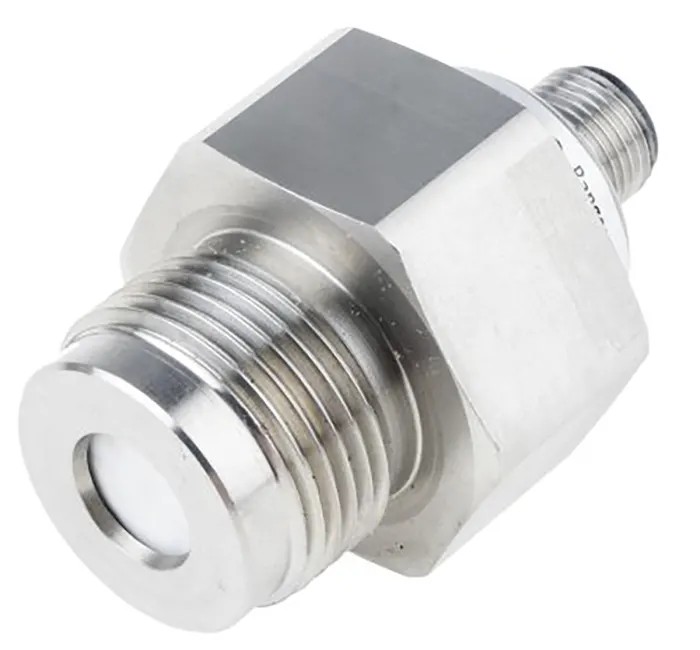

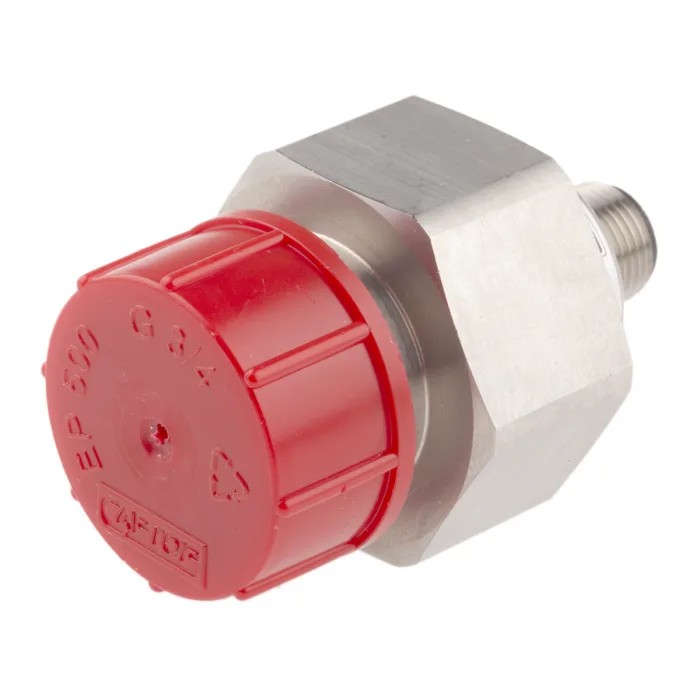

RS PRO Pressure Sensor, Current Output, Relative Reading, -1 bar to 1 bar Measurement Range, Stainless Steel 828-5811
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | RS PRO |
| Model | 828-5811 |
| IP Rating | IP65 |
| Gross Weight | 100 g |
| Mount Type | Semi-Flush |
| Housing Material | Stainless Steel |
| Housing | Stainless Steel 303 |
| Output type | Current |
| Maximum Operating Temperature | 125°C |
| Diaphragm | 316L Stainless Steel |
| Minimum Operating Temperature | -20°C |
| Terminal type | M12 Connector |
| Standards/Approvals | CE |
| Maximum Pressure Measurement | 1bar |
| Minimum Pressure Measurement | -1bar |
| Maximum Supply Voltage | 32V dc |
| Minimum Supply Voltage | 9V |
| Pressure Reading Type | Relative |
| Media Measured | Water, Viscous Fluid |
| O ring seals | Viton |
| Media wetted parts | Housing & connection, O ring seal, diaphragm |
| Installation position | Flexible |
Key Features
- Accurate pressure measurement with ±0.25% accuracy.
- Compact and rugged design with stainless steel 303 housing.
- Wide operating temperature range from -20°C to 125°C ensures reliability.
- M12 connector terminal for secure and flexible installation.
- CE certified and IP65 rated for dust and water resistance.
- Media compatibility includes water and viscous fluids.
- High operational life exceeding 100 million cycles.
- Flexible installation position for versatile use cases.
Product Description
RS PRO 828-5811 Pressure Sensor is designed for precise pressure measurement with current output and a relative pressure reading range from -1 bar to 1 bar. It features a piezo-resistive thick film ceramic sensor housed in a stainless steel 303 casing, providing excellent material compatibility and durability for water, viscous fluid, and gas media applications.
The sensor is compact, rugged, and equipped with an M12 connector terminal for reliable electrical connections. The output signal is a standard 4-20 mA current, widely used in industrial automation and process control systems for accurate pressure monitoring.
Operating within a temperature range from -20°C to 125°C and rated to IP65, it is suitable for harsh environments and mechanical, environmental engineering, automotive testing, pneumatics, agricultural machinery, and laboratory testing applications.
The sensor's diaphragm is made of 316L stainless steel with Viton O-ring seals ensuring high resistance to wear and chemical corrosion. The device incorporates a microprocessor-based amplifier with temperature compensation, delivering stable and accurate results without need for adjustments.
The RS PRO 828-5811 comes with CE certification, guaranteeing compliance with industry standards. Its flexible installation position and operational life exceeding 100 million cycles provide long-term functionality in demanding industrial settings.
Accurate pressure measurement with ±0.25% accuracy. Compact stainless steel housing ensures durability. Standard 4-20 mA current output for industrial compatibility. Broad operating temperature range, -20°C to 125°C. IP65 rated for protection against dust and water ingress.
M12 connector terminal for secure sensor wiring. Media compatibility with water and viscous fluids. Flexible installation position for versatile application. Long operational life exceeding 100 million cycles. Includes Viton O-ring seals and 316L stainless steel diaphragm.
This Pressure Sensor is ideal for industries such as mechanical engineering, environmental engineering, automotive testing, pneumatics, agricultural machinery, and laboratory testing.
Explore more high-quality sensors and pressure measurement instruments at EnvMart for your industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this pressure sensor is from -1 bar to 1 bar.
It has an accuracy of ±0.25%.
This sensor provides a standard 4-20 mA current output.
The operating temperature range is from -20°C to 125°C.
The housing is made of stainless steel 303, and the diaphragm is made of 316L stainless steel with Viton O-ring seals.
Yes, it is rated IP65 for dust and water resistance, making it suitable for harsh environments.
It is compatible with water and viscous fluids.
It uses an M12 connector terminal for secure electrical connections.
The operational life exceeds 100 million cycles.
The gross weight of this sensor is 100 g, but specific dimensions are not provided.
It is CE certified, ensuring compliance with industry standards.
Yes, it allows for a flexible installation position for versatile applications.
