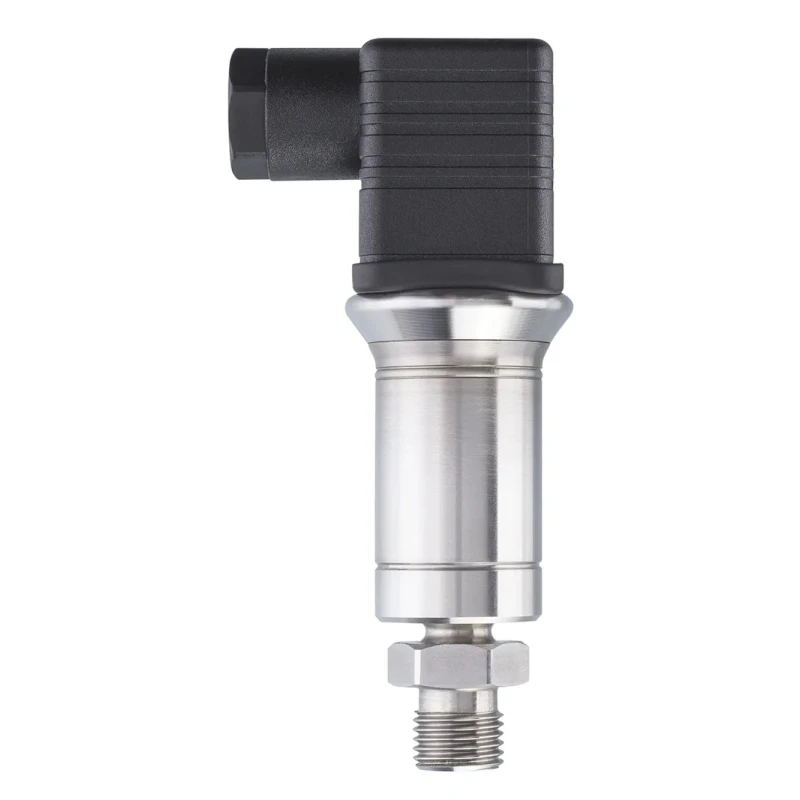

RS PRO Pressure Sensor 0.5/4.5 V Output 0 Bar to 0.75 Bar Gauge Reading 828-5732

RS PRO 828-5732 Pressure Sensor is a high-quality gauge pressure sensor designed for industrial and laboratory applications requiring precise pressure measurement between 0 bar and 0.75 bar. This device utilizes a piezo-resistive thick film ceramic sensor located within a durable stainless steel 303 housing, providing excellent media compatibility and resistance to wear.

The sensor offers a 0.5 to 4.5 V output that accurately translates pressure forces into electrical signals, suitable for interfacing with automation and control systems. It features a plug terminal type with a DIN interface and a threaded mount allowing for straightforward installation flexibility.

Its operating temperature range extends from -20°C to 125°C with an ingress protection rating of IP65, enabling reliable performance in harsh environments. The sensor is calibrated, temperature compensated, and equipped with a flexible installation position. Media wetted components include housing, O-ring seals made of Viton, and a diaphragm constructed from 316L stainless steel, ensuring durability in oil measurement applications.

The product is CE compliant with the EMC directive EN 61326-1:2013, ensuring adherence to electromagnetic compatibility standards. It boasts an accuracy of ±0.25%, an operational life exceeding 100 million cycles, and robust insulation resistance with over 50 MΩ at 50 V dc.

Typical industrial applications include mechanical engineering, environmental monitoring, automotive testing, pneumatics, agricultural machinery, and laboratory testing. This sensor is a reliable solution for converting physical pressure into actionable electrical signals in various commercial and industrial systems.

Equipped with a piezo-resistive thick film ceramic sensor for reliable pressure measurement. Compact and rugged stainless steel housing for durability and corrosion resistance. Output signal type is 0.5/4.5 V suitable for various industrial control systems.

Operates between -20°C and 125°C with an IP65 rating for environmental protection. Threaded mount type with flexible installation options. Designed for media such as oil, ensuring compatibility and long life. High accuracy of ±0.25% and CE EMC directive compliance.

Power supply voltage range from 9 V minimum up to 32 V dc maximum. Explore our full range of Pressure Sensors and instrumentation devices at EnvMart for comprehensive automation and industrial measurement solutions.
