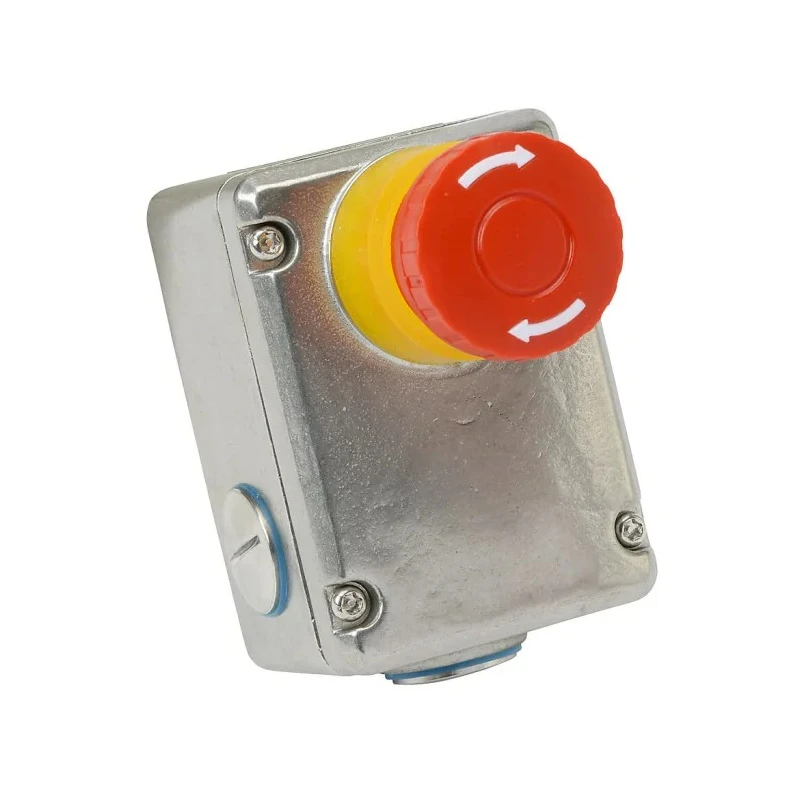

IDEM ESL Series Twist Release Emergency Stop Push Button, Surface Mount, 2 NC/2 NO, IP67, IP69K 232001

IDEM 232001 ESL Series Twist Release Emergency Stop Push Button offers industry-grade safety for machines or conveyors requiring rugged emergency stop solutions. Featuring a surface mount design, this push button is engineered for high reliability and compliance with industrial safety standards.

The push button includes a 40 mm red plastic mushroom actuator with a twist release mechanism to reset after activation. Its 2 normally closed (NC) and 2 normally open (NO) contacts provide versatile dual-channel operation compatible with category 4/PLe safety monitoring systems to ISO13849-1.

Constructed with a stainless steel 316 housing, it is rated IP67 and IP69K, allowing it to withstand dust ingress, immersion, and high-pressure water jets at temperatures up to 80°C with detergent. The enclosure’s robustness makes it ideal for exposed conveyors and harsh industrial environments where regular supervision may not be feasible.

A padlockable protective shroud enables secure lock off during maintenance periods, enhancing safety protocols. The push button also incorporates a unique lid safety trip mechanism that forces contacts to open if the lid is removed, further ensuring operational safety.

This emergency stop switch has a voltage rating of 24V DC and 240V AC, with a withstand voltage of 2500V. It operates within an ambient temperature range from -25°C to +80°C and uses screw-type terminals requiring conductors up to 2.5 mm².

Stainless steel 316 housing rated IP67 and IP69K for dust and high-pressure water protection. Red 40 mm plastic mushroom push button with twist release reset. 2 NC and 2 NO contacts for dual channel safety circuits. Padlock holes for lock off during maintenance.

Operating temperature range: -25°C to +80°C. Contact DC voltage 24V, AC voltage 240V. Non-illuminated push button with lid safety trip mechanism. Surface mount with screw terminal connections and round head style.

This Emergency Stop Push Button is suited for industrial automation, manufacturing lines, conveyor safety, and machinery requiring robust, reliable safety shutdown controls. It provides essential protection in applications where machinery or conveyors expose operators to hazards.
