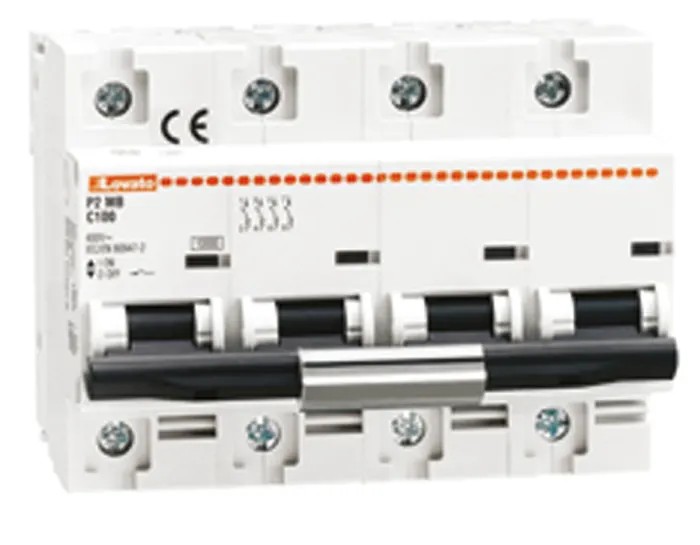

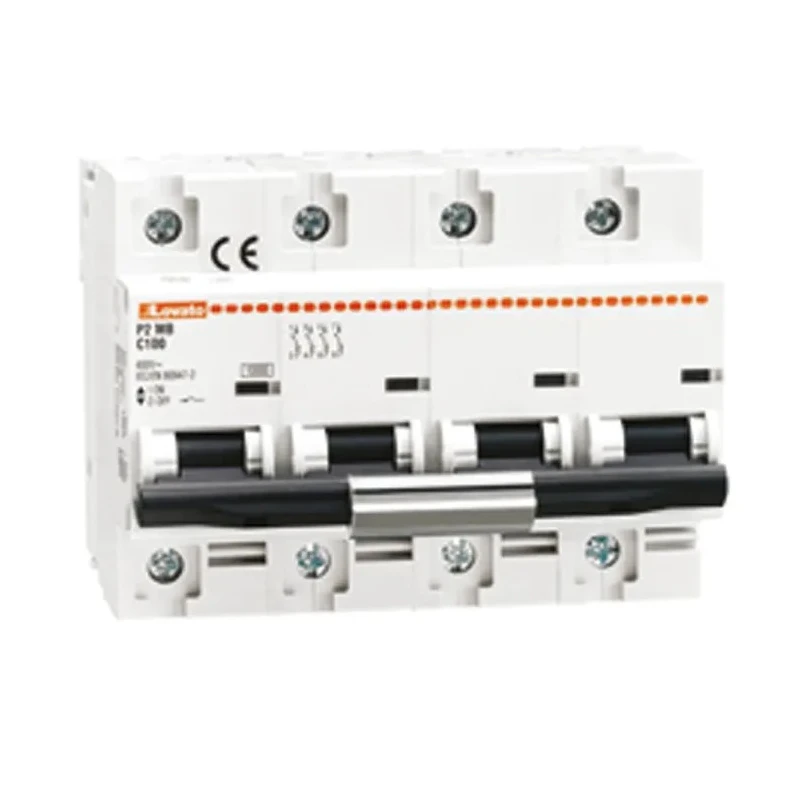

Lovato Electric Modulo P2MB Miniature Circuit Breaker 4-Pole 125A Type C 400V AC 60V DC 10kA Breaking

Lovato Electric P2MB4PC125 Miniature Circuit Breaker, part of the Modulo P2MB series, is a high-performance 4-pole breaker rated at 125A with Type C tripping characteristics. It supports AC voltage up to 400V and DC voltage up to 60V, making it suitable for a wide range of electrical applications requiring robust protection. The breaker features a 10 kA breaking capacity which ensures safe interruption of high fault currents, protecting electrical systems from damage during short-circuit events.

The design includes a thermal magnetic tripping mechanism that combines thermal elements for overload protection and magnetic elements for instantaneous short circuit trip, providing enhanced reliability. With dimensions of 108mm width, 85mm height, and 80mm depth, installation on DIN rails is quick and space-efficient.

Screw terminal connections offer secure and reliable wiring, while the IP20 rating protects the internal components against solid foreign objects. The product complies with recognized international standards including IEC/EN/BS 60898-1, IEC/EN/BS 60947-2, UL 1077, CSA, cURus, and EAC, confirming its quality and safety for industrial and commercial electrical installations.

This circuit breaker is commonly employed in industrial automation systems, electrical distribution boards, commercial and residential buildings, and photovoltaic installations, providing essential circuit safety and operational reliability. The Type C tripping characteristic is specifically effective in handling inductive loads such as motors by allowing higher short-term overload before tripping.

Manufactured in Italy, the Lovato P2MB series Miniature Circuit Breakers are built for long service life and consistent performance, ensuring electrical protection demands are met with confidence.

Rated for 400V AC and 60V DC operation ensuring versatile use. 10 kA breaking capacity provides high fault current interruption capability. Compact size designed for DIN rail mounting simplifies installation. Thermal Magnetic tripping mechanism offers reliable instantaneous trip protection.

Screw-type terminals ensure secure and easy wiring connections. IP20 rated enclosure offering basic protection against solid objects. Meets multiple international standards including IEC/EN, UL, CSA, cURus, and EAC for quality assurance.

Ideal for use in industrial automation, electrical panels, commercial buildings, and renewable energy systems. Constructed in Italy to high-quality standards for durability and long service life. Explore EnvMart’s extensive category of Miniature Circuit Breakers for additional protective devices and electrical components from trusted brands.
