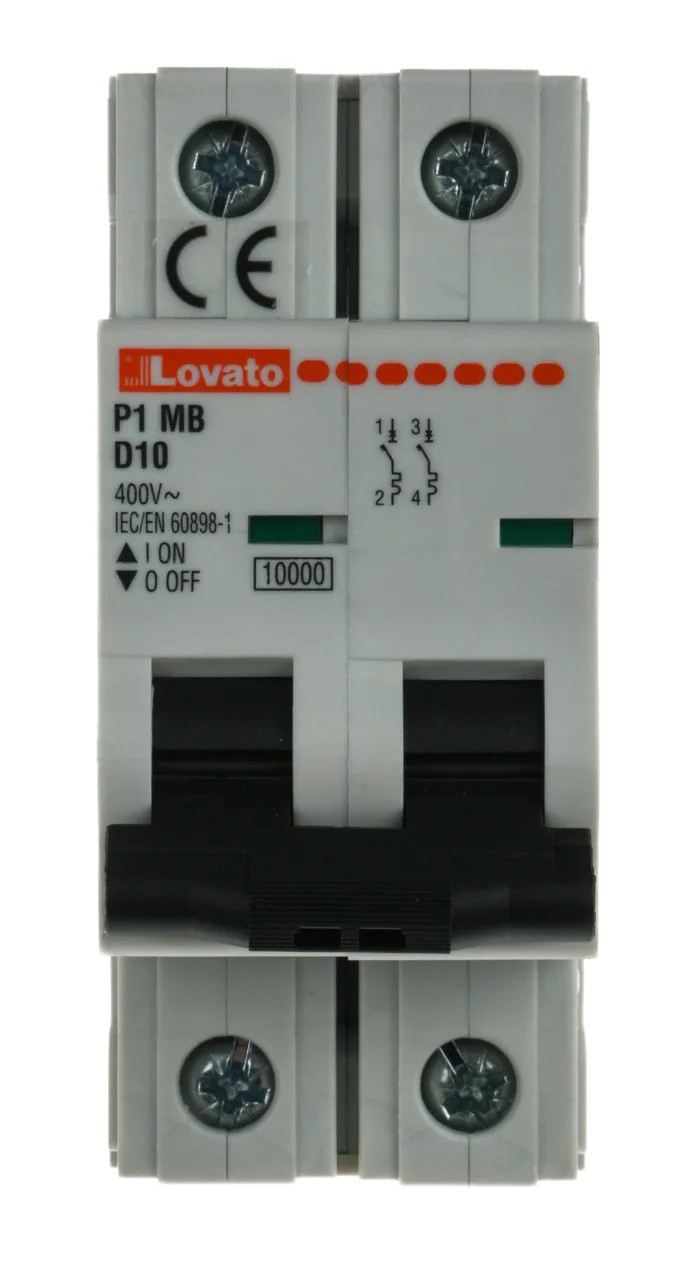

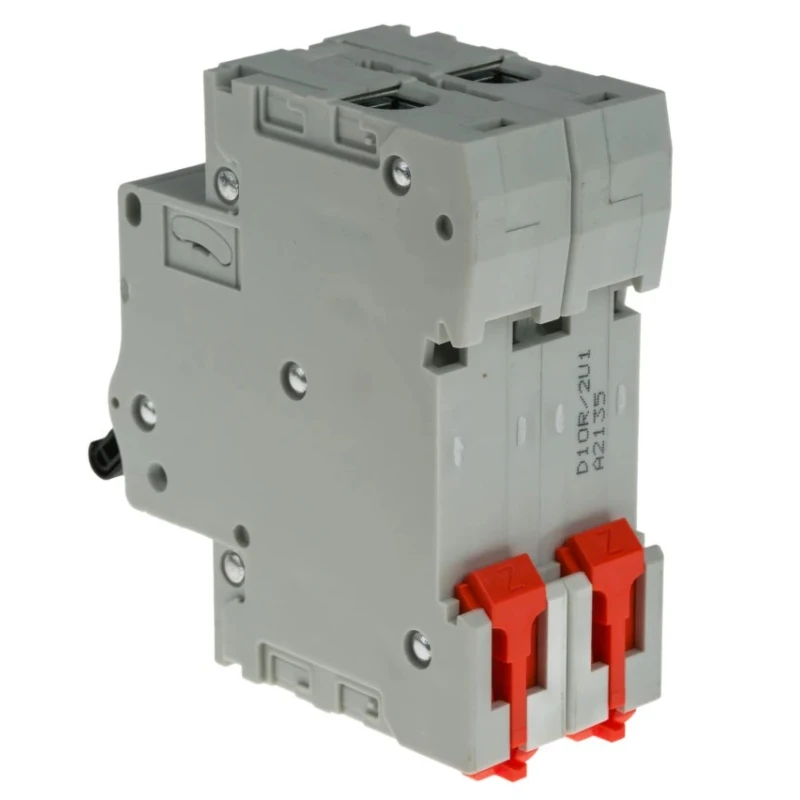

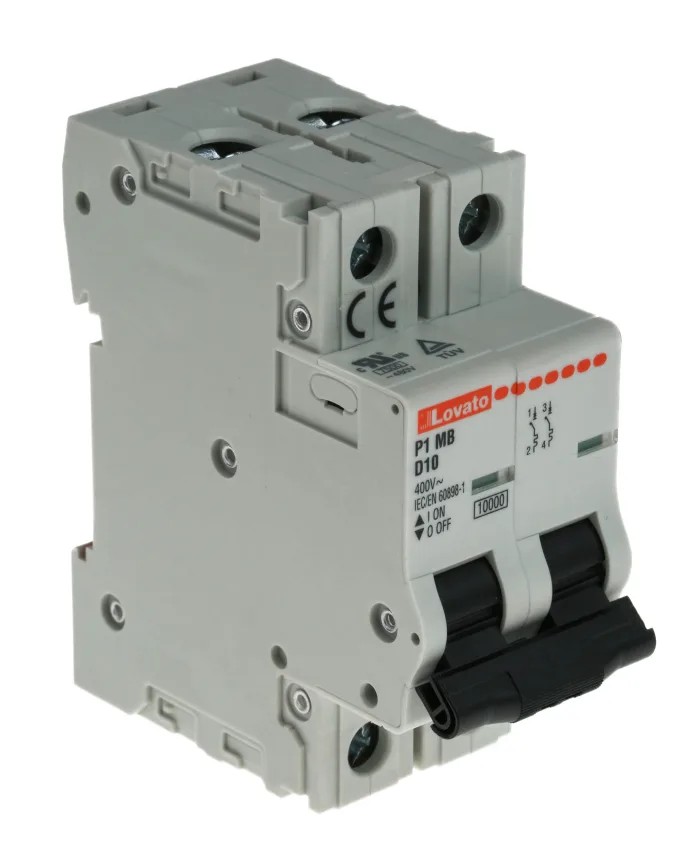

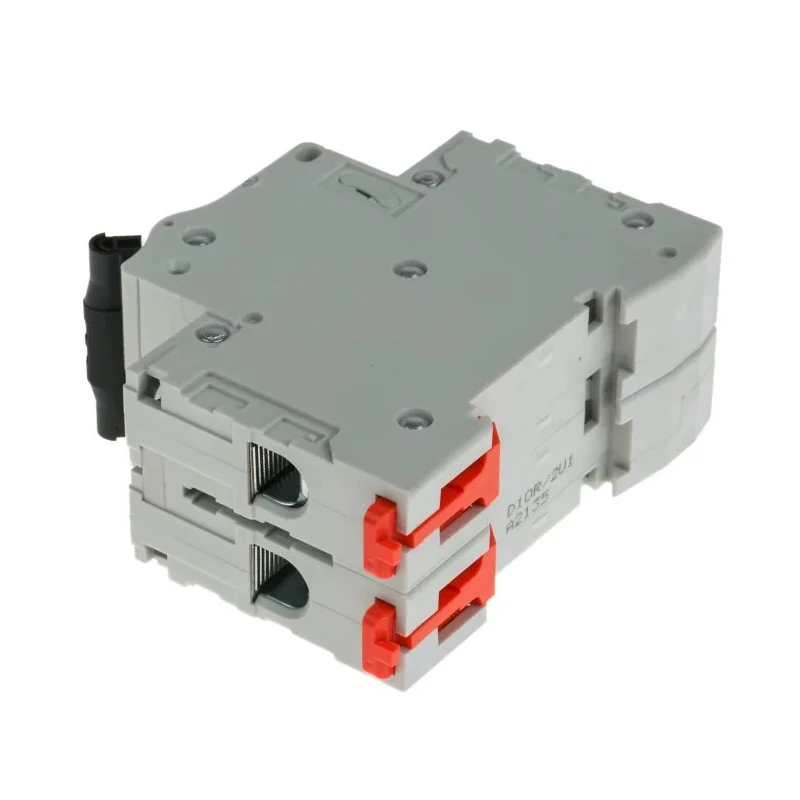

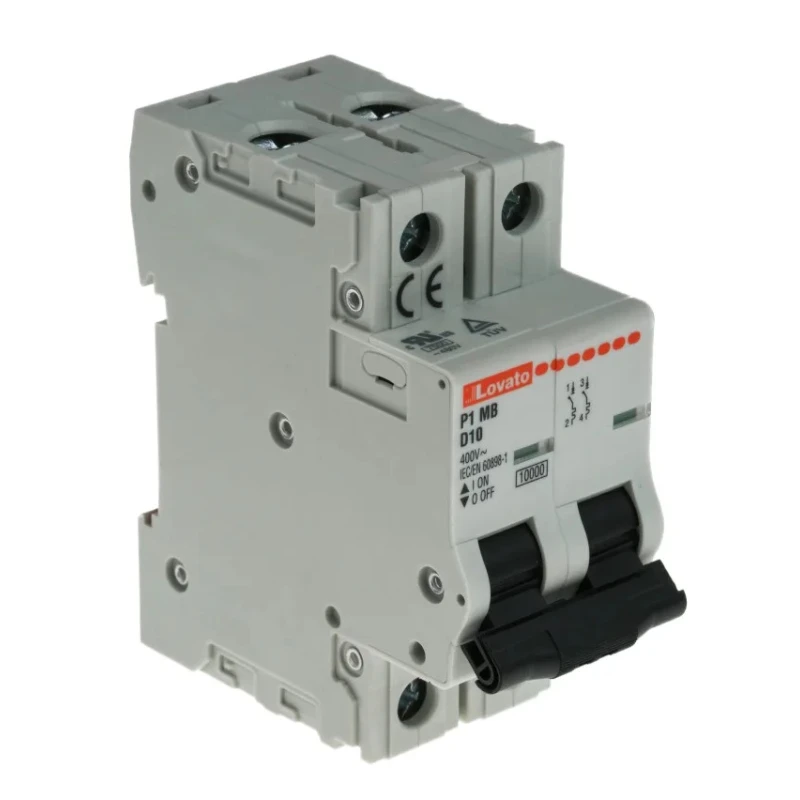

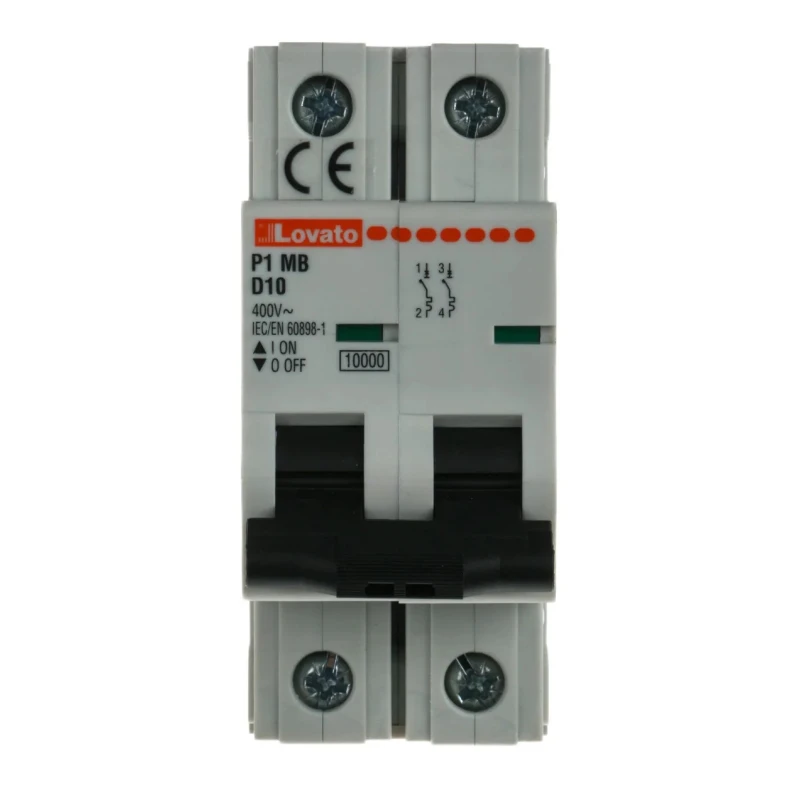

Lovato Electric Modulo P1MB Miniature Circuit Breaker, 2-Pole, 10A, Type D, 400V AC, 80V DC, 10 kA Breaking P1MB

Lovato Electric P1MB Miniature Circuit Breaker P1MB is a 2-pole electrical safety device designed to provide reliable circuit protection at 10A current rating with Type D tripping characteristics. Built for versatility, it supports a rated operational voltage of 400V AC and 80V DC, making it suitable for various industrial and residential applications.

The compact breaker measures 36mm in width, 86.5mm in height, and 80mm in depth, and is designed for mounting on a standard 35mm DIN rail. Its screw terminal type supports conductor sizes ranging from 1 mm² to 35 mm², allowing flexible wiring options.

Featuring a thermal magnetic tripping mechanism with instantaneous break time, this circuit breaker responds rapidly to overloads or short circuits. Its Type D tripping characteristic is ideal for applications with high inrush currents, such as motors and automation systems.

With a breaking capacity of 10 kA, the module ensures high fault interruption capability, providing safety and protection against electrical faults. The IP20 frontal protection protects the operator in diverse environments, while the device is rated for an electrical life of 10,000 cycles, ensuring long-term durability.

Operating efficiently in ambient temperatures from -40°C to +70°C and at altitudes up to 2000 meters, this MCB is suited for demanding industrial environments as well as residential installations. Its modular design supports easy installation and maintenance.

Applications include industrial electrical circuit protection, residential safety enhancements, machinery control, and automation systems where reliable circuit interruption is critical.

The circuit breaker supports dual-phase applications with a secure DIN rail mount. It operates at rated AC voltage of 400V and DC voltage up to 80V. Type D tripping characteristic offers high inrush current protection. Designed with screw terminals accommodating conductor sizes from 1 mm² to 35 mm².

Features a breaking capacity of 10 kA ensuring safety under fault conditions. The compact design measures 36mm width, 86.5mm height, and 80mm depth. It includes IP20 frontal protection for safe operations in varied environments.

The thermal magnetic tripping mechanism enables instantaneous break time. Rated for electrical life of 10,000 operational cycles. Suitable for residential, industrial, machinery, and automation systems requiring reliable circuit control.
