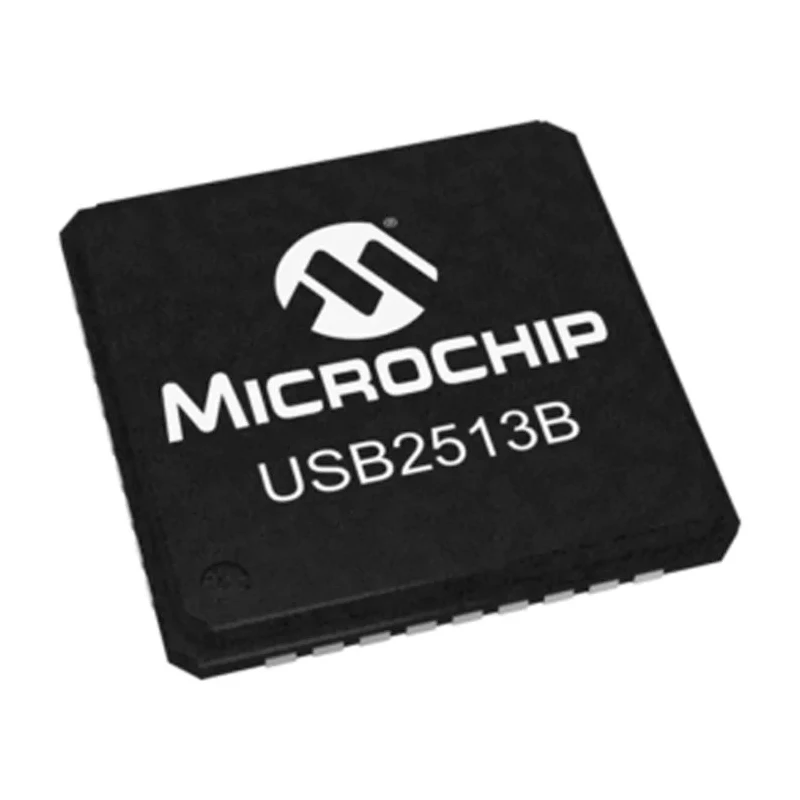

Microchip USB2513BI-AEZG Controller IC USB 2.0, 1-Channel 480 Mbps, 3.3V-4.6V, 36-Pin QFN USB Interface IC USB2513BI-AEZG

Microchip USB2513BI-AEZG Controller IC USB 2.0 1-Channel is a high-performance, low-power USB 2.0 hub controller designed to support 480 Mbps data transfer rates. Powered by a single supply voltage ranging from 3.3V to 4.6V, this device comes in a compact 36-pin QFN package optimized for surface mounting with a length of 6.15 mm and height of 950 μm. Its industrial-grade operating temperature range from -40°C to 85°C ensures reliable operation in diverse environments.

This controller employs Microchip's MultiTRAK™ technology, providing a dedicated transaction translator per downstream port to maintain consistent full-speed data throughput irrespective of the number of active connections. It fully complies with the USB 2.0 specification and supports USB Battery Charging specification Rev. 1.1 for charging downstream ports.

Port management features include PortMap allowing flexible port mapping and disable sequencing, PortSwap which enables programmable USB differential-pair pin locations to align USB signals directly with connectors, and PHYBoost for programmable USB signal drive strength to recover signal integrity.

The device is fully customizable to simplify PCB layout and serves as a drop-in replacement for USB251x/USB251xA devices. It incorporates ESD protection, enhancing device robustness against electrostatic discharge events. Its versatile compatibility supports Hi-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) USB communications.

This controller IC is ideal for industrial, computing, and communication applications requiring efficient USB 2.0 hub management and power delivery. Its design makes it suitable for use in embedded system development and USB hub applications.

High-performance USB 2.0 hub controller with 1 channel. Supports USB Battery Charging specification Rev. 1.1 for charging downstream ports. Offers MultiTRAK technology for dedicated transaction translator per port. Features flexible port mapping with PortMap and PortSwap capabilities.

Programmable USB signal drive strength using PHYBoost feature. Fully customizable device facilitating simplified PCB layout. Provides ESD protection for reliable operation. Operating temperature range from -40°C to 85°C ensures industrial suitability.

Compact 36-pin QFN surface mount package with 6.15 mm length and 950 μm height. Compatible with USB 2.0 protocol and supports full/low speed communication. Explore our extensive range of semiconductor USB Interface ICs on EnvMart for advanced industrial and commercial electronics solutions.
