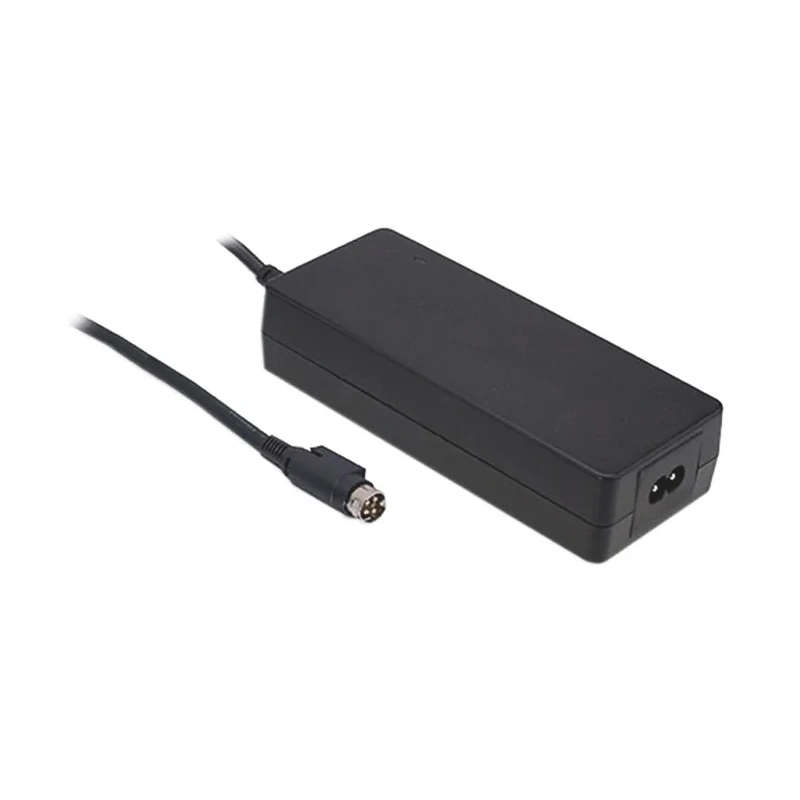

MEAN WELL 120W AC/DC Adapter C8 Plug 100-264V AC Input 12V DC Output 8.5A GSM120B12-R7B
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | GSM120B12-R7B |
| Cable Length | 1000mm |
| Overall Length | 167mm |
| Series | GSM120 |
| Overall Width | 67mm |
| Maximum Operating Temperature | 60°C |
| Plug Type | C8 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Current | 8.5A |
| Standards/Approvals | CE, IEC 60950-1, UL 60950-1 |
| Minimum Input Voltage | 100V ac |
| Overall Depth | 35mm |
| Minimum Output Voltage | 12V dc |
| Input Connector Type | IEC 320-C8 |
Key Features
- Supports wide input voltage range from 100V to 264V AC.
- Equipped with C8 plug and IEC 320-C8 input connector type.
- Features high efficiency up to 91.5% and low no-load power consumption less than 0.15W.
- Meets medical safety standards with low leakage current below 100μA.
- Compact dimensions measuring 167mm length, 67mm width, and 35mm depth.
- Operates reliably in temperatures up to 60°C with fanless cooling design.
- Provides protection against short circuit, overload, over voltage, and over temperature.
- Enclosed in UL94V-0 flame retardant plastic case ensuring safety and durability.
Product Description
MEAN WELL GSM120B12-R7B 120W AC/DC Adapter provides a reliable power solution with 12V DC output at a maximum current of 8.5A, suitable for various medical and electronic applications.
This adapter supports a wide input voltage range from 100V to 264V AC, making it compatible with global power supplies. Featuring a C8 plug type and IEC 320-C8 input connector, it is designed for ease of installation and use.
The unit boasts high efficiency of up to 91.5%, aiding energy savings and reducing operational costs. Its no-load power consumption is less than 0.15W, and the leakage current is below 100μA, complying with stringent medical safety regulations, including ANSI/AAMI ES60601-1 and IEC 60601-1 3rd edition.
Its fanless design utilizes natural convection cooling, allowing operation in ambient temperatures up to 60°C with minimal noise and maintenance. The adapter provides comprehensive protection features including short circuit, overload, over voltage, and over temperature safeguards.
Encased in a robust UL94V-0 flame retardant plastic housing, the GSM120B12-R7B is a Class II power supply without an earth ground pin, ensuring safety in patient-contact medical equipment and portable devices.
Certified under CE, UL, CUL, TUV, CB, FCC, and meets ErP step 2 (Level V) energy efficiency and EISA 2007 standards, this model ensures both performance and compliance for demanding industrial, laboratory, and medical environments.
Supports wide input voltage from 100 to 264V AC for versatile global use. High efficiency up to 91.5% reduces power loss and heat generation. Low leakage current less than 100μA for patient safety in medical applications.
Fanless cooling design provides silent operation and less maintenance. Multiple protection features: short circuit, overload, over voltage, and thermal shutdown. UL94V-0 flame retardant enclosure ensures safety and durability.
Compact form factor with dimensions 167mm × 67mm × 35mm. Complies with stringent international medical safety standards. Energy-saving design meeting ErP step 2 and EISA 2007 requirements.
This MEAN WELL AC/DC Adapter is an ideal power supply choice for medical devices, electronic instruments, and industrial equipment requiring safe, efficient, and reliable DC power sources.
Browse EnvMart's extensive range of AC/DC Adapters for more power supply solutions designed to meet diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 8.5A.
It supports a wide input voltage range from 100V to 264V AC.
The output voltage of this unit is 12V DC.
This adapter uses a C8 plug type.
The dimensions are 167mm in length, 67mm in width, and 35mm in depth.
It complies with CE, IEC 60950-1, and UL 60950-1 safety standards.
The maximum operating temperature is 60°C.
The no-load power consumption is less than 0.15W.
Yes, it includes protections against short circuit, overload, over voltage, and over temperature.
The cable length is 1000mm.
It features a fanless cooling design that utilizes natural convection.
This adapter is suitable for various medical and electronic applications requiring 12V DC power.
