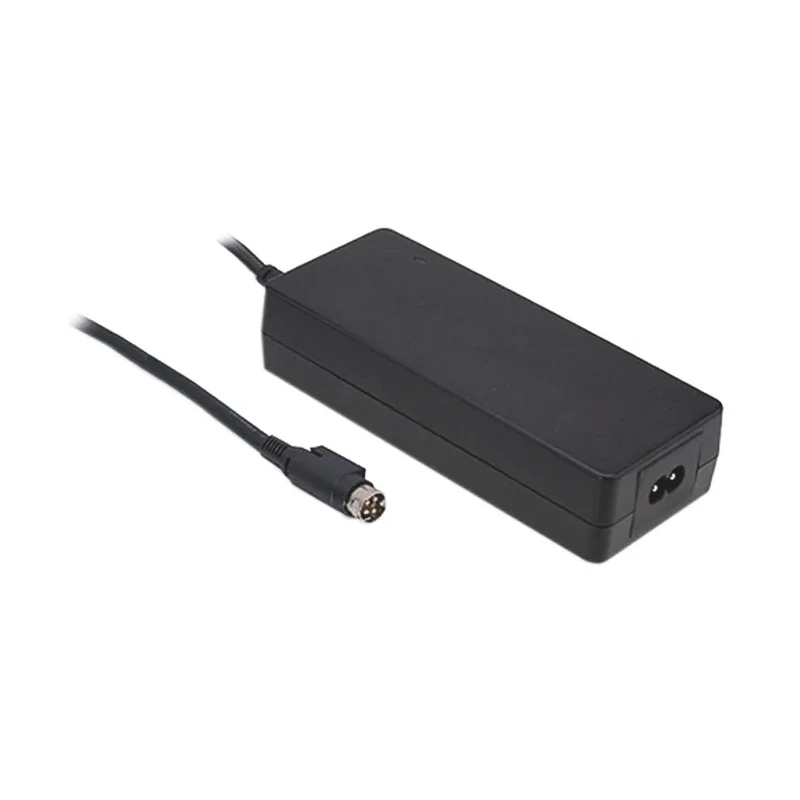

MEAN WELL AC/DC Adapter 120W Single Output Switch Mode Desktop Power Supply 7A 15V DC C8 Plug GSM120B15-R7B

MEAN WELL GSM120B15-R7B AC/DC Adapter is a 120W ErP single output switch mode desktop power supply designed for reliable performance in medical and other precision applications. It delivers 7A of output current at 15V DC, powered by a wide input voltage range from 80 to 264VAC, and features a IEC 320-C8 plug for AC input.

This model complies with international medical safety standards IEC60601-1 3rd edition providing 2 x MOPP insulation, ensuring low leakage current below 100μA, making it especially suitable for patient contact and home healthcare devices. Its high efficiency of up to 91.5% coupled with a low no-load power consumption under 0.15W meets energy saving regulations including ErP step 2 (Level V) and EISA 2007.

The fanless cooling design utilizes free air convection, allowing operation in ambient temperatures from -30°C up to +60°C for extended reliability without mechanical noise or wear. The fully enclosed UL 94V-0 flame retardant plastic case complies with Class II equipment standards, eliminating the need for earth grounding and enhancing electrical safety.

Robust protection circuits effectively guard against short circuit, overload, over voltage, and over temperature conditions. This adapter is ideal for powering medical diagnostic devices, portable medical instrumentation, as well as other electrical systems where low power consumption and high safety are essential.

High efficiency up to 91.5% reduces energy loss and heat generation. Low leakage current less than 100μA ensures patient safety. Wide input voltage range of 80-264VAC accommodates global power sources. Fanless, convection cooled design for silent operation and high reliability.

Meets multiple international safety standards including UL, CUL, TUV, CB, FCC, and CE. Compact and lightweight design with dimensions 167mm x 67mm x 35mm. LED indicator confirms power on status. Optional locking DC plug prevents accidental disconnections.

MEAN WELL is a globally recognized brand for power supply solutions, and the GSM120B15-R7B model is part of their GSM120B series that caters to medical applications with high performance and compliance. For industrial and laboratory applications requiring dependable and efficient AC/DC power conversion, this adapter offers an ideal solution.

Explore EnvMart’s extensive selection of MEAN WELL power supplies and AC/DC Adapters for reliable performance in medical, industrial, and commercial environments.
