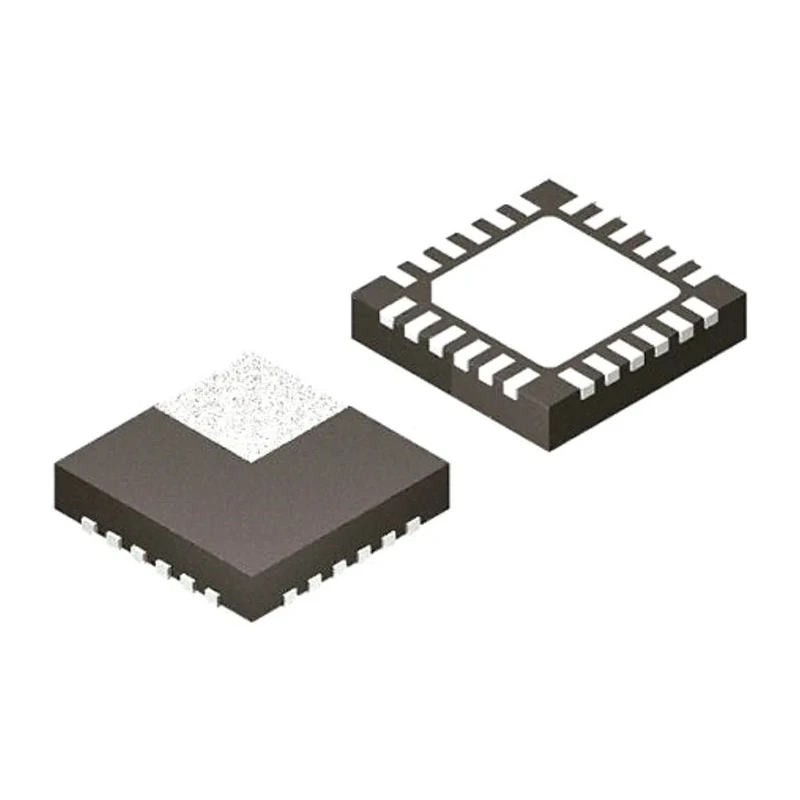

Microchip USB Transceiver USB3317C-CP-TR, 1-Channel, USB 2.0, 3.3V Supply, 24-Pin QFN USB3317C-CP-TR

Free Delivery in India | Lowest Global Shipping Charges

Microchip USB Transceiver USB3317C-CP-TR, 1-Channel, USB 2.0, 3.3V Supply, 24-Pin QFN USB3317C-CP-TR

Name: Microchip USB Transceiver USB3317C-CP-TR, 1-Channel, USB 2.0, 3.3V Supply, 24-Pin QFN USB3317C-CP-TR
Brand: Microchip
SKU: 378262
Price: 20.22 USD
Availability: InStock



Category USB Interface IC Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	950μm
Length	4.15mm
Model	USB3317C-CP-TR
Mount Type	Surface
Series	USB3317
Maximum Operating Temperature	85°C
Package Type	QFN
Sub Type	Transceiver
Minimum Operating Temperature	-40°C
Pin Count	24
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.8V
Number of Transceivers	1
USB Specification	USB 2.0
Supported Protocols	USB 2.0
Microchip, USB Transceiver, 1-Channel, 3.3V, USB 2.0, 1.8 V, 24-Pin QFNBrand	Microchip

Key Features

Supports USB 2.0 protocol for reliable data communication.
Features a single USB transceiver channel in a compact QFN package.
Operates with supply voltage from 1.8V minimum up to 3.3V maximum.
Provides ESD protection to safeguard device integrity.
Designed for surface mounting on printed circuit boards.
Operating temperature range from -40°C to 85°C suits industrial applications.
Pin count is 24 pins, accommodating complex interface requirements.

Product Description

Microchip USB3317C-CP-TR is a robust USB transceiver designed to support USB 2.0 standards, providing a reliable hardware interface for USB host and device ports. It features a single channel USB transceiver integrated into a compact 24-pin QFN package suitable for surface mount technology on printed circuit boards. This transceiver operates on a power supply range of 1.8 V minimum to 3.3 V maximum, providing compatibility with a variety of USB power configurations.

The device offers electrostatic discharge (ESD) protection ensuring enhanced durability and device safety in industrial and commercial environments. Its operating temperature range from -40°C to 85°C qualifies it for demanding industrial and ambient conditions. The 4.15 mm length and 950 µm height provide a compact footprint enabling high-density circuit layouts.

Designed to comply with USB 2.0 communication protocols, it is suitable for use in embedded systems, industrial automation, and consumer electronics requiring USB connectivity. The 24-pin QFN package supports high-performance data transfer with minimized signal interference.

Supports USB 2.0 protocol for reliable data communication. Single channel USB transceiver in a 24-pin QFN surface mount package. Wide operating temperature range from -40°C to 85°C. Supply voltage operation from 1.8 V to 3.3 V.

Includes ESD protection for device stability. Compact size with 4.15 mm length and 950 µm height. Suitable for industrial, embedded, and commercial USB interface applications.

This Microchip USB transceiver integrates seamlessly into USB host and device boards, facilitating high-speed USB 2.0 data communication. It is ideal for use in industrial controls, laboratory equipment, consumer electronics, and embedded computing solutions.
