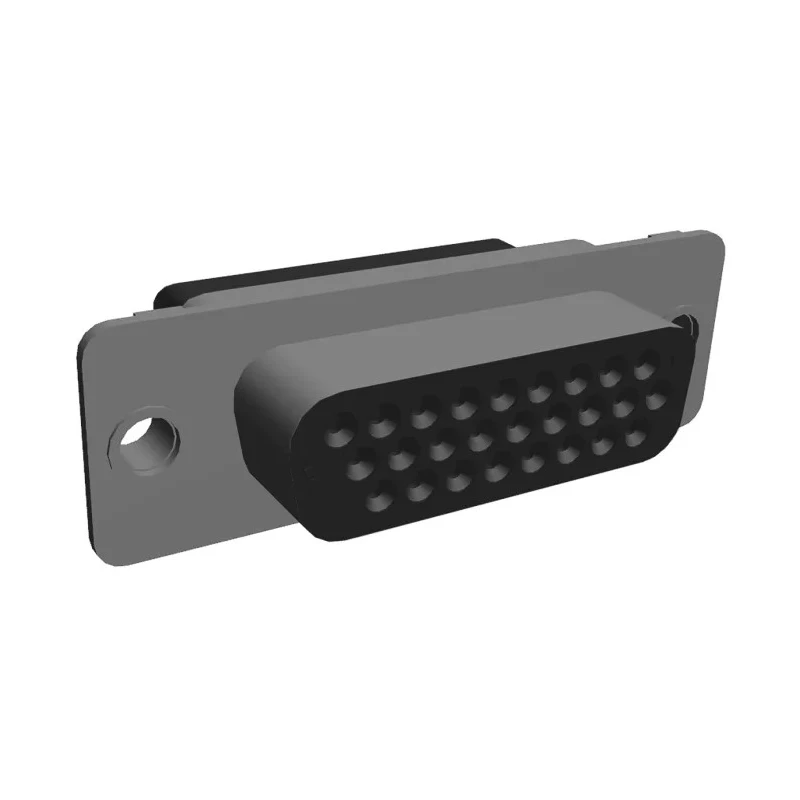

TE Connectivity High Density HDP-22 26 Way Straight Cable D-Sub Connector Female 250V 105°C 5788816-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Cable |
| Series | HDP-22 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 22 |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-2 |
Key Features
- This connector features 26 contacts for dense interconnections.
- Designed with a straight orientation and cable mount type for direct cable termination.
- Connector features a tin-plated steel shell with a 94V0 black thermoplastic insert.
- Termination type is crimp with female contact gender for secure connections.
- Suitable for industrial, military, and commercial applications requiring compact, reliable connections.
- Operation temperature ranges from -55°C to 105°C ensuring durability in harsh environments.
- Complies with RoHS standards, ensuring environmental safety.
- Compatible with any size 22 D-sub connector dimensionally compliant to MIL-C-C24303.
Product Description
TE Connectivity 5788816-1 HDP-22 series is a high-density 26 way straight cable D-Sub female connector rated at 250V and capable of operating between -55°C and 105°C. This connector is designed to deliver increased contact density compared to standard HD-20 connectors, approximately 65% higher, enabling space-saving and efficient connector solutions.
The product features a tin-plated steel shell and a black 94V0 thermoplastic insert, providing both durability and flame retardant properties. The crimp termination type with female contact gender ensures robust and reliable cable connections.
The high-density design makes it suitable for applications requiring a large number of contacts in a compact form, such as in military, industrial, and commercial electronic hardware and computer interfacing systems.
Its compatibility with size 22 D-sub connectors compliant with MIL-C-C24303 specifications guarantees interchangeability and system flexibility. Operable across a wide temperature range and compliant with RoHS standards, it meets environmental and industry safety requirements.
Package contents include one TE Connectivity HDP-22 26 way straight cable D-Sub female connector as per model 5788816-1. This connector provides 26 female contacts for high-density signal transmission. Designed with a straight cable mount for ease of installation.
Durable tin-plated steel shell offers corrosion resistance. 94V0 black thermoplastic insert meets strict flame retardant standards. Crimp termination technology ensures secure cable connections. Wide operating temperature range suitable for harsh environments.
RoHS compliant ensuring minimal environmental impact. Compatible with MIL-C-C24303 D-sub connectors ensuring broad applicability.
This TE Connectivity HDP-22 D-Sub Connector is ideal for industrial, electronic, military, and computer interfacing applications. Explore more connectors and related components to suit your technical requirements with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 250V, making it suitable for various electrical applications.
It operates within a temperature range of -55°C to 105°C, allowing it to function in harsh environments.
This connector features 26 contacts, providing high-density interconnections.
It utilizes a crimp termination type, ensuring secure and reliable cable connections.
Yes, it complies with RoHS standards, ensuring minimal environmental impact.
The connector features a tin-plated steel shell and a 94V0 black thermoplastic insert, providing durability and flame retardant properties.
It has a straight orientation and is designed for cable mount type, allowing for direct cable termination.
The contact size is 22, which is compatible with size 22 D-sub connectors.
It is suitable for industrial, military, and commercial applications requiring compact and reliable connections.
The D-Sub shell size is DS-2, which is a standard size for high-density connectors.
Yes, it is compatible with any size 22 D-sub connector that is dimensionally compliant with MIL-C-C24303 specifications.
The connector is manufactured in India, ensuring quality in production.
