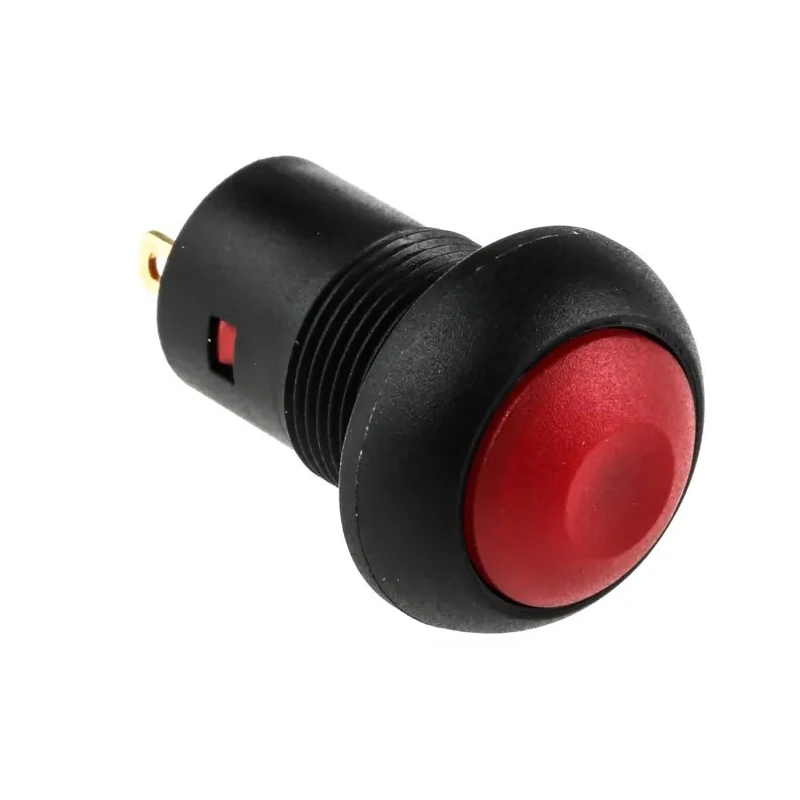

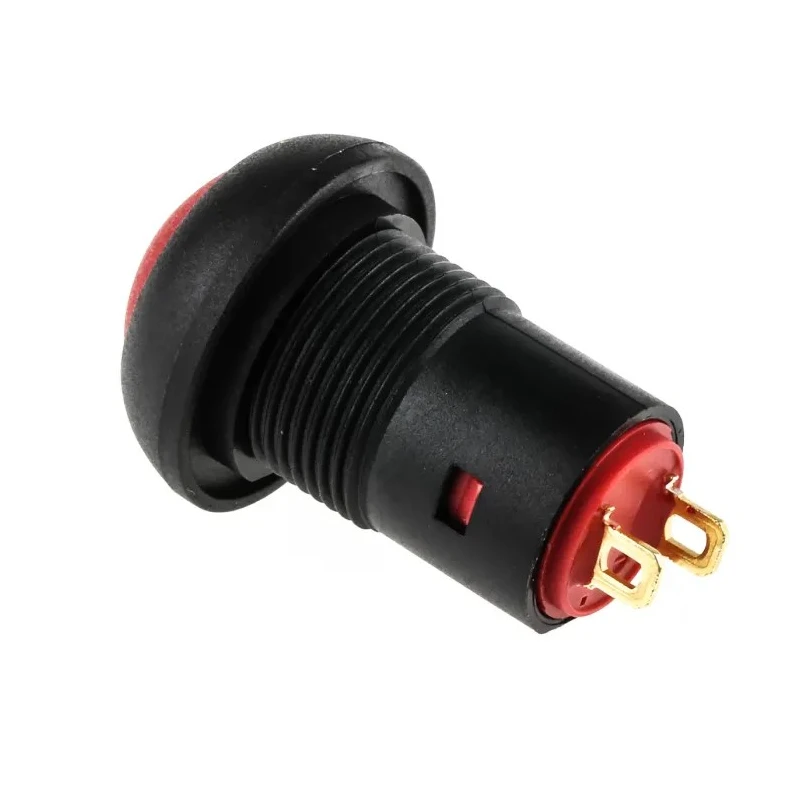

RS PRO Miniature Push Button Switch with Latching Operation, PCB Mount, 13.6 mm Cutout, SPST, Red LED, IP67, 24 V dc 8207543P

RS PRO 8207543P miniature push button switch with latching operation offers precise control for industrial and automation applications. It is designed for PCB mounting with a 13.6 mm panel cutout ensuring easy installation in electronic assemblies.

The switch uses a single pole single throw (SPST) contact configuration, operated via a red cap actuator providing clear status indication. The built-in red LED enhances visibility, and the switch is illuminated, compatible with 24 V dc systems typical in control circuits.

With a robust IP67 ingress protection rating, the switch resists dust and ingress of water, making it suitable for harsh environments such as test equipment setups, telecommunications devices, networking hardware, and various handheld appliances.

The actuator is constructed from high-quality Polyamide 6/6 material, with gold over silver plated contacts to ensure low resistance and durability. The mechanical life rated at 1,000,000 cycles and operating force between 2N-5N delivers reliable tactile feedback for operators.

This sub-miniature push button switch also allows solder lug termination, with soldering capability up to 350°C for 5 seconds, ensuring secure PCB connections during manufacturing processes.

The actuator color is red for visibility in control panels. The switch operation is latching, providing on/off switch functionality. Panel cutout size is 13.6 mm for compatibility with standard mounting. Mount type is PCB, suitable for direct circuit board integration.

Contact configuration is SPST for simple circuit control. Terminal type is solder lug for reliable connections. LED color is red, aiding status indication. Ingress Protection rating IP67, dust tight and waterproof. Maximum operating temperature is 85°C, suitable for various industrial environments.

Mechanical life exceeds 1 million operations for extended durability.

This product is ideal for industrial, laboratory, manufacturing, telecommunications, and automated equipment applications. RS PRO brand products undergo rigorous quality standards to ensure performance and reliability.
