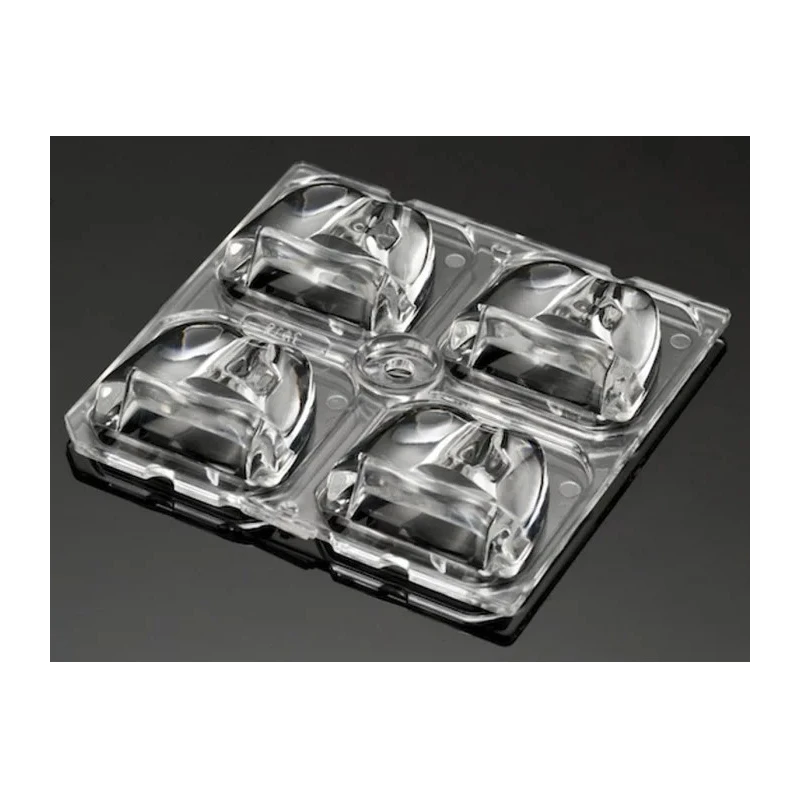

Ledil Strada-Module Series 4-Way LED Lens Street Lighting Beam C12419_STRADA-2X2-A-T

Ledil C12419_STRADA-2X2-A-T is a high-quality 4-way LED lens module from the Strada-Module Series designed specifically for street lighting applications. The module integrates four rectangular lenses within a compact 50 mm by 50 mm array, optimizing light distribution for various LED chip types such as Cree XM-L, OSRAM OSLON Square PC, and Lumileds LUXEON Rebel ES.

Manufactured from optical grade Polymethyl Methacrylate (PMMA), the lens offers excellent UV and temperature resistance, making it suitable for prolonged outdoor use. The clear lens design enhances light transmission while maintaining durability against environmental factors. Its precise height of 7.3 mm ensures compatibility with standard LED fixtures.

The Strada 2x2 lens modules provide cost efficiency by consolidating four individual lenses into one integrated unit, simplifying installation with a central mounting hole and four additional screws for secure attachment when used in series. This setup facilitates enhanced sealing and robustness, essential for outdoor street lighting conditions.

These lenses are optimized for street lighting emission patterns, ensuring efficient illumination of roads, street lamps, and large warehouse aisles. Their design aids in achieving uniform light distribution with high luminous intensity.

Installation involves using positioning pins and adhesive materials to secure the lens in place, ensuring optimal performance and stability. Features a 4-lens module arranged in a single 50 mm square array. Constructed from optical grade Polymethyl Methacrylate for high UV and temperature resistance.

Compatible with various LEDs including Cree XM-L and OSRAM OSLON Square PC. Offers improved sealing and cost efficiency compared to individual lenses. Includes mounting hole in the centre and four additional screw holes for secure installation.

Lens is rectangular and clear with precise dimensions of 50 mm length, width, and 7.3 mm height. Optimized for street lighting emission pattern for effective illumination. Designed for use in street lamps, road lighting, and warehouse aisle lighting applications.

Easy to mount using positioning pins and glue, ensuring reliable fixture.

This advanced LED lens solution by Ledil fits perfectly within industrial lighting requirements and offers a reliable option for commercial and municipal lighting projects. Discover more options in the LED Lenses & Reflectors category on EnvMart for your next lighting design.
